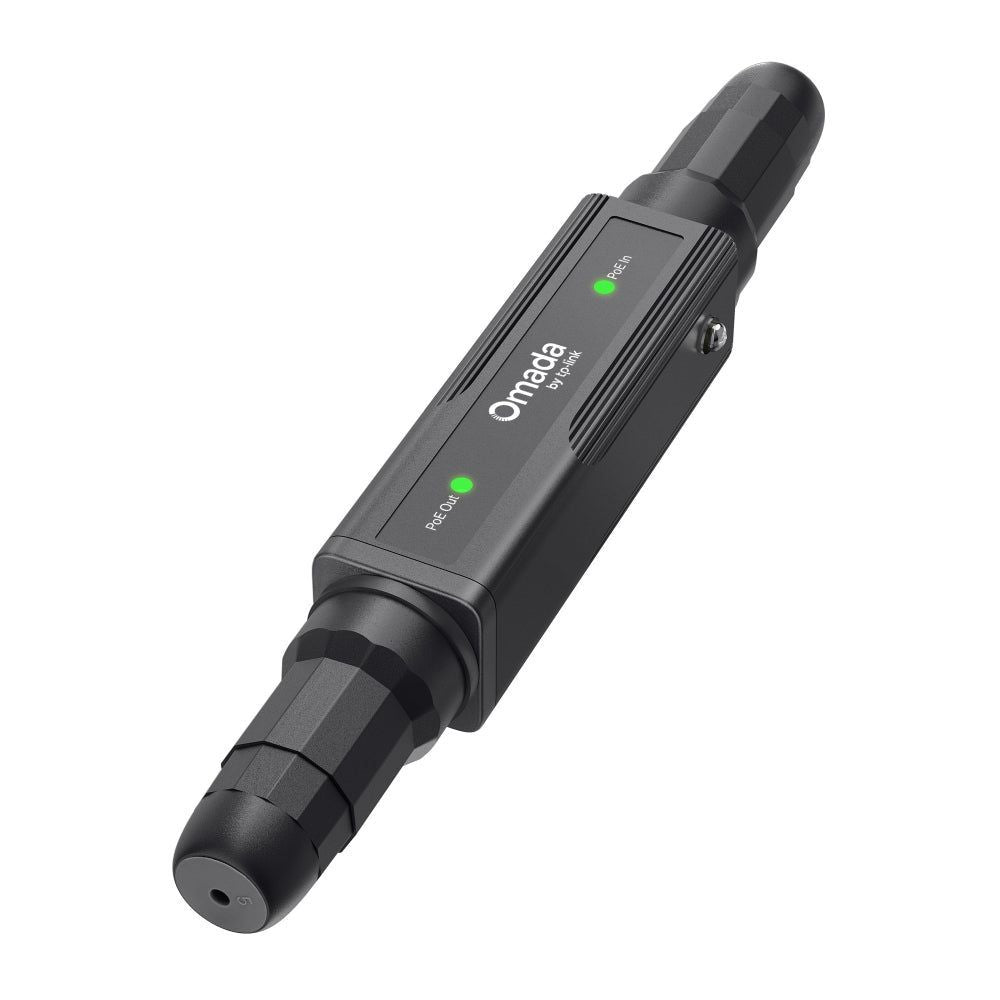

Omada PoE+ Extender

2× 10/100/1000 Mbps RJ45 ports
Compliance with 802.3af/at devices
Supplies up to 30 W, which meets the power consumption requirements of most IP cameras
Extends a PoE/PoE+ network connection to 200 m (100 m+100 m)/500 m (250 m+250 m)* from the PoE power sourcing equipment
Outdoor Weatherproof: IP68 dust &water proof; Wide operation temperatures of -40 to 65 °C and 6KV lightning protection further ensure stable operation against harsh outdoor conditions.
Plug-and-Play, requires no configure

The POE20E-Outdoor is a rugged Gigabit PoE+ Extender engineered to overcome network distance limitations in demanding outdoor environments. It seamlessly extends both data and power an additional 100 meters at full Gigabit speeds, delivering up to 30W of 802.3af/at compliant PoE+ to power devices like IP cameras and access points. Built for ultimate reliability, its IP68-rated weatherproof enclosure and an wide operating temperature range of -40°C to 65°C ensure flawless performance in any weather. Offering simple Plug-and-Play installation and an extended range of up to 250m* for lower-speed applications, the POE20E-Outdoor is the ideal solution for deploying surveillance and network hardware in remote locations where power and distance are a challenge.

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
Interface	• 1× 10/100/1000 Mbps Auto-Negotiation RJ45 • 1× 10/100/1000 Mbps Auto-Negotiation RJ45
Network Media	•10BASE-T: 2-pair UTP/STP (≤250m) of Cat. 3 or above •100BASE-TX: 2-pair UTP/STP (≤100m) of Cat. 5 or above •1000BASE-T: 4-pair UTP/STP (≤100m) of Cat. 5e or above
Max. Power Consumption	• Output: 30W
LED	2× Link/Act
Dimensions ( W x D x H )	221.7 × 31 × 31.5mm (8.73 × 1.22 × 1.24 in)
Weatherproof Enclosure	IP68

OTHERS
Certification	CE, FCC, BSMI, KC
Package Content	• POE20E-Outdoor • Waterproofing Components • Ground Wire • Installation Guide
Lightning Protection	6kV
Environment	• Operating Temperature: -40°C to 65°C (-40°F to 149°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 15% to 90% RH non-condensing • Storage Humidity: 15% to 90% RH non-condensing

Warranty

Brand

TP-LINK

Restock ETA (if applicable)

Product Details

Specifications

TP-LINK
HeadingTP-Link POE20E-Outdoor, Omada PoE+ Extender

Description

Omada PoE+ Extender

2× 10/100/1000 Mbps RJ45 ports
Compliance with 802.3af/at devices
Supplies up to 30 W, which meets the power consumption requirements of most IP cameras
Extends a PoE/PoE+ network connection to 200 m (100 m+100 m)/500 m (250 m+250 m)* from the PoE power sourcing equipment
Outdoor Weatherproof: IP68 dust &water proof; Wide operation temperatures of -40 to 65 °C and 6KV lightning protection further ensure stable operation against harsh outdoor conditions.
Plug-and-Play, requires no configure

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
Interface	• 1× 10/100/1000 Mbps Auto-Negotiation RJ45 • 1× 10/100/1000 Mbps Auto-Negotiation RJ45
Network Media	•10BASE-T: 2-pair UTP/STP (≤250m) of Cat. 3 or above •100BASE-TX: 2-pair UTP/STP (≤100m) of Cat. 5 or above •1000BASE-T: 4-pair UTP/STP (≤100m) of Cat. 5e or above
Max. Power Consumption	• Output: 30W
LED	2× Link/Act
Dimensions ( W x D x H )	221.7 × 31 × 31.5mm (8.73 × 1.22 × 1.24 in)
Weatherproof Enclosure	IP68

OTHERS
Certification	CE, FCC, BSMI, KC
Package Content	• POE20E-Outdoor • Waterproofing Components • Ground Wire • Installation Guide
Lightning Protection	6kV
Environment	• Operating Temperature: -40°C to 65°C (-40°F to 149°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 15% to 90% RH non-condensing • Storage Humidity: 15% to 90% RH non-condensing
