Name: TP-Link MC211CS-20 Omada Gigabit WDM Media Converter
Brand: TP-Link
SKU: TL-MC211CS-20
Price: 66.24 NZD
Availability: OutOfStock

TP-Link MC211CS-20 Omada Gigabit WDM Media Converter Default Title

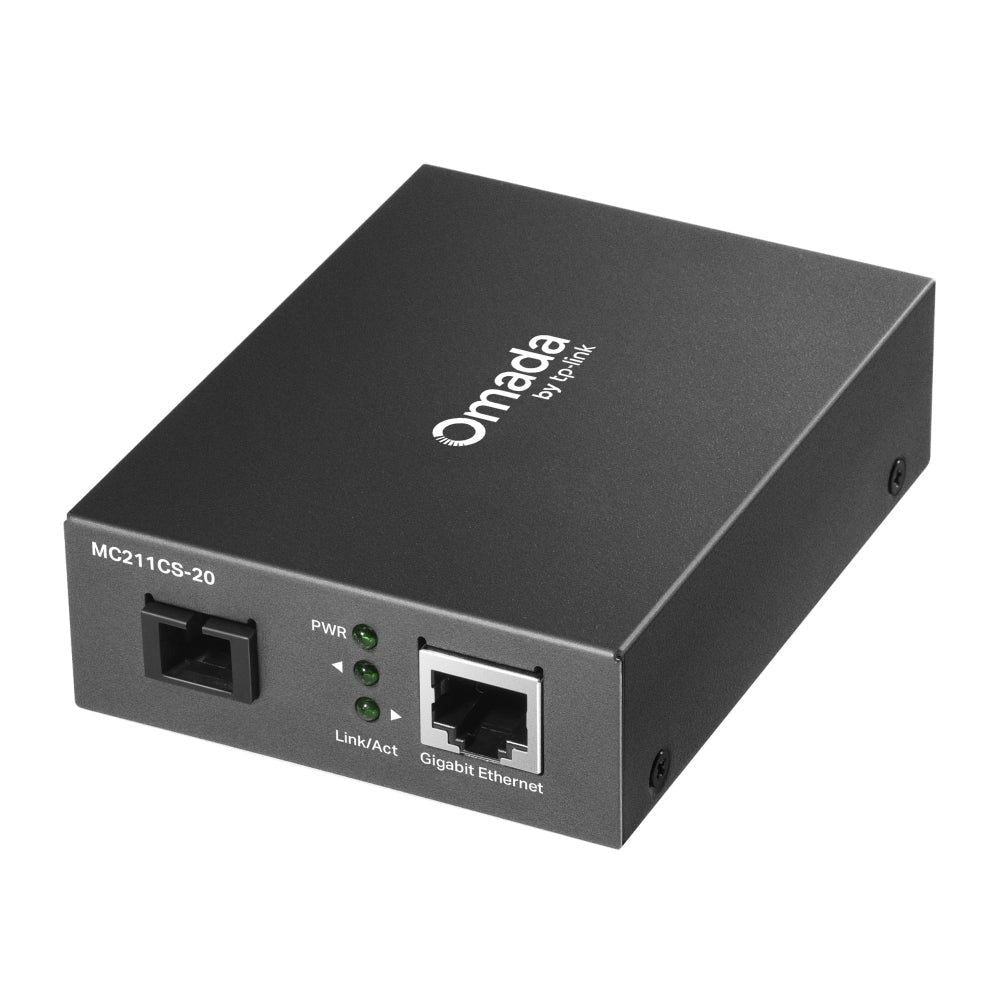

TP-Link MC211CS-20 Omada Gigabit WDM Media Converter

TP-Link MC211CS-20 Omada Gigabit WDM Media Converter

TL-MC211CS-20

$66.24

Tax included.

Out of stock

Select quantity

Description

• 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX

• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode

• Adopts WDM technology, transmitting and receiving data on one single fiber

• Extends fiber distance up to 20 km

MC211CS-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

NETWORK
Standards and Protocols	IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z

HARDWARE FEATURES
Interface	• 1× Gigabit SC/UPC Fiber Port • 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
Power Supply	External Power Adapter: 9 V/0.6 A
LED	PWR, Link/Act
Wave Length	1310 nm TX, 1550 nm RX
Dimensions ( W x D x H )	94.5x73x27 mm (37.2x28.7x10.6 in)

ENVIRONMENT
Operating Temperature	-5˚C to 50˚C (23˚F to 122˚F)
Storage Temperature	-40˚C to 70˚C (-40˚F to 158˚F)
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% RH non-condensing

OTHERS
Package Content	• Media Converter MC212CS-20 • Power Adapter • Installation Guide
