1000Base-LX SMF Industrial SFP Module

Single-mode SFP LC Transceiver
Supports Digital Diagnostic Monitoring (DDM)
Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
Hot-Pluggable with maximum flexibility
Industrial Product Operating Temperature Range: -40-85°C

What This Product Does

ISM311LS is an industrial SFP Module introduced for extending transfer distance. Attached to our industrial switches, ISM311LS can extend the distance to 20km. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.

Transceiver
Standards and Protocols	IEEE 802.3z,TCP/IP
Wave Length	1310 nm
Power Supply	3.3V
Fiber Type	9/125 µm Single-mode
Max. Cable Length	20 km
Data Rate	1.25 Gbps
Connector	LC Duplex
Regulatory Compliance	FCC, CE
Environment	• Operating Temperature: -40˚C~ 85˚C (-40˚F~ 185˚F) • Storage Temperature: -40℃~85℃ (-40˚F~ 185˚F) • Operating Humidity: 5%~85% non-condensing • Storage Humidity: 5%~85% non-condensing

HARDWARE FEATURES
DDM	Yes
SFP-MSA	Yes
Hot Swappable	Yes
Dimensions ( W x D x H )	2.20.5 0.4 in (56.413.411.0 mm)

Package Content
Package Content	• ISM311LS • Installation Guide

Warranty

Brand

TP-LINK

Restock ETA (if applicable)

Product Details

Specifications

TP-LINK

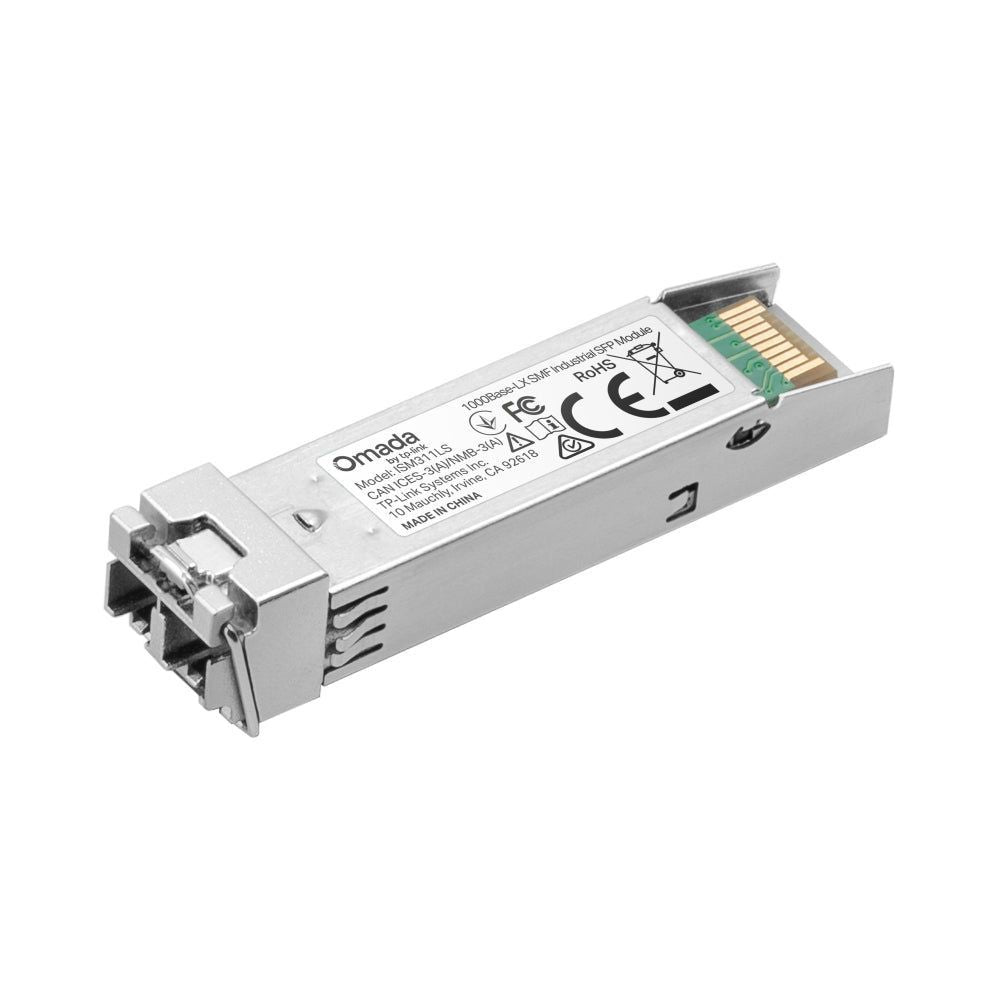

HeadingTP-Link ISM311LS 1000Base-LX SMF Industrial SFP Module

Description

1000Base-LX SMF Industrial SFP Module

Single-mode SFP LC Transceiver
Supports Digital Diagnostic Monitoring (DDM)
Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
Hot-Pluggable with maximum flexibility
Industrial Product Operating Temperature Range: -40-85°C

What This Product Does

Transceiver
Standards and Protocols	IEEE 802.3z,TCP/IP
Wave Length	1310 nm
Power Supply	3.3V
Fiber Type	9/125 µm Single-mode
Max. Cable Length	20 km
Data Rate	1.25 Gbps
Connector	LC Duplex
Regulatory Compliance	FCC, CE
Environment	• Operating Temperature: -40˚C~ 85˚C (-40˚F~ 185˚F) • Storage Temperature: -40℃~85℃ (-40˚F~ 185˚F) • Operating Humidity: 5%~85% non-condensing • Storage Humidity: 5%~85% non-condensing
