Omada 8-Port Gigabit Industrial Easy Managed Switch

8× Gigabit Ports (6× RJ45, 2× RJ45/SFP Combo)
Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
Abundant Features: VLAN, QoS, and STP/RSTP
Centralized Cloud Management via the Web or Omada App^†
Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design

HARDWARE FEATURES
Interface	• 6× 10/100/1000 Mbps RJ45 Ports • 2× Gigabit SFP/RJ45 Combo Slots • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless
Installation	• DIN-rail mounting • Wall mounting
Power Supply	9.6-60V 1+1 Redundant DC Power Input
Dimensions ( W x D x H )	5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm)
Surge Protection	• ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports

PERFORMANCE
Switching Capacity	16 Gbps
Packet Forwarding Rate	11.9 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB

SOFTWARE FEATURES
Quality of Service	• 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rate Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control
L2 Features	• Link Aggregation - Static Link Aggregation - Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w)
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward

Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Unified Configuration^†

OTHERS
Certification	FCC, CE, RoHS

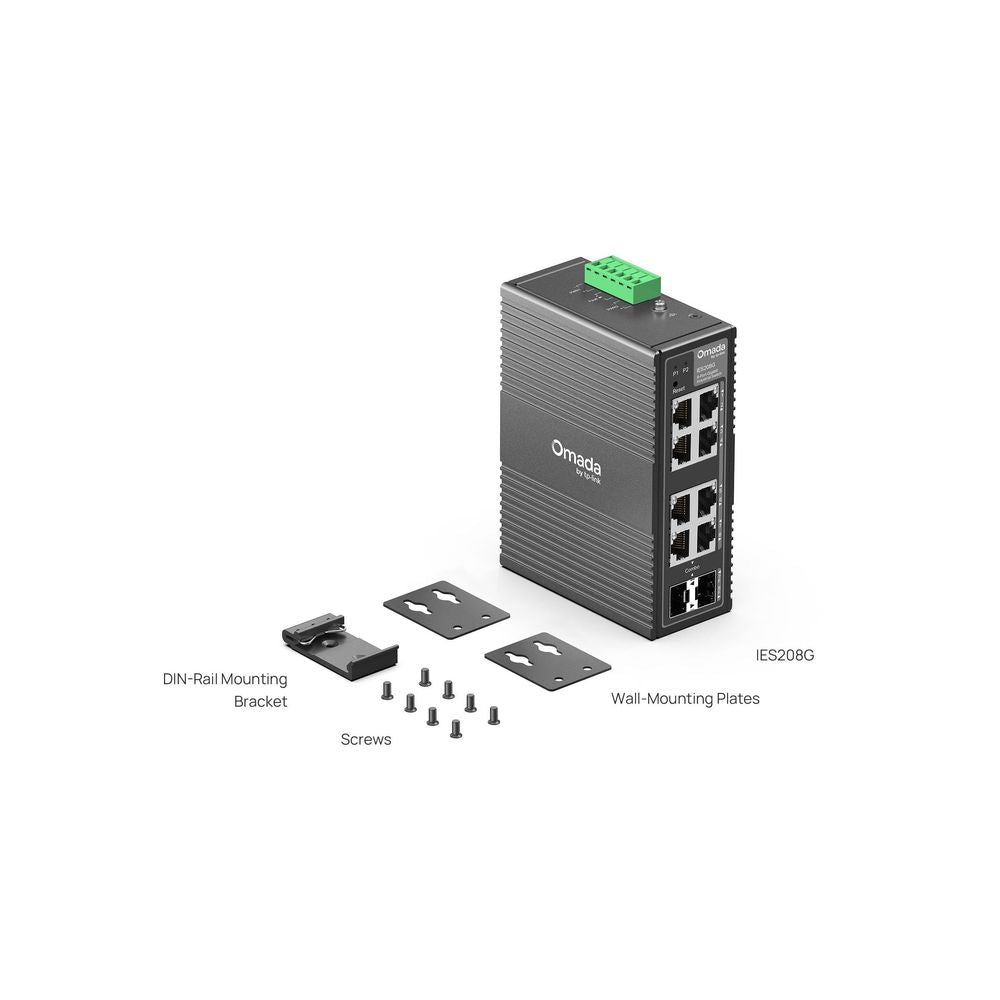

Package Content	• IES208G • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide
Environment	• Operating Temperature: -40℃~75℃ (-40℉~167℉) • Storage Temperature: -40℃~85℃ (-40℉~185℉) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing

Warranty

Brand

TP-LINK

Restock ETA (if applicable)

Product Details

Specifications

TP-LINK
HeadingTP-Link IES208G Omada 8-Port Gigabit Industrial Easy Managed Switch

Description

Omada 8-Port Gigabit Industrial Easy Managed Switch

8× Gigabit Ports (6× RJ45, 2× RJ45/SFP Combo)
Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
Abundant Features: VLAN, QoS, and STP/RSTP
Centralized Cloud Management via the Web or Omada App^†
Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design

HARDWARE FEATURES
Interface	• 6× 10/100/1000 Mbps RJ45 Ports • 2× Gigabit SFP/RJ45 Combo Slots • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless
Installation	• DIN-rail mounting • Wall mounting
Power Supply	9.6-60V 1+1 Redundant DC Power Input
Dimensions ( W x D x H )	5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm)
Surge Protection	• ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports

PERFORMANCE
Switching Capacity	16 Gbps
Packet Forwarding Rate	11.9 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB

SOFTWARE FEATURES
Quality of Service	• 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rate Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control
L2 Features	• Link Aggregation - Static Link Aggregation - Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w)
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward

Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Unified Configuration^†

OTHERS
Certification	FCC, CE, RoHS
Package Content	• IES208G • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide
Environment	• Operating Temperature: -40℃~75℃ (-40℉~167℉) • Storage Temperature: -40℃~85℃ (-40℉~185℉) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing
