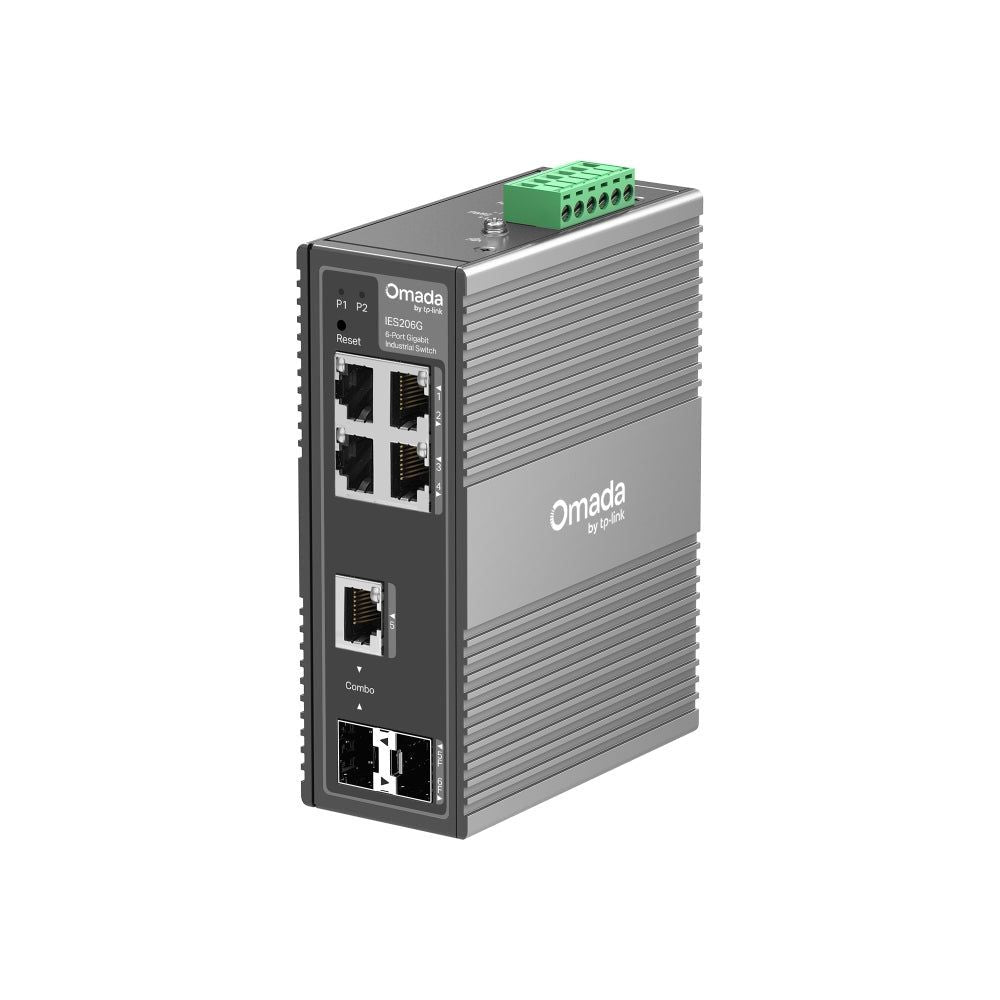

• 6× Gigabit Ports (4× RJ45, 1× Combo RJ45/SFP, 1×SFP)
• Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
• Abundant Features: VLAN, QoS, and STP/RSTP
• Centralized Cloud Management via the Web or Omada App^†

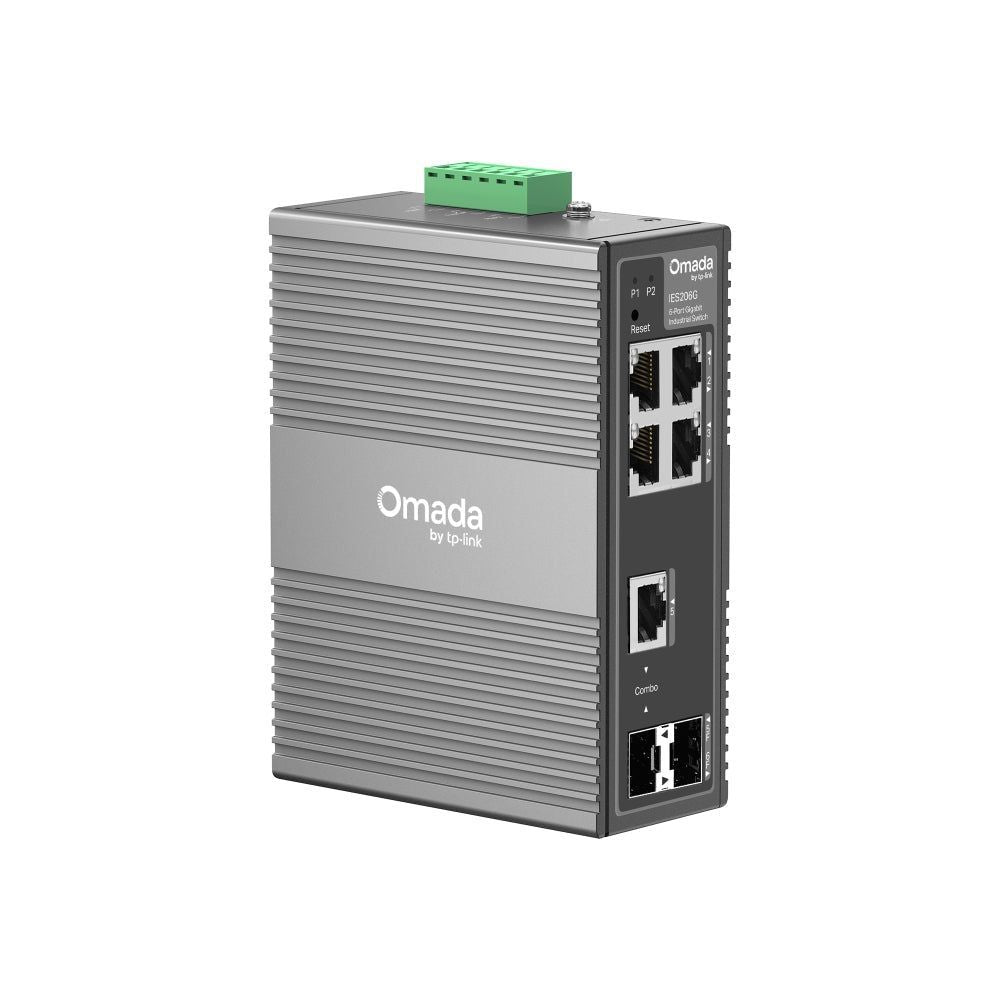

• Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design

HARDWARE FEATURES

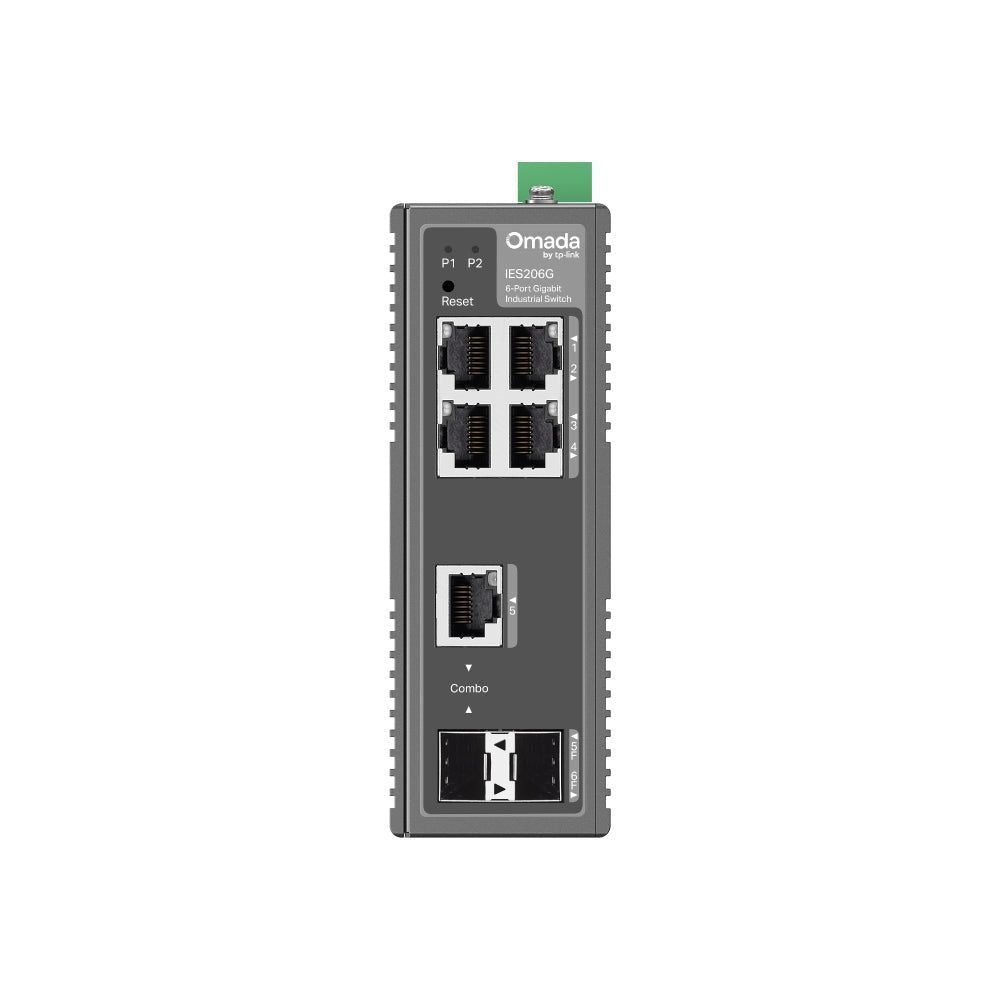

Interface

- 4× 10/100/1000 Mbps RJ45 Ports
- 1× Gigabit SFP/RJ45 Combo Slot
- 1× Gigabit SFP Slot
- Auto-Negotiation/Auto MDI/MDIX

Fan Quantity : Fanless

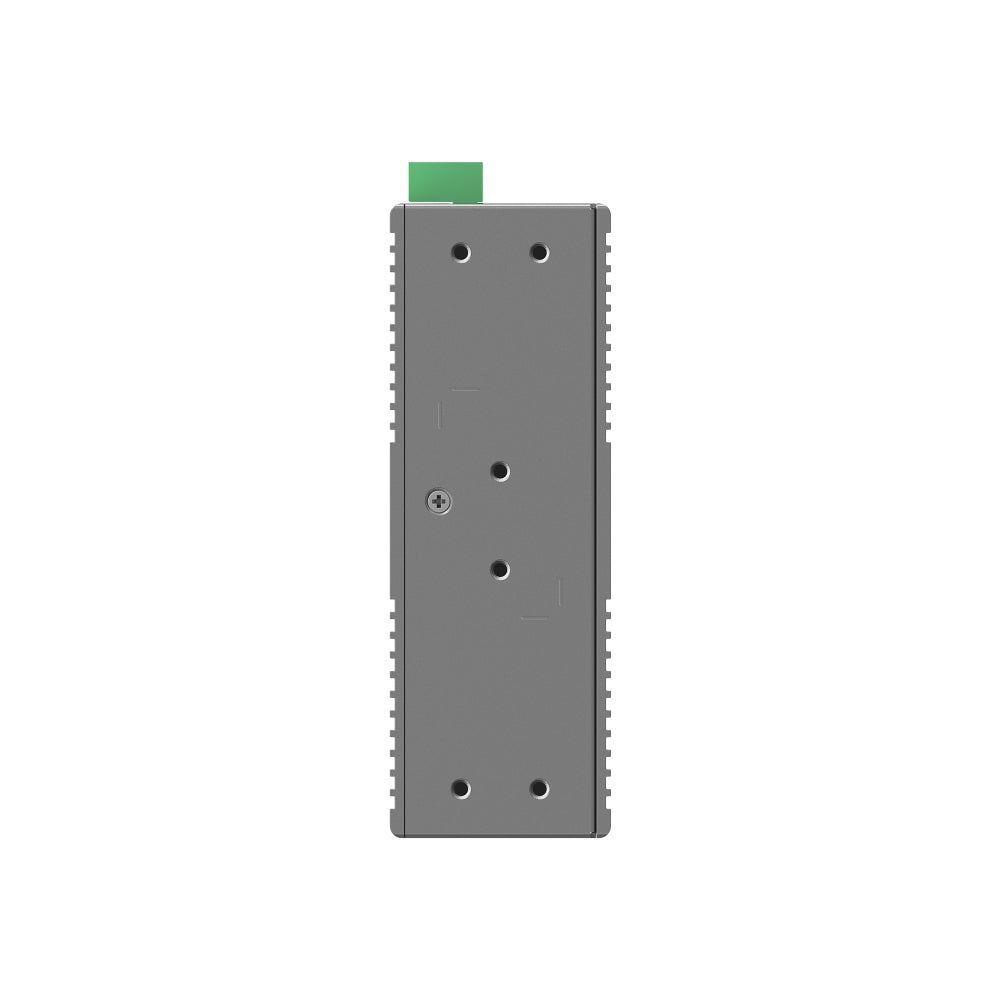

Installation

- DIN-rail mounting
- Wall mounting

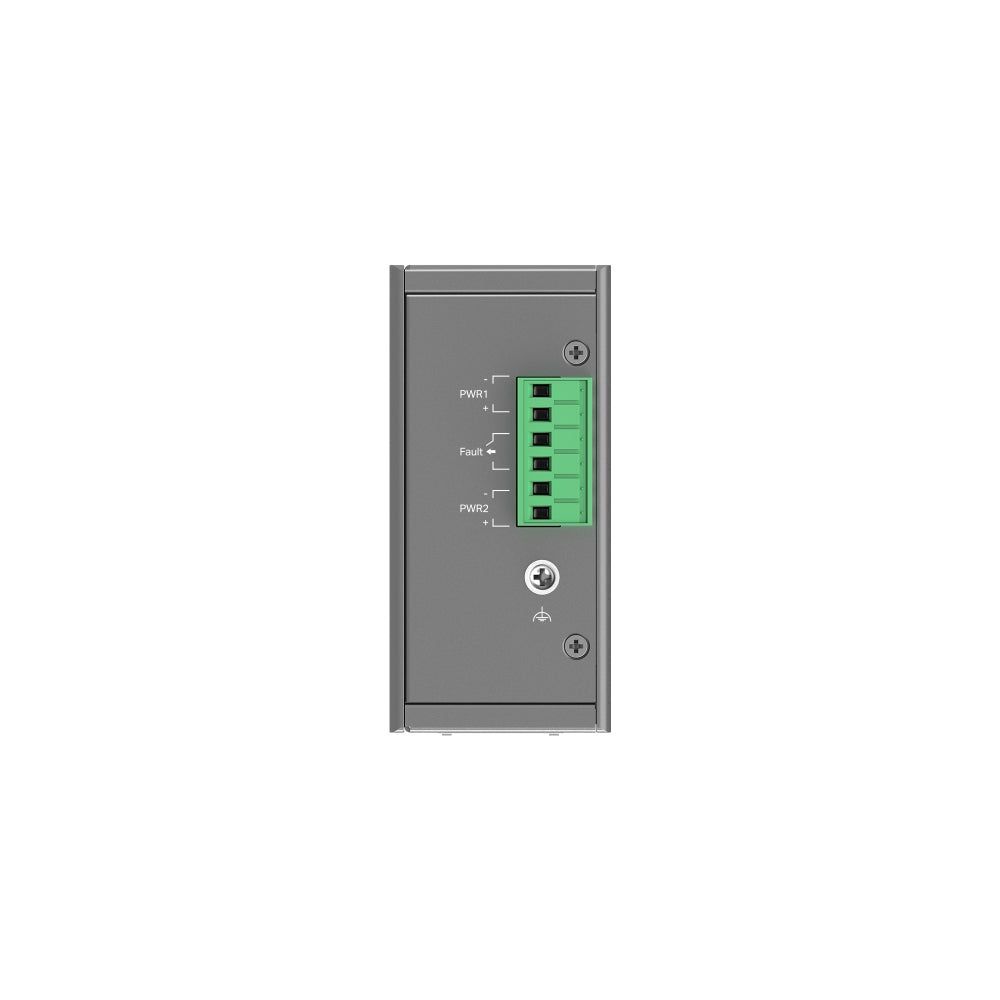

Power Supply : 9.6-60V 1+1 Redundant DC Power Input

Dimensions ( W x D x H ) : 5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm)

Surge Protection

- ±6 kV in common mode for Ethernet ports
- ±4 kV in common mode for DC power input ports

PERFORMANCE

Switching Capacity : 12 Gbps

Packet Forwarding Rate : 8.93 Mpps

MAC Address Table : 8K

Packet Buffer Memory : 4 Mbit

Jumbo Frame : 15 KB

SOFTWARE FEATURES

Quality of Service

- 802.1p DSCP Priority
- 8 Priority Queues
- Priority Schedule Mode
- WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control
- Port-Based Rate Limit
- Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control

L2 Features

-Link Aggregation
- Static Link Aggregation
- Up to 2 aggregation groups and up to 4 ports per group
- Loopback Detection
- Flow Control
- 802.3x Flow Control
- Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
- Port Statistics
- Port Mirror Status
- Traffic Statistics
- 802.1ab LLDP
- Spanning Tree
- STP (802.1d)
- RSTP (802.1w)

L2 Multicast

- IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave

VLAN

- MTU VLAN
- Port-Based VLAN
- 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID

Transmission Method : Store-And-Forward

Management Features

Omada App

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller

Cloud Access

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller

Management Features

- Web-based GUI
- DHCP Client
- Cable Diagnostics
- Digital Diagnostic Monitoring (DDM)
- Automatic Device Discovery†
- Batch Configuration†
- Batch Firmware Upgrading†
- Unified Configuration†

OTHERS

Certification

FCC, CE, RoHS

Package Content

- IES206G
- DIN-Rail Mounting Bracket
- Wall-Mounting Plates
- Installation Guide

Environment

- Operating Temperature: -40?~75? (-40?~167?)
- Storage Temperature: -40?~85? (-40?~185?)
- Operating Humidity: 5%~95% non-condensing
- Storage Humidity: 5%~95% non-condensing
