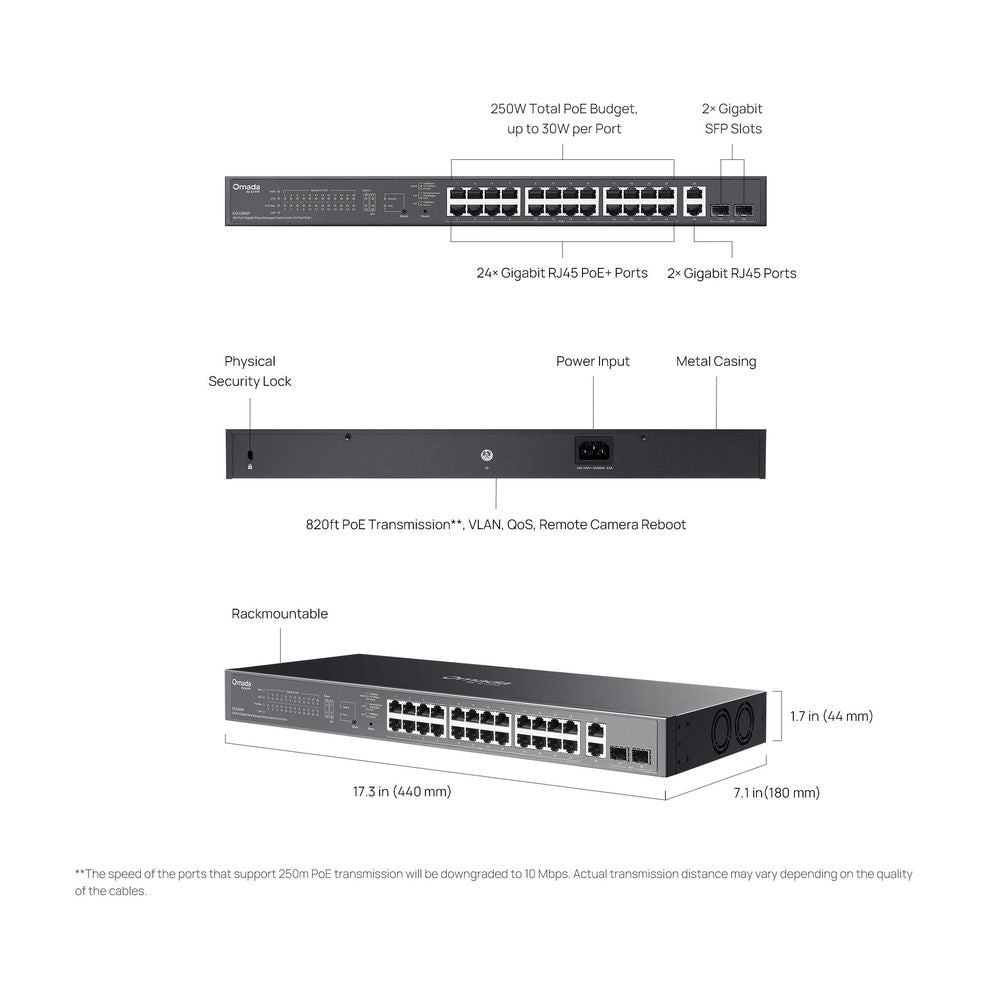

Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+

26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
2× Gigabit SFP Slots
250W PoE Budget, with up to 30W for each PoE port*
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralised Cloud Management via the web or the Omada app†
Up to 820ft PoE**, Remote Camera Reboot†, QoS, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Durable metal casing and rack mounting design

HARDWARE FEATURES
Interface	• 26× 10/100/1000 Mbps RJ45 Ports • 2× Gigabit SFP Slots • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	2
Installation	Desktop/Rackmount Installation
Physical Security Lock	√
Power Supply	100-240V~ 50/60Hz 4.0A
PoE Ports (RJ45)	• Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 24 ports • PoE Budget: 250W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery^‡ • Up to 250m PoE transmission distance**
Dimensions ( W x D x H )	17.3×7.1×1.7 in (440×180×44 mm)
Surge Protection	±6kV

PERFORMANCE
Switching Capacity	56 Gbps
Packet Forwarding Rate	41.67 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB

SOFTWARE FEATURES
Quality of Service	• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control^△
L2 Features	• Link Aggregation - Static Link Aggregation - Up to 4 aggregation groups and up to 8 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Trafffc Statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward

Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Unified Configuration^†

OTHERS
Certification	FCC, CE, RoHS

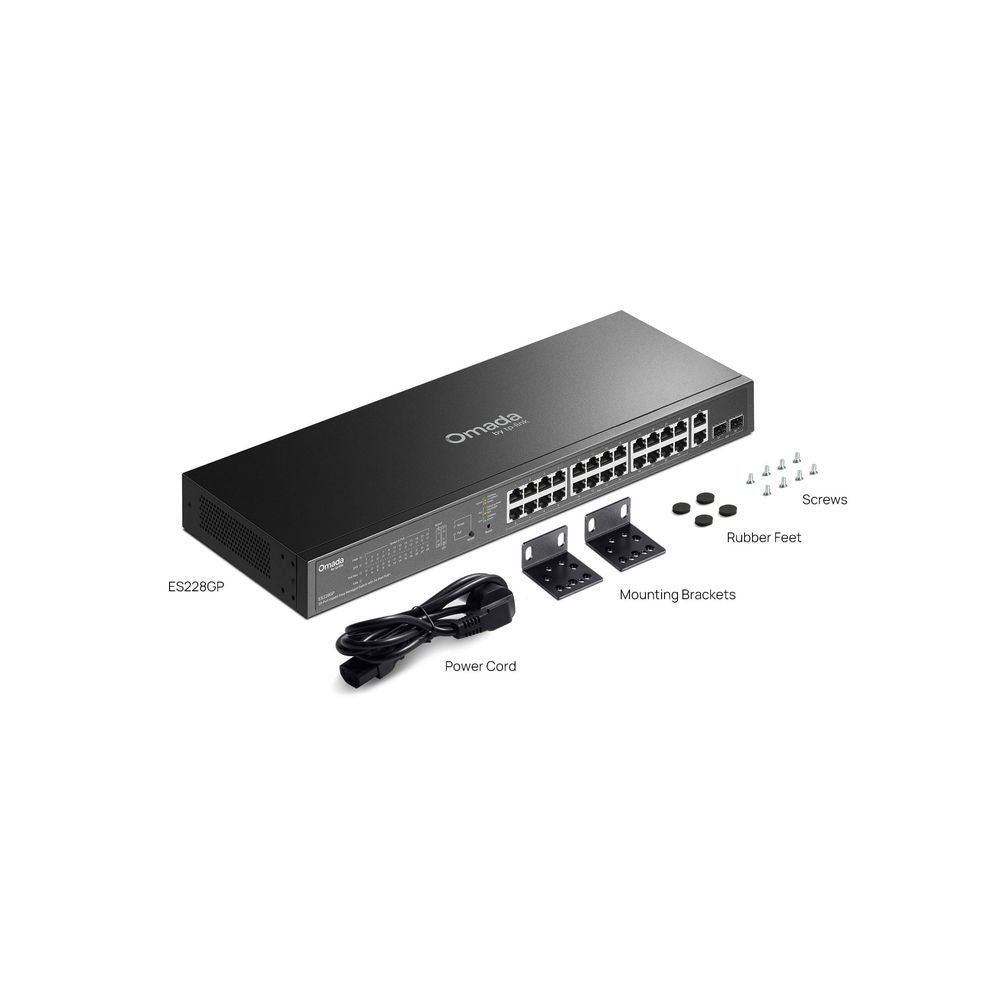

Package Content	• ES228GP • Power Cord • Mounting Brackets • Rubber Feet • Screws • Installation Guide
Environment	• Operating Temperature: -5℃~45℃ (23℉~113℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing

For additional version information, please go to the support page.

† These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of Omada Central (Omada Central Standard or Omada Central Essentials).

*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.

**When Extend Mode is enabled, the speed of ports that support 820ft (250m) PoE transmission will be downgraded to 10 Mbps. Actual transmission distance may vary depending on the quality of the cables. Speciffcations are subject to change without notice. All brands and product names are trademarks or registered trademarks of their respective holders. © 2025 TP-Link
