Name: TP-Link EAP775-Wall, BE9300 Wall Plate Wi-Fi 7 Access Point
Brand: TP-LINK
SKU: TL-EAP775-WALL
Price: 686.31 NZD
Availability: InStock

TP-Link EAP775-Wall, BE9300 Wall Plate Wi-Fi 7 Access Point Default Title

TP-Link EAP775-Wall, BE9300 Wall Plate Wi-Fi 7 Access Point

TP-Link EAP775-Wall, BE9300 Wall Plate Wi-Fi 7 Access Point

TL-EAP775-WALL

$686.31

Tax included.

9 items available

Select quantity

Description

EAP775-Wall

BE9300 Wall Plate Wi-Fi 7 Access Point

6-Stream Tri-Band Wi-Fi 7: 5765 Mbps on 6 GHz, 2882 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.^†

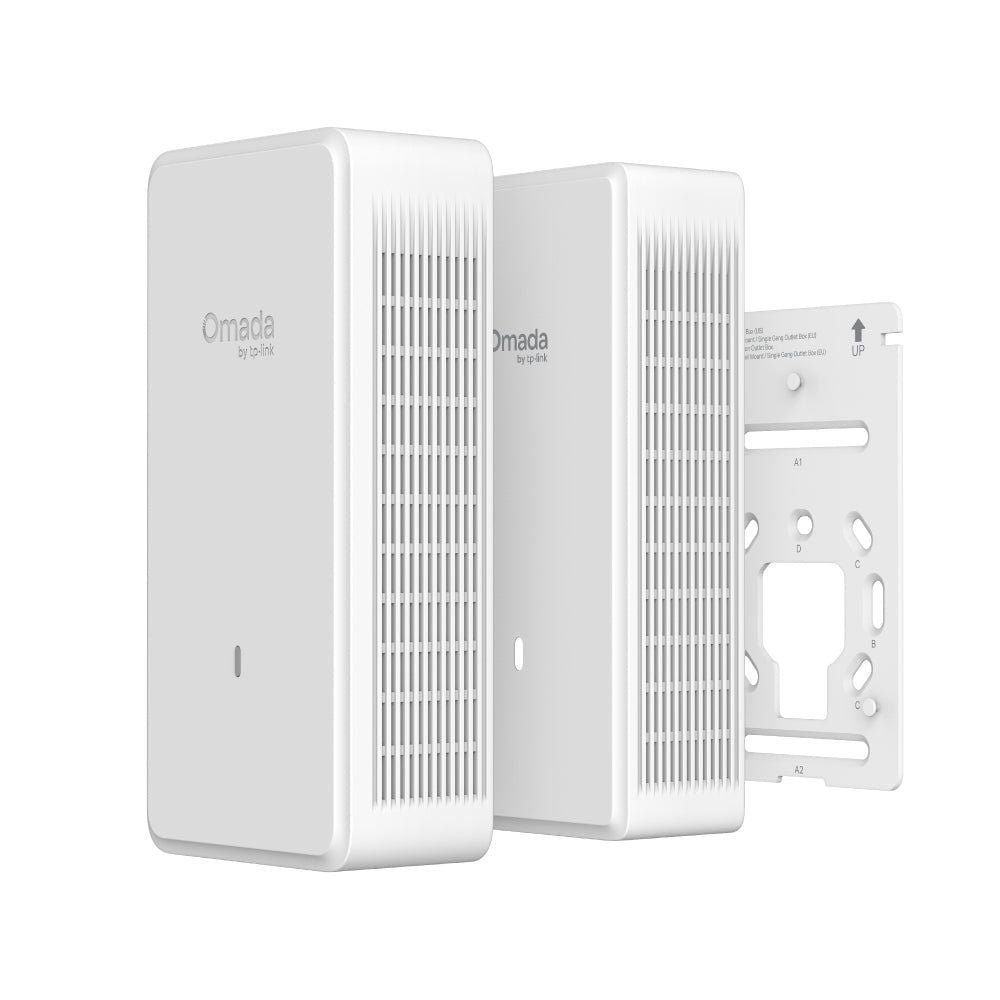

Flexible and Aesthetic Integration: Versatile mounting design with a paintable cover included for flexible integration.^§

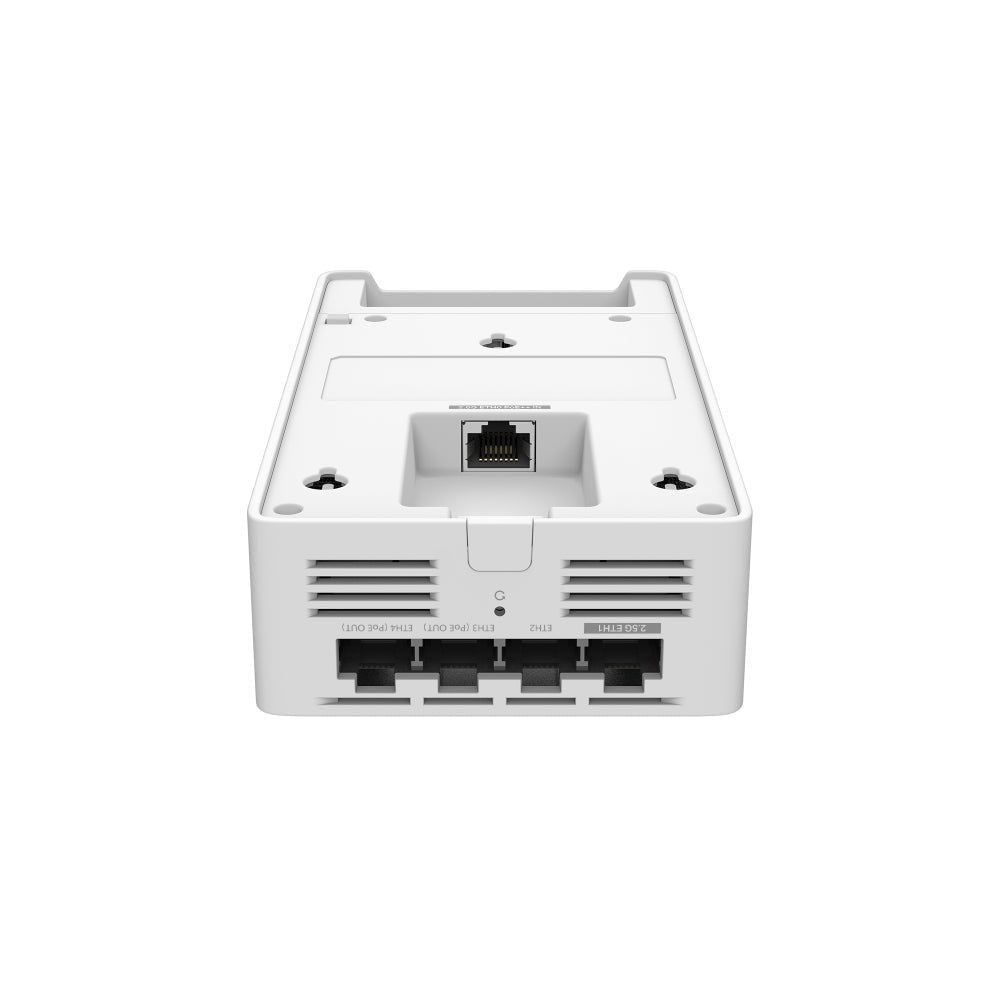

Multiple Ports with PoE Flexibility: 2× 2.5G Ports (1× PoE+/PoE++ In) + 3× Gigabit Ports (2× PoE Out or 1× PoE+ Out)
Low Latency and Interference: Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.^‡
Easy Setup, Easy to Use: Works with Omada SDN for one-click setup.
Advanced Features: Supports centralised cloud management, mesh, and seamless roaming.^△
Complete In-Room Wi-Fi with More Connections: Supports 380+ concurrent connections** and covers up to 1050 ft² (100 m²) * for reliable and extensive wireless connectivity.

Learn more about Omada Cloud SDN>

HARDWARE FEATURES
Interface	• Uplink: 1× 2.5G Ethernet Port • Downlink: 1× 2.5G Ethernet Port + 3× Gigabit Ethernet Ports (Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output.The PoE Out feature requires 802.3bt input.)
Physical Security Lock	Yes
Button	Reset
Power Supply	802.3at/bt PoE
PoE Out	Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output. The PoE Out feature requires 802.3bt input.
Max. Power Consumption	43.35W（with 25W PoE Out)
Dimensions ( W x D x H )	6.8 × 3.6 × 1.6 in (172.9 × 91.2 × 41.3 mm)
Antenna	6× Internal Antennas • 2.4 GHz: 2× 5 dBi • 5 GHz: 2× 5.5 dBi • 6 GHz: 2× 5.5 dBi
Bluetooth	V5.2
Mounting	Wall Mounting (Kits included)

WIRELESS FEATURES
Coverage	1050 ft² (100 m²)^*
Concurrent Clients	380+^**
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax/be
Frequency	2.4 GHz, 5 GHz, and 6 GHz
Signal Rate	• 6 GHz: Up to 5765 Mbps • 5 GHz: Up to 2882 Mbps • 2.4 GHz: Up to 688 Mbps
Wireless Functions	• MLO^‡ • 4K-QAM^‡ • Multi-RUs^‡ • 320 MHz Bandwidth^‡ • 24 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming^△ • Beamforming • Rate Limit (Based on SSID/Client) • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP
Wireless Security	• Captive Portal Authentication^△ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	6-20 dBm (2.4 GHz, ERIP) 6-23 dBm (5 GHz, U-NII-1, U-NII-2A, ERIP) 6-27.5 dBm (5 GHz, U-NII-2C, ERIP) 6-23 dBm (6 GHz,ERIP)

Management Features
Omada App	Yes
Centralized Management	• Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Requiring the use of an Omad Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	System Log
SSH	Yes
Web-based Management	Yes
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS
Certification	CE, RoHS
Package Content	• EAP775-Wall • Paintable Cover • Installation Guide • Mounting Kits
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

For additional version information, please go to the support page.

^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput and coverage are not guaranteed and will vary.

^§Painted covers cannot be returned or repaired.

^‡Use of Wi-Fi 7 (802.11be) and features including 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO requires clients to also support the corresponding features.

*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.

**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

^△Omada mesh, seamless roaming, captive portal, and cloud access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
