BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

- BE11000 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 4320 Mbps on 5 GHz + 574 Mbps on 2.4 GHz).?

- A clear 6 GHz band brings cleaner and wider band resources.?

- 1 2.5G Port unlocks the full potential of Wi-Fi 7.

- 320 MHz bandwidth enables many more simultaneous transmissions.?

- Multi-Link Operation and Multi-RUs ensure the high performance of your network.?

- Advanced Functions: Centralized management, mesh, and AI roaming.?

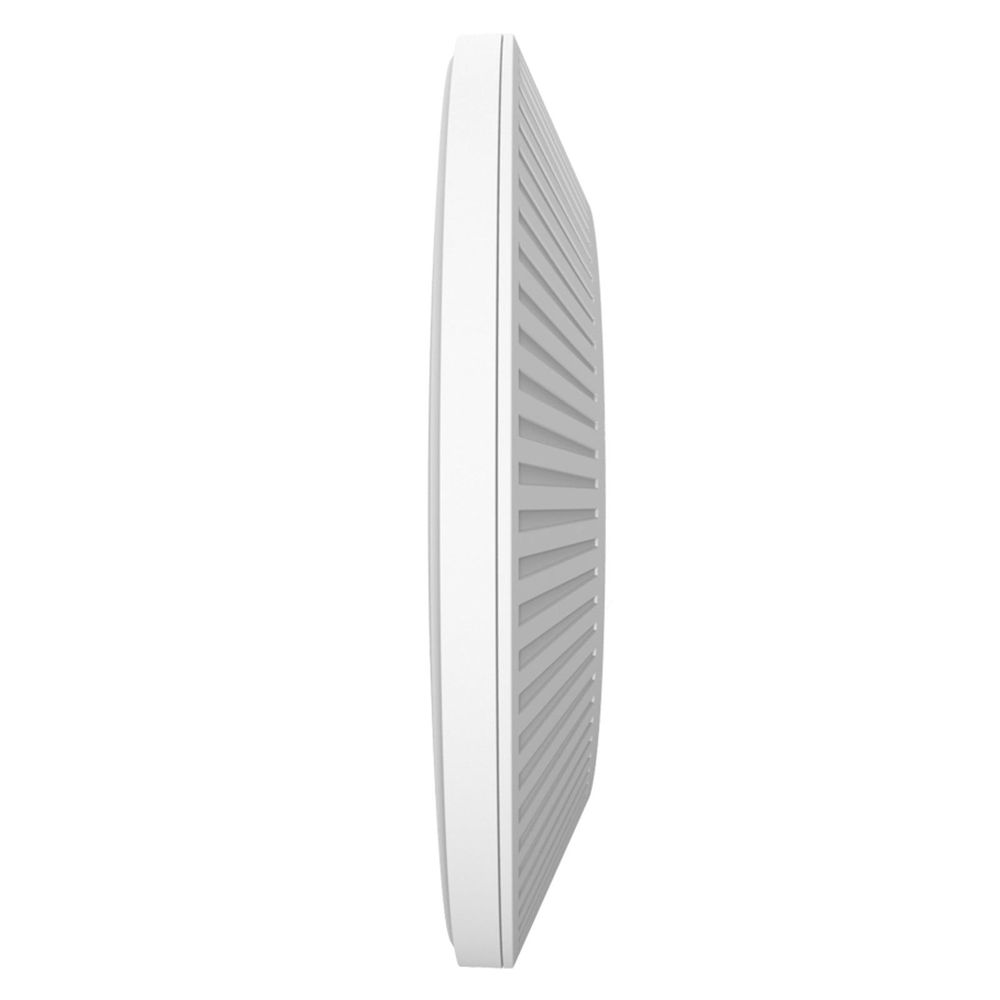

Ultra-Thin Design for Flexible Deployment

The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.

HARDWARE FEATURES

Interface :

1× 2.5G Ethernet Port

Button : Reset

Power Supply : 802.3at PoE or 12V/2.5A DC

Power Consumption :

- 25.44 W (For PoE);
- 22.57 W (For DC)

Dimensions ( W x D x H )

8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)

Antenna Type :

- 2.4 GHz: 2× 4.0 dBi
- 5 GHz: 2× 5.0 dBi
- 6 GHz: 2× 5.0 dBi

Bluetooth :

1 × 4.0 dBi, Bluetooth 5.2
*Firmware update may be required.

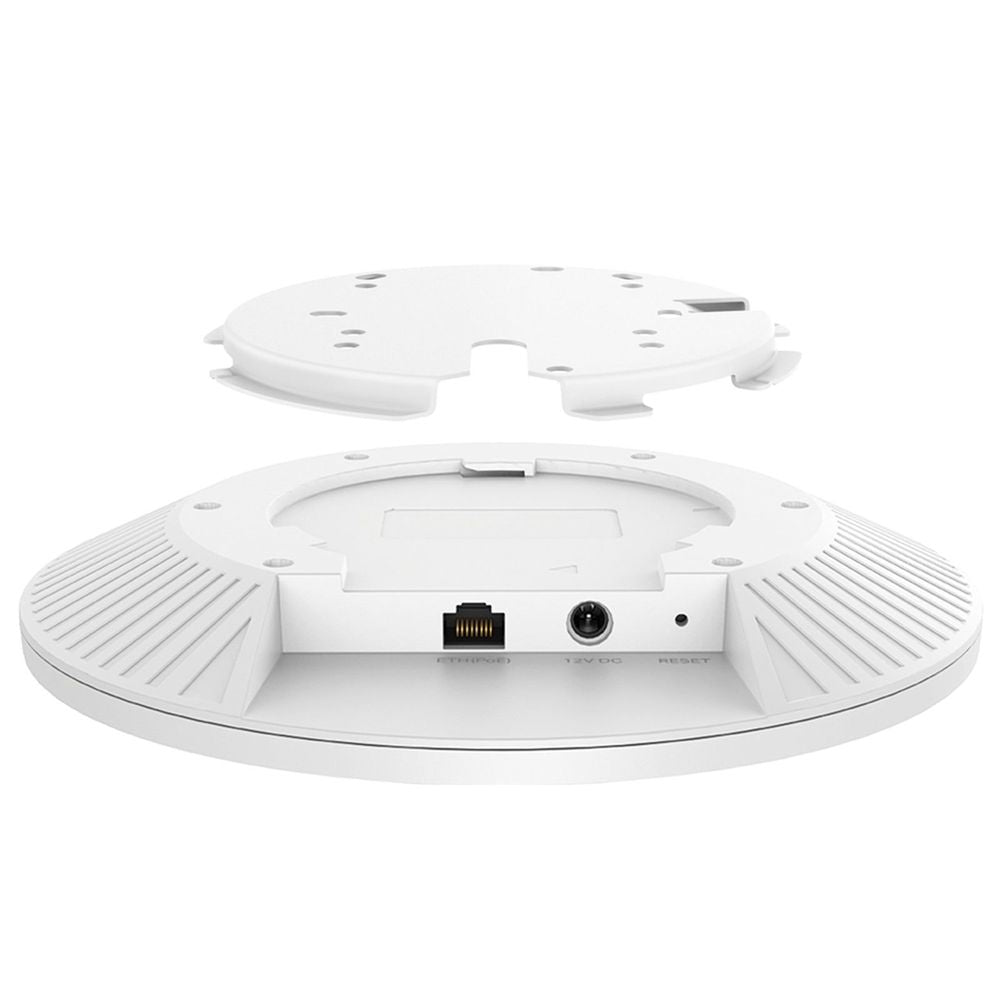

Mounting : Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES :

Wireless Client Capacity : 380+**

Wireless Standards : IEEE 802.11 a/b/g/n/ac/ax/be

Frequency : 6 GHz, 5 GHz, and 2.4 GHz

Signal Rate : 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)†

Wireless Functions :

- MLO‡
- 4K-QAM‡
- Seamless Roaming(802.11k/v/r)
- MU-MIMO‡
- EHT320‡
- Mesh?
- BSS Coloring‡
- OFDMA‡
- Load Balance
- Band Steering
- Beamforming
- Airtime Fairness
- Multiple SSIDS:24(8 on each band)
- Wireless Schedule
- Reboot Schedule
- QoS(WMM)
- Rate Limit
- Static IP/Dynamic IP
- RADIUS Accounting
- MAC Authentication

Wireless Security :

- Captive Portal Authentication?
- Access Control
- Maximum number of MAC Filter: 4,000
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power :

< 25dBm (2.4GHz)
< 25dBm (5GHz)
< 23dBm (6GHz)

MANAGEMENT

Omada App : Yes

Centralized Management :

- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller

Cloud Access : Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.

Email Alerts : Yes

LED ON/OFF Control : Yes

Management MAC Access Control : Yes

SNMP : v1, v2c, v3

System Logging Local/Remote Syslog : Yes

Web-based Management : Yes

OTHERS :

Certification : CE, FCC, RoHS, IC

Package Contents

- EAP772
- Installation Guide
- Ceiling/Wall Mounting Kit
Note: Power Adapter is NOT included.

Environment :

- Operating Temperature: 0 °C-40 °C (32 °F-104 °F);
- Storage Temperature: -40 °C-70 °C (-40 °F-158 °F);
- Operating Humidity: 10%-90% non-condensing;
- Storage Humidity: 5%-90% non-condensing;

TP-Link
