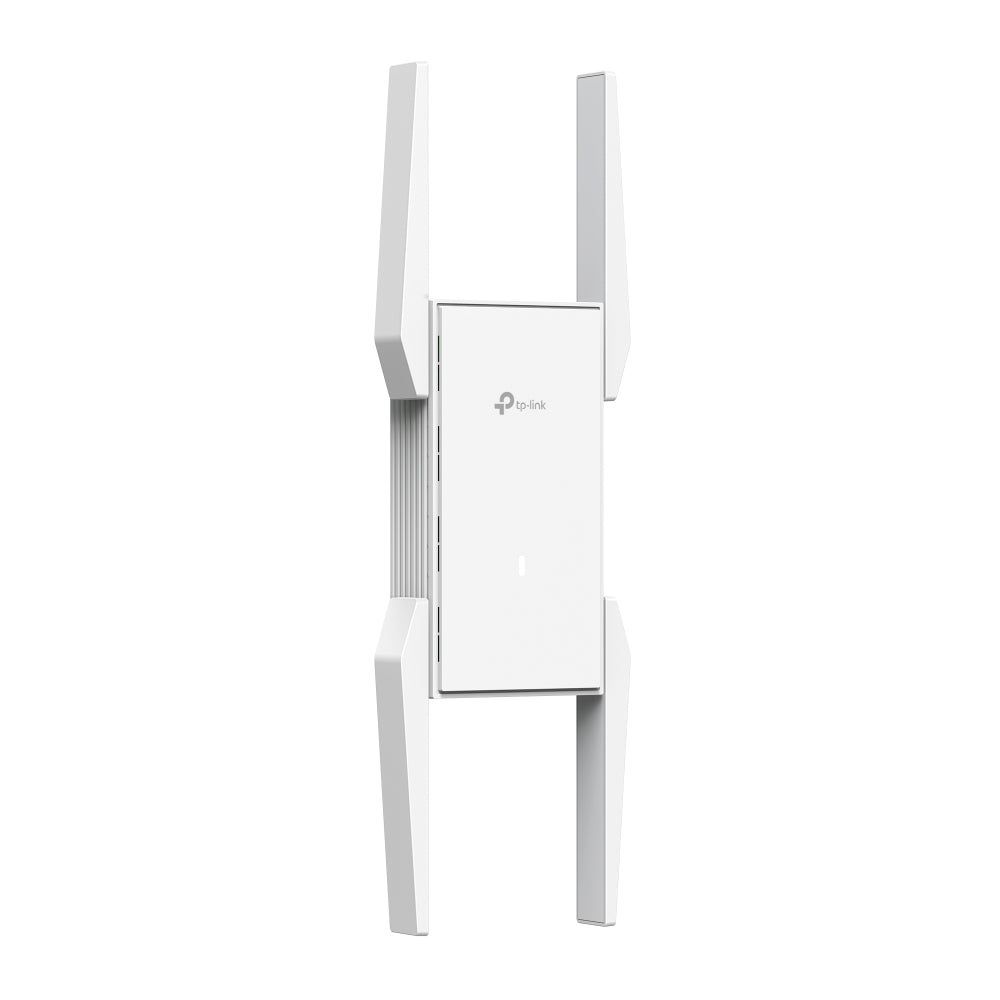

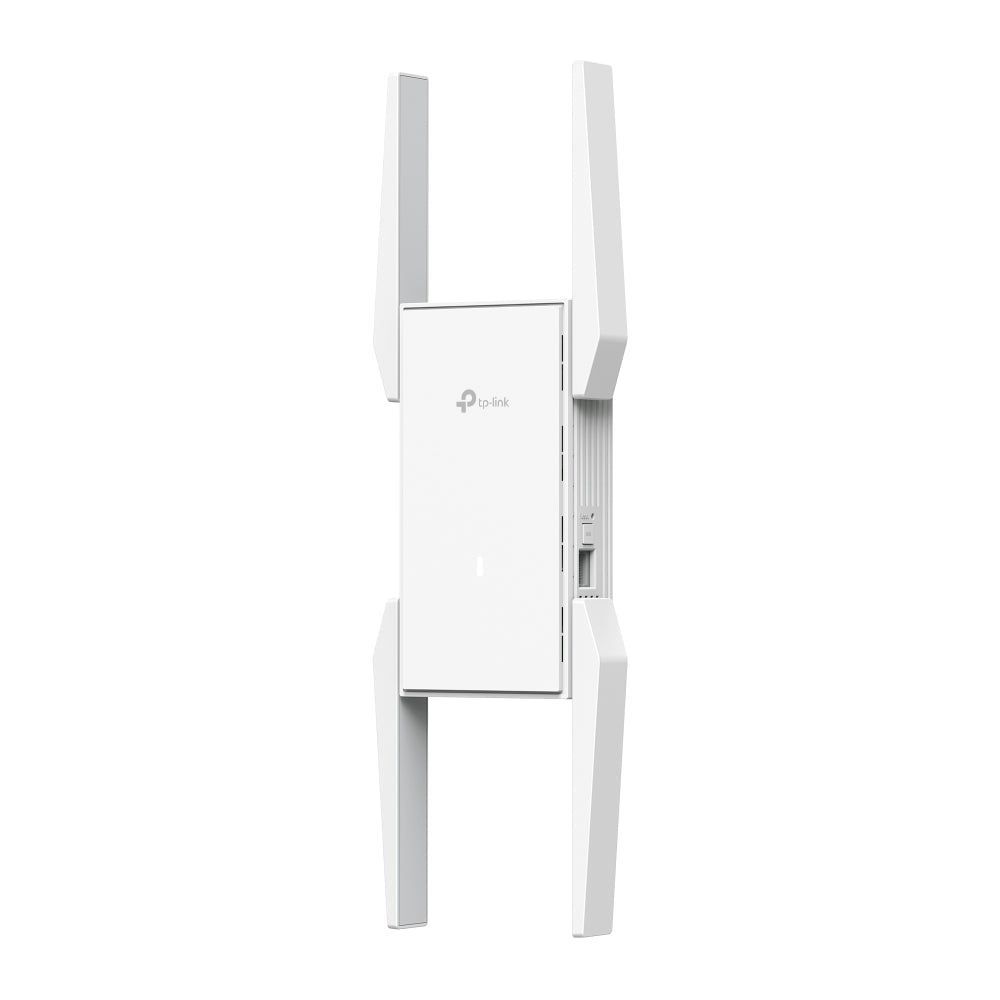

AX5400 Mesh Wi-Fi 6 Extender

AX5400 Dual-Band Wi-Fi 6: Up to 5.4 Gbps wireless speeds .^†
Wi-Fi Dead-Zone Killer: Four high-gain external antennas extend Wi-Fi signals to every dead zone.
AP Mode: Simply plug in an Ethernet cable to create a new Wi-Fi AP.
Seamless Mesh Networking: Supports Omada Mesh and Roaming for reliable networking, ideal for large-scale scenarios.^§
Easy & Quick Installation: Standard AC power supply for flexible deployment.
Quick adoption: Conveninet operation via Omada web or app once the extender powers on.
Centralised Cloud Management: Integrates into Omada SDN for cloud access and remote management.

HARDWARE FEATURES
Interface	1× Gigabit Ethernet Port
Physical Security Lock	No
Button	Reset, LED
Power Supply	100-240 V ~ 50/60 Hz
Power Consumption	18 W
Dimensions	6.3 × 3.1 × 1.5 in (160 × 80 × 37.8 mm)
Antenna	4× External Antennas • 2.4 GHz: 2× 3 dBi • 5 GHz: 4× 5 dBi
Mounting	Plug in

WIRELESS FEATURES
Coverage	140 ㎡ (1500 ft²)^***
Concurrent Clients	250+^**
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 574 Mbps
Wireless Functions	• 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming^§ • Beamforming • Rate Limit • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP
Wireless Security	• Captive Portal Authentication^§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: <20 dBm (2.4 GHz, EIRP) <23 dBm (5 GHz, band1 & band2, EIRP) <30 dBm (5 GHz, band3, EIRP) • FCC: <25 dBm (2.4 GHz) <28 dBm (5 GHz)

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Yes
SSH	Yes
Web-based Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS
Certification	CE, FCC, IC, RoHS, UL
Package Contents	• AX5400 Mesh WiFi 6 Extender EAP673-Extender • Installation Guide
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

For additional version information, please go to the support page.

^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed. They will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection, quality, and client condition.

^**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

^‡Use of Wi-Fi 6 (802.11ax) and its features, including OFDMA and 1024-QAM, require clients to support the corresponding features.

^§Omada Mesh, Seamless Roaming, and Captive Portal require an Omada SDN controller.

^***Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
