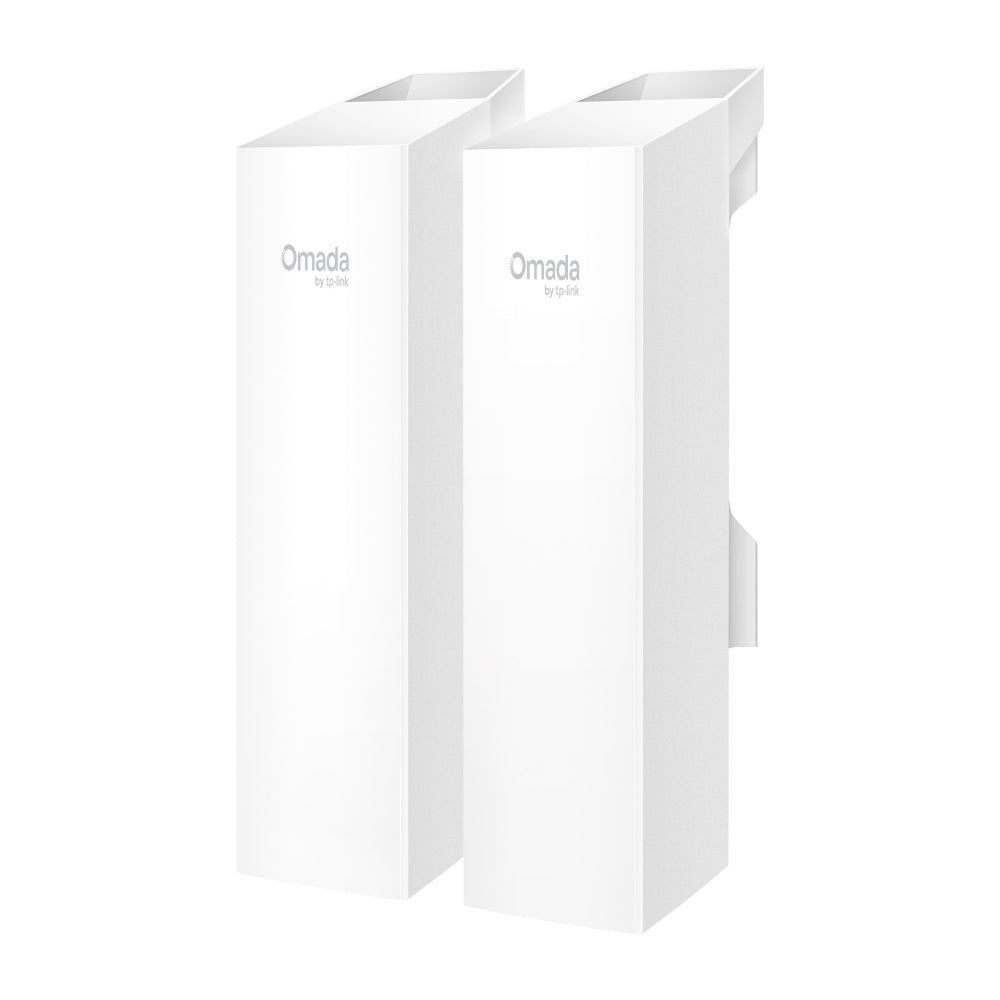

Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge

Name: TP-Link EAP100-Bridge KIT Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge
Brand: TP-LINK
SKU: TL-EAP100-BridgeKIT
Price: 157.93 NZD
Availability: InStock

· Up to 1640 ft (500 m) Wi-Fi transmission*

· Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever.

· Plug-and-Play Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go. Ideal for quick deployments.

· App-Guided Alignment: Visualized App-Guided Alignment for long-distance setups and Instant Speed Testing for installation verification.

· Flexible Power Supply: 802.3af PoE, 24V Passive PoE, and 12V DC (compatible with TP-Link solar power supply systems).

· 3× Fast Ethernet Ports: Connects more cameras and devices without an extra switch.△

· Built for Tough Outdoor Conditions: Features an IP65 weatherproof enclosure and operating range of -40℉ to +158 ℉.

· Remote Monitoring & Management: Choose Standalone mode or Omada SDN mode for remote centralized management via Web UI or app.

HARDWARE FEATURES

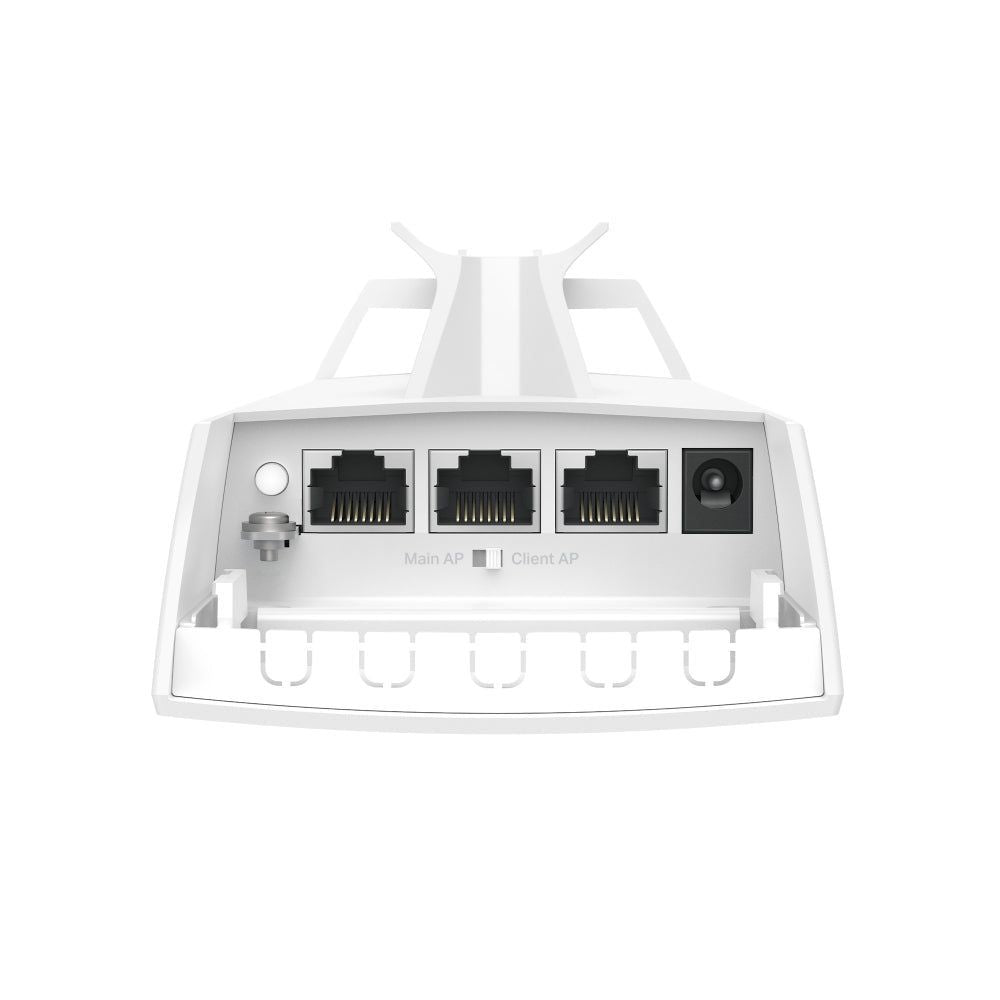

Interface	3x 10/100 Mbps Ethernet Ports
Button	Reset
Power Supply	12V DC / 802.3af PoE / 24V Passive PoE / 48V Passive PoE
Max. Power Consumption	4.8 W
Dimensions ( W x D x H )	3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)
Antenna	Internal 2×2 Dual-polarized directional MIMO antennas 2.4 GHz: 8.0 dBi Horizontal:70°, Vertical: 70°
Weatherproof Enclosure	IP65

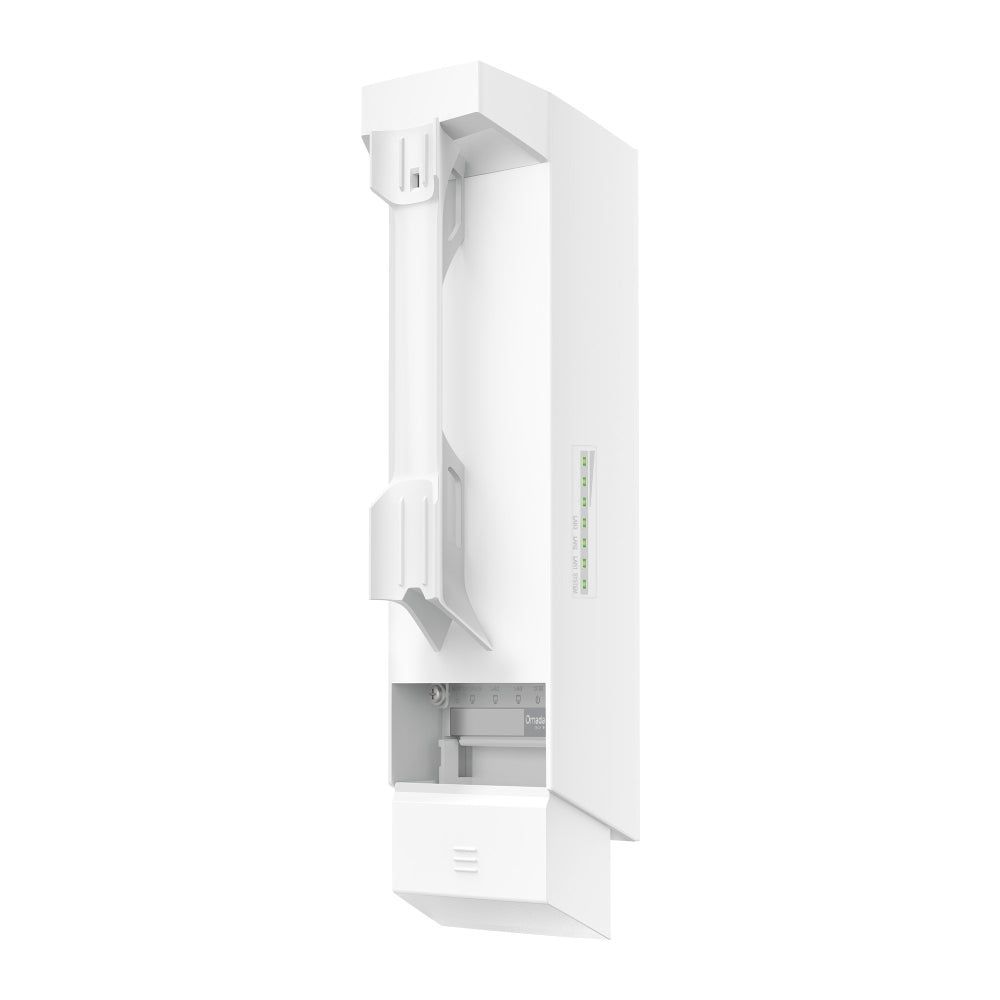

Mounting	Pole and wall mounting ( Pole accessories included)

WIRELESS FEATURES
Coverage	500 m (0.31 mi)^*
Wireless Standards	IEEE 802.11b/g/n
Frequency	2.4 GHz
Signal Rate	2.4 GHz: Up to 300 Mbps
Wireless Functions	• MIMO: 2.4G 2 × 2 MIMO • Mesh • Beamforming • Channel: 1-11 (US); 1-13 (EU) • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • Static IP/Dynamic IP • Rate Limit • Guest Network • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast
Wireless Security	• VLAN • Rogue AP Detection • Maximum number of MAC Filter: 4,000 • Wireless Encryption
Transmission Power	• CE: <20dBm (2.4 GHz, EIRP); • FCC: <22dBm (2.4 GHz)

Management Features
Omada App	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes
Centralized Management	• Omada Hardware Controller • Omada Software Controller • Omada App
Email Alerts	Yes
LED ON/OFF Control	Yes
SNMP	Yes
System Logging Local/Remote Syslog	Yes
SSH	Yes
Web-based Management	Yes

OTHERS
Certification	CE, FCC, RoHS

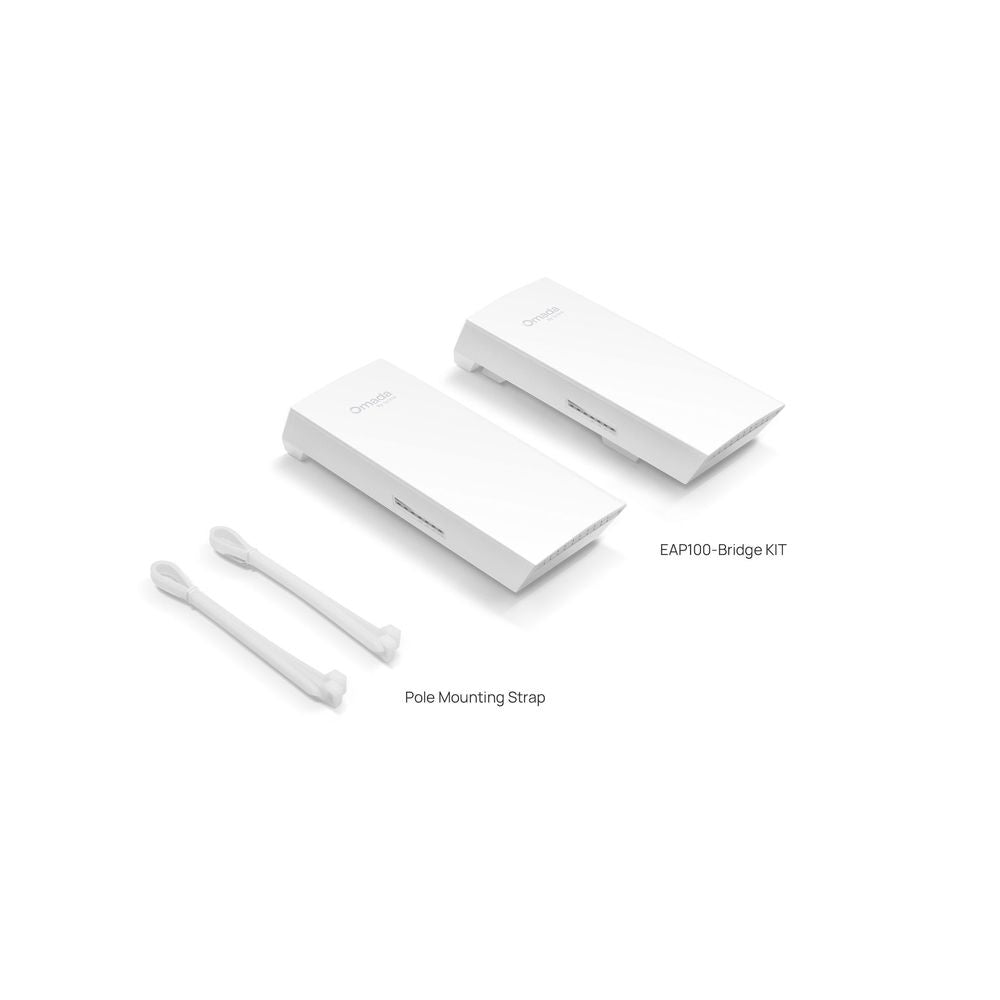

Package Content	• EAP100-Bridge KIT • Installation Guide • Pole Mounting Kit
Environment	• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing
