Name: TP-Link Beam Bridge 5 UR KIT Omada 5GHz 867Mbps Ultra-Range Indoor/Outdoor Wireless Bridge
Brand: TP-LINK
SKU: TL-BEAMBRIDGE5URKIT
Price: 571.77 NZD
Availability: OutOfStock

TP-Link Beam Bridge 5 UR KIT Omada 5GHz 867Mbps Ultra-Range Indoor/Outdoor Wireless Bridge Default Title

TP-Link Beam Bridge 5 UR KIT Omada 5GHz 867Mbps Ultra-Range Indoor/Outdoor Wireless Bridge

TP-Link Beam Bridge 5 UR KIT Omada 5GHz 867Mbps Ultra-Range Indoor/Outdoor Wireless Bridge

TL-BEAMBRIDGE5URKIT

$571.77

Tax included.

Out of stock

Select quantity

Description

Beam Bridge 5 UR KIT

Omada 5GHz 867Mbps Ultra-Range Indoor/Outdoor Wireless Bridge

Business-Grade up to 9.3 mi (15 km) Ultra-Range Wireless Transmission: With 23dBi high-gain directional antennas.*
Plug-and-Play with Preconfigured Kit: Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box.
App-Guided Alignment: Visualised app-guided alignment for long-distance setups and instant speed testing for installation verification.
Simple PoE Deployment and Power Supply: 1× Gigabit PoE port supports both 802.3af PoE and Passive PoE for simplified wiring and lower deployment costs.
Designed for Outdoor Durability & Reliability: IP65 weatherproof enclosure, 6 kV lightning protection and operating range of -40 °C to +70 °C.**
Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralised management via Web UI or App^†

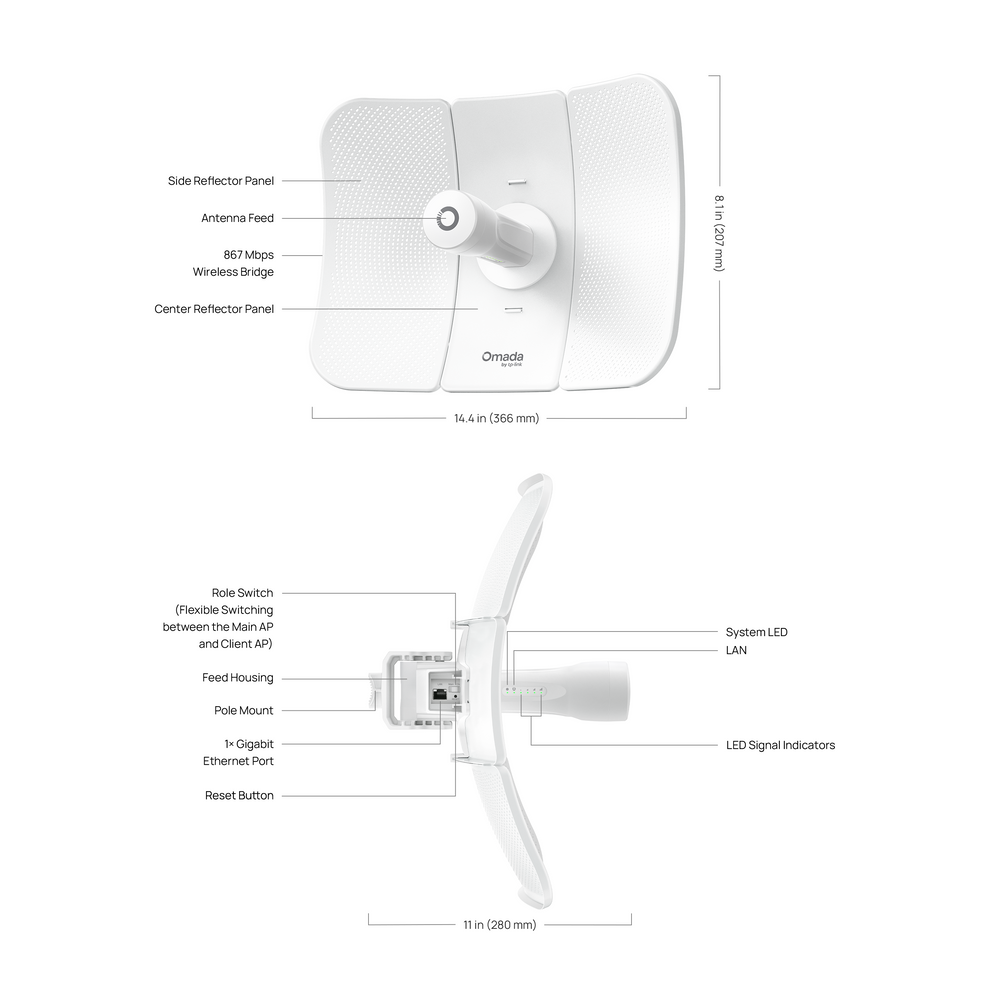

HARDWARE FEATURES
Interface	1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE In
Button	1 × Reset Button 1 × System Mode Selection Button
DIP Switch	Role Switch
Power Supply	802.3af PoE (1,2pins; 3,6pins) 24V or 48V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adapter Included)
Max. Power Consumption	15.8W
Dimensions ( W x D x H )	14.4 × 11.0 × 8.1 in (366 × 280 × 207 mm)
Antenna	External 2×2 Dual-Polarized Directional MIMO Antennas 5 GHz: 23 dBi
Antenna Beamwidth	Horizontal: 9°, Vertical: 7°
Weatherproof Enclosure	IP65
Bandwidth	5 GHz: 20 MHz/40 MHz/80 MHz
Mounting	Pole Mounting (Kits Included)

WIRELESS FEATURES
PtP	Yes
Transmission Distance	15 km (9.3 mi)
Wireless Standards	IEEE 802.11 a/n/ac
Frequency	5 GHz
Signal Rate	5 GHz: Up to 867 Mbps
Wireless Functions	• MU-MIMO: 5G 2x2 MU-MIMO DL • Maximum number of associated STAs: 8 • Speed Test • Channel Optimization • Antenna Alignment • ACS (Automatic Channel Selection) • Rate Limit • Guest Network
Wireless Security	• VLAN • Rogue AP Detection • Maximum number of MAC Filter: 4,000 • Wireless Encryption
Transmission Power	• CE: <23 dBm (5 GHz, U-NII-1/2A, ERIP) <30 dBm (5 GHz, U-NII-1/2C, ERIP) • FCC: <27 dBm (5 GHz, U-NII-1) <27 dBm (5 GHz, U-NII-3)

Management Features
Omada App	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes
Centralized Management	• Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Require the use of an Omada Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
SNMP	Yes
SSH	Yes
Web-based Management	Yes
Zero-Touch Provisioning	Yes

OTHERS
Certification	CE, FCC, RoHS

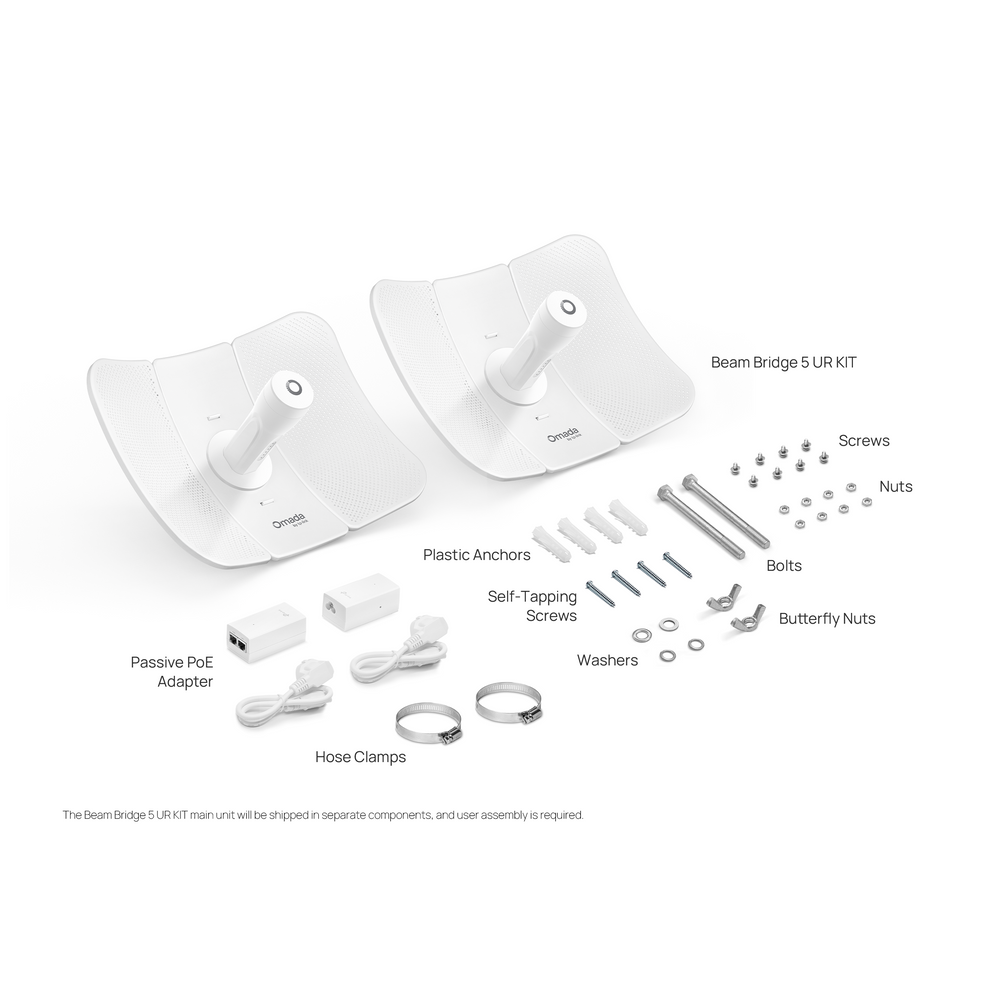

Package Content	• Beam Bridge 5 UR KIT • Installation Guide • Mounting Kit • Passive PoE Adapter • Power Cord
Lightning Protection	Ethernet Ports: ±6 kV
Environment	• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing
Weight	1.1 kg (2.43 lb)

For additional version information, please go to the support page.

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

*The advertised coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of the performance of the equipped antennas, client limitations, and environmental factors.

**Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding, and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.

^†These functions require the use of an Omada controller.
