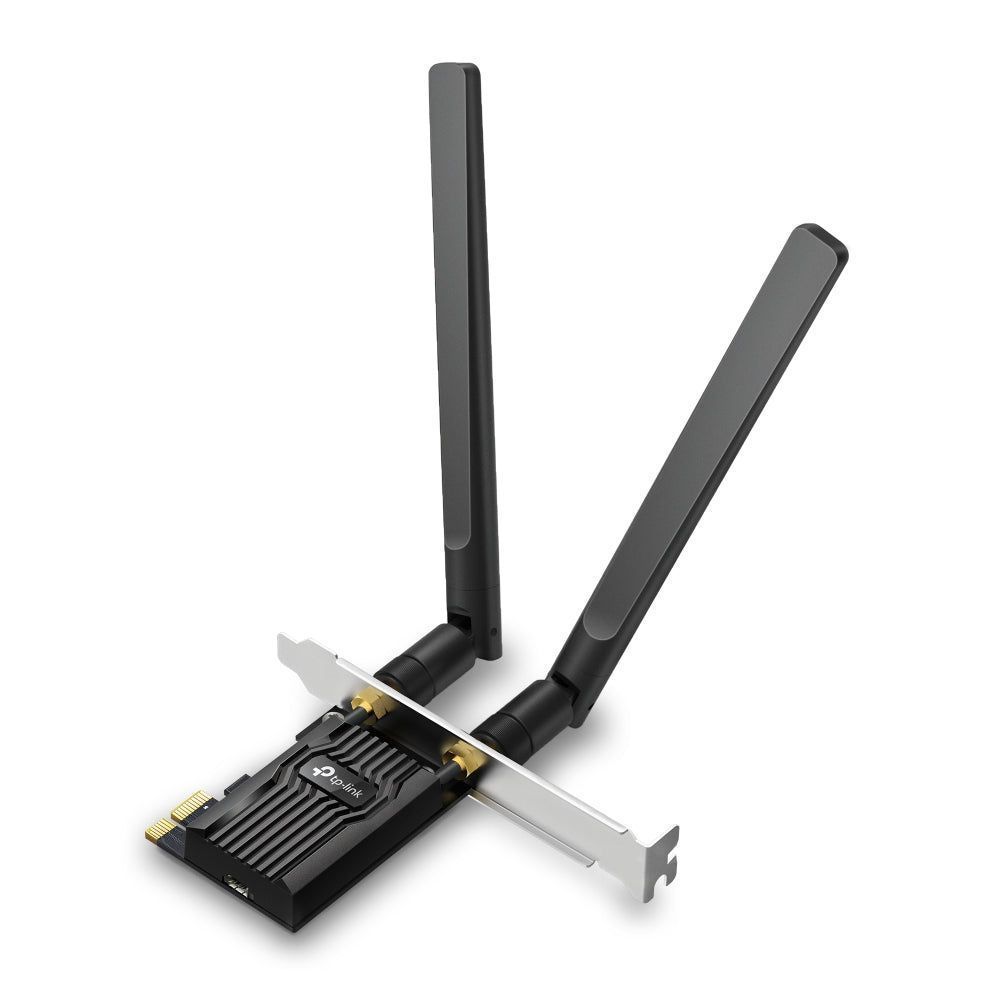

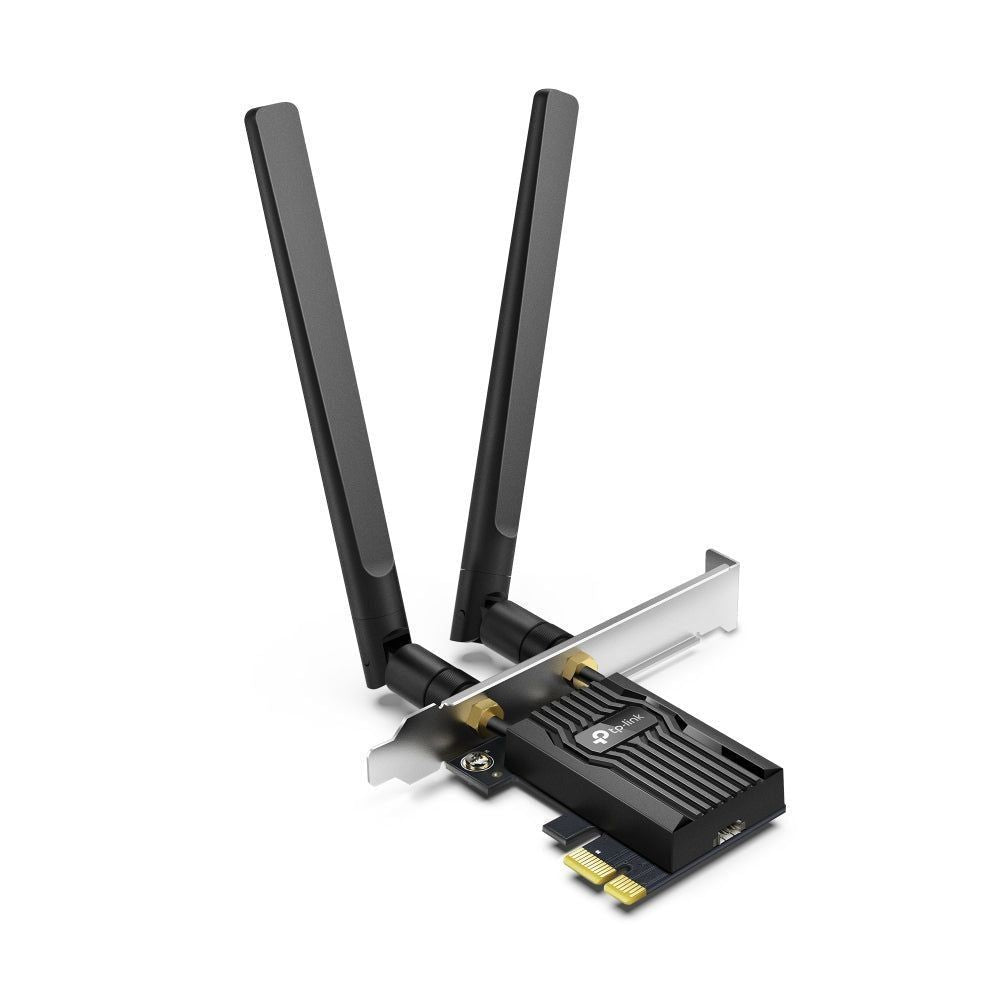

AX900 Wi-Fi 6 Bluetooth PCIe Adapter

Super-Fast Dual-Band Wi-Fi 6: Wi-Fi 6 and dual bands (600 Mbps on 5 GHz + 287 Mbps on 2.4 GHz) for up to 887 Mbps, ensuring a silky-smooth experience.
Reliable Bluetooth 5.3：Improves connection stability, data transfer efficiency, and provides a high-quality connection experience in complex environments.
MU-MIMO and OFDMA： Experience ultra-low latency and congestion MU-MIMO and OFDMA technology for unparalleled network efficiency.

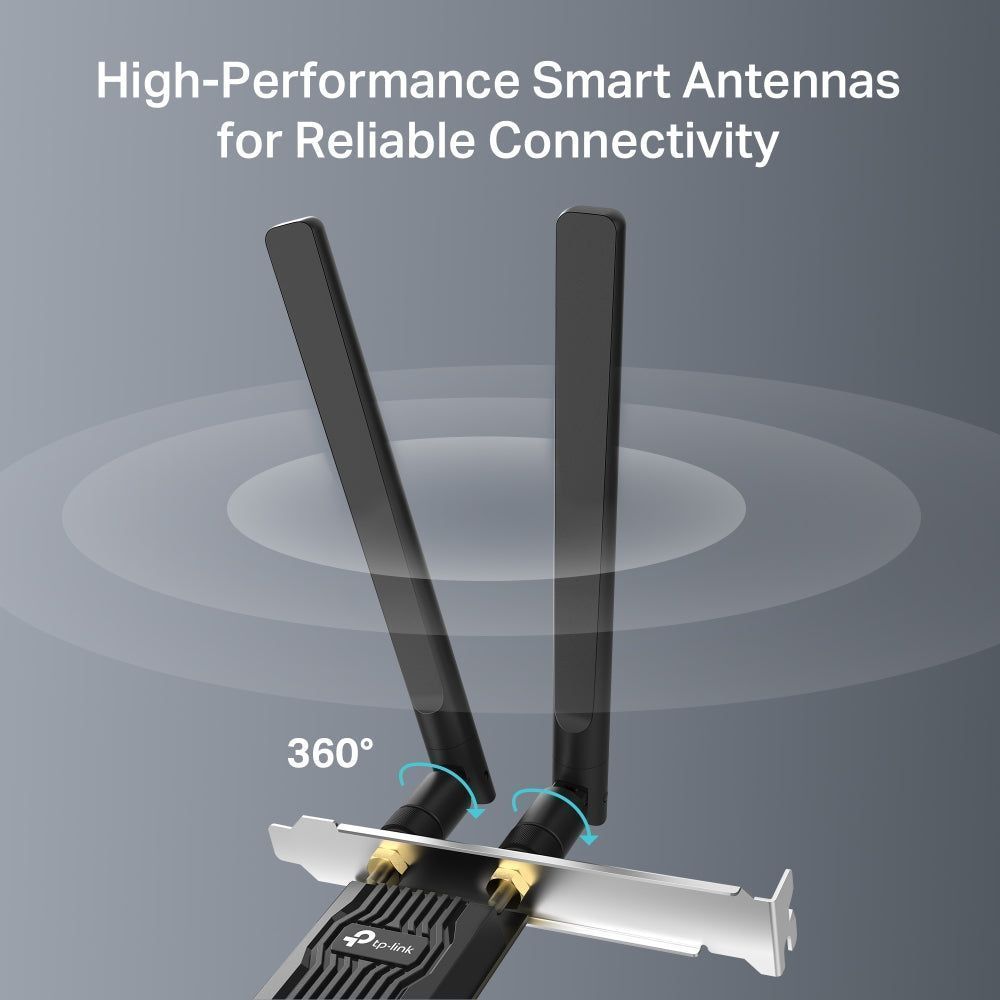

Two High-performance External Antennas: Provide extensive network coverage and strong, reliable signals.
Advanced WPA3: WPA3 protocol provides safer network connections and protects personal privacy.

HARDWARE FEATURES
Interface	PCI Express x1/x4/x8/x16
Dimensions ( W x D x H )	120.8 × 78.5 × 20.9 mm (4.76 × 3.09 × 0.82 in)
Antenna	Two High Gain Dual-Band Antennas

Bluetooth Features
Standards and Protocols	Bluetooth 5.3/5.2/5.0/4.2/4.0
Interface	F_USB 2.0

WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/n/ac/ax 5 GHz IEEE 802.11b/g/n/ax 2.4 GHz
Signal Rate	5 GHz 11ax: Up to 600 Mbps(dynamic) 11ac: Up to 433 Mbps(dynamic) 11n: Up to 150 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz 11ax: Up to 287 Mbps(dynamic) 11n: Up to 200 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic)
Reception Sensitivity	5 GHZ: 11a6M: -94dBm 11ax HE80 MCS11: -59dBm 11ax HE80 MCS0: -87dBm 2.4 GHZ: 11g6M: -95dBm 11ax HE40 MCS11: -65dBm 11ax HE40 MCS0: -93dBm
Wireless Modes	Client mode, Hotspot mode
Wireless Security	WEP, WPA/WPA2/WPA3(Personal/Enterprise), WPA-PSK/WPA2-PSK
Modulation Technology	DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 1024QAM
Transmission Power	5 GHz: 28dBm(FCC) / 23dBm(CE) (EIRP), 2.4 GHz : 24dBm(FCC) / 20dBm(CE) (EIRP)

OTHERS
Certification	FCC, CE, RoHS
Package Content	AX900 Wi-Fi 6 Bluetooth 5.3 PCIe Adapter Archer TX10E Two High Gain Dual-Band Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD
System Requirements	Windows 10/11(64-bit)
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

For additional version information, please go to the support page.

Warranty

Brand

TP-LINK

Restock ETA (if applicable)

Product Details

Specifications

TP-LINK
HeadingTP-Link Archer TX10E, AX900 Wi-Fi 6 Bluetooth PCIe Adapter

Description

Archer TX10E

AX900 Wi-Fi 6 Bluetooth PCIe Adapter

Super-Fast Dual-Band Wi-Fi 6: Wi-Fi 6 and dual bands (600 Mbps on 5 GHz + 287 Mbps on 2.4 GHz) for up to 887 Mbps, ensuring a silky-smooth experience.
Reliable Bluetooth 5.3：Improves connection stability, data transfer efficiency, and provides a high-quality connection experience in complex environments.
MU-MIMO and OFDMA： Experience ultra-low latency and congestion MU-MIMO and OFDMA technology for unparalleled network efficiency.
Two High-performance External Antennas: Provide extensive network coverage and strong, reliable signals.
Advanced WPA3: WPA3 protocol provides safer network connections and protects personal privacy.

HARDWARE FEATURES
Interface	PCI Express x1/x4/x8/x16
Dimensions ( W x D x H )	120.8 × 78.5 × 20.9 mm (4.76 × 3.09 × 0.82 in)
Antenna	Two High Gain Dual-Band Antennas

Bluetooth Features
Standards and Protocols	Bluetooth 5.3/5.2/5.0/4.2/4.0
Interface	F_USB 2.0

WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/n/ac/ax 5 GHz IEEE 802.11b/g/n/ax 2.4 GHz
Signal Rate	5 GHz 11ax: Up to 600 Mbps(dynamic) 11ac: Up to 433 Mbps(dynamic) 11n: Up to 150 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz 11ax: Up to 287 Mbps(dynamic) 11n: Up to 200 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic)
Reception Sensitivity	5 GHZ: 11a6M: -94dBm 11ax HE80 MCS11: -59dBm 11ax HE80 MCS0: -87dBm 2.4 GHZ: 11g6M: -95dBm 11ax HE40 MCS11: -65dBm 11ax HE40 MCS0: -93dBm
Wireless Modes	Client mode, Hotspot mode
Wireless Security	WEP, WPA/WPA2/WPA3(Personal/Enterprise), WPA-PSK/WPA2-PSK
Modulation Technology	DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 1024QAM
Transmission Power	5 GHz: 28dBm(FCC) / 23dBm(CE) (EIRP), 2.4 GHz : 24dBm(FCC) / 20dBm(CE) (EIRP)

OTHERS
Certification	FCC, CE, RoHS
Package Content	AX900 Wi-Fi 6 Bluetooth 5.3 PCIe Adapter Archer TX10E Two High Gain Dual-Band Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD
System Requirements	Windows 10/11(64-bit)
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
