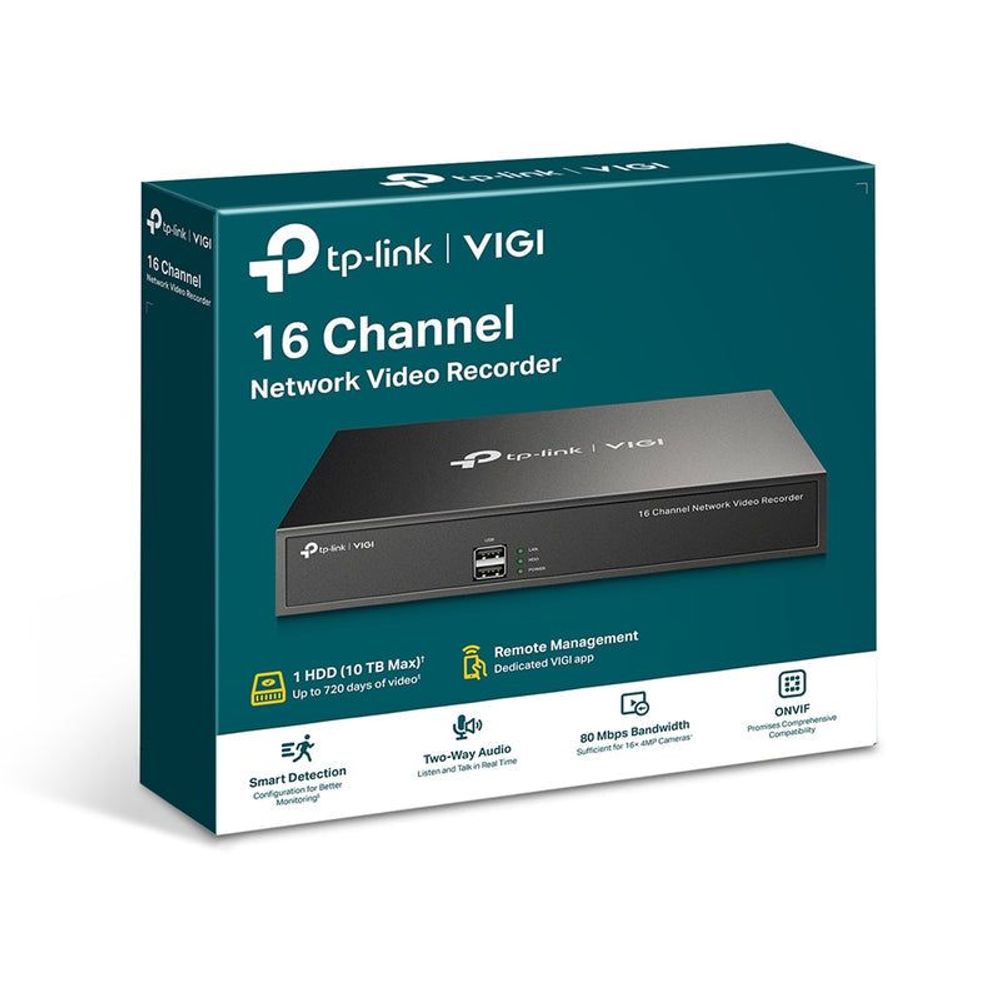

VIGI NVR1016H

VIGI 16 Channel Network Video Recorder

24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.

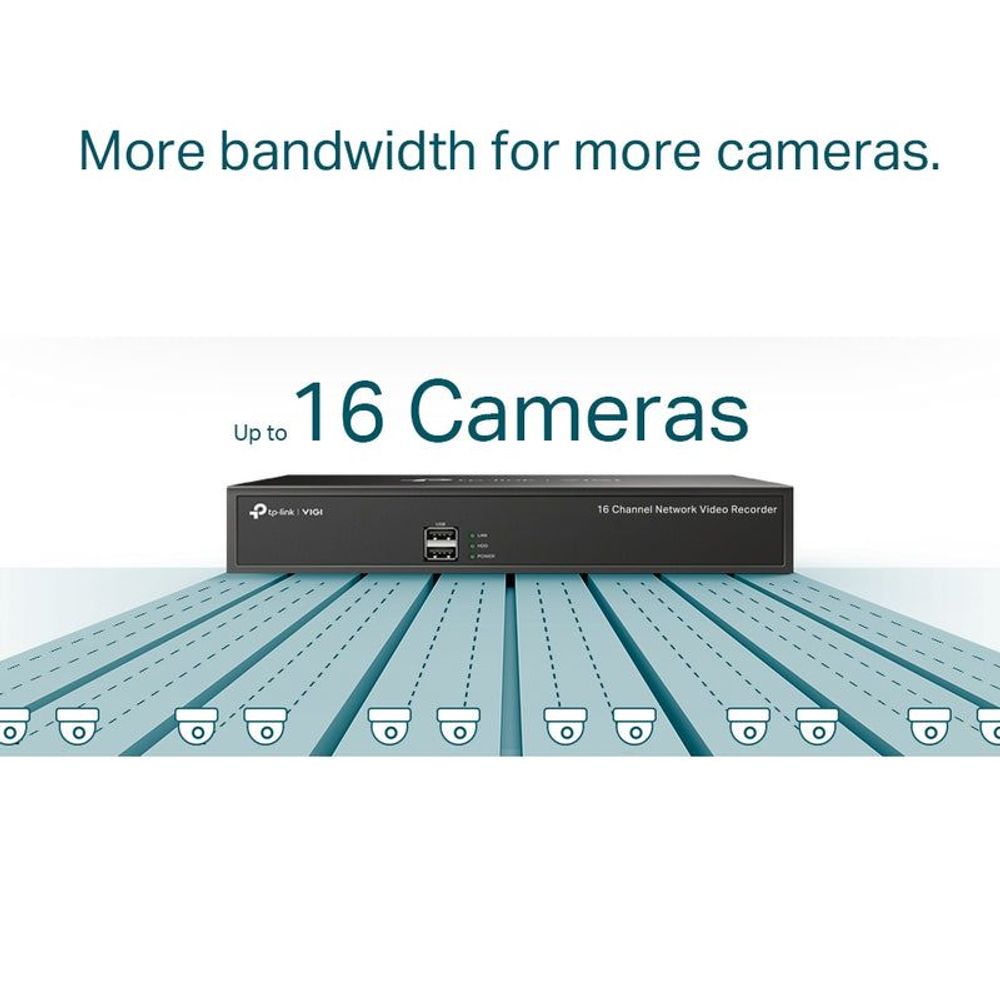

16-Channel Real-Time Live View: Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail, from every angle.
Quick Lookup and Playback: Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage.

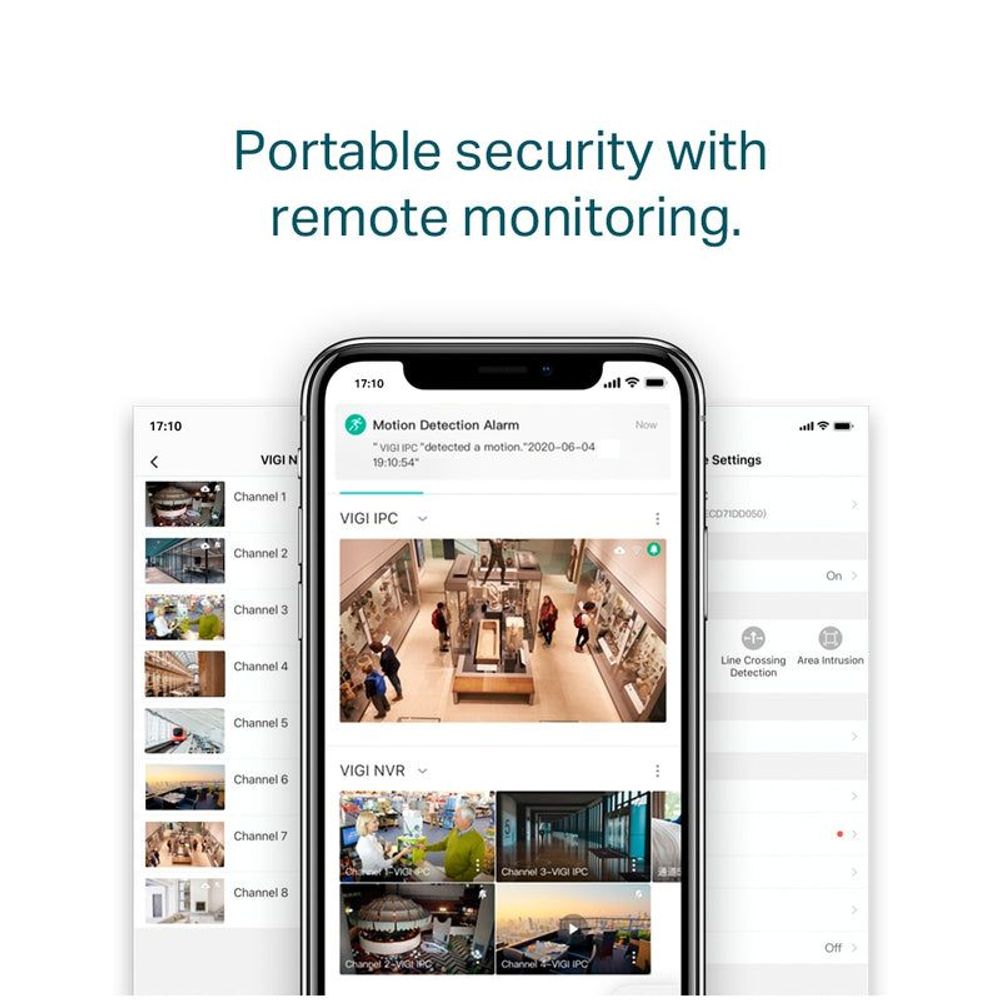

Remote Monitoring: Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
ONVIF Ensure Compatibility^*: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

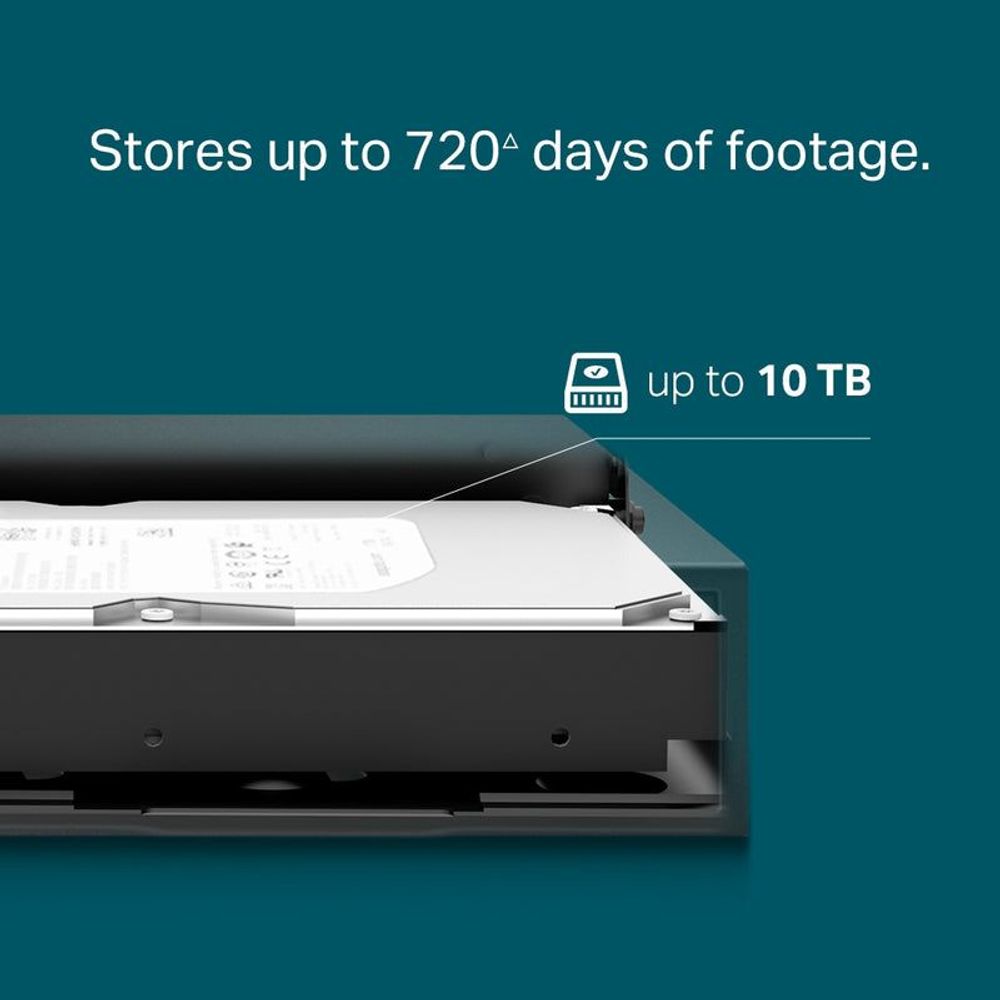

1 HDD Interface (up to 10 TB)^†: Stores up to 10 TB (720 days^△ of video) on a SATA hard drive, keeping your data storage secured locally.
Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

NETWORK
Protocol	TCP/IP, DHCP, DNS, NTP, UPnP
Incoming Bandwith	80 Mbps
Outgoing Bandwidth	60 Mbps

GENERAL
Package Contents	VIGI Network Video Recorder Power Adapter HDD Screws Mouse Quick Installation Guide
Operating Temperature	-10–55 °C
Dimensions( W X D X H )	246.2 × 148.2 × 45 mm
Weight	578.5 g
External Power Supply	DC 12V/1.5A
Power Consumption	4.25 W (without disk)

VIDEO/IMAGE
Synchronous Playback	16-Channel
Video Input	16-Channel IP Video Input, up to 8 MP Resolution
Video Output	Recording Resolution: 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF HDMI/VGA Output Resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz
Recording Resolution	8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI Output Resolution	1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

DECODING
Decoding Format	H.265+/H.265/ H.264+/H.264
Live View/Playback Resolution	8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability	1-ch @ 8 MP, 2-ch @ 4 MP, 4-ch @ 2 MP

HARD DISK
SATA	1 SATA Interface
Capacity	Up to 10 TB

INTERFACES
Network Interface	1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface	2× USB 2.0

For additional version information, please go to the support page.

†HDD is not included.

‡A hard disk drive (not included) must be installed for operation. Some devices may be incompatible, such as a wireless mouse.

△ Calculations based on laboratory testing using a 3MP VIGI camera. Actual performance may vary according to the amount of activity recorded, resolution, and other variables.

*Some features may operate sub-optimally due to compatibility issues. For best performance, we recommend using VIGI NVR with VIGI cameras.
