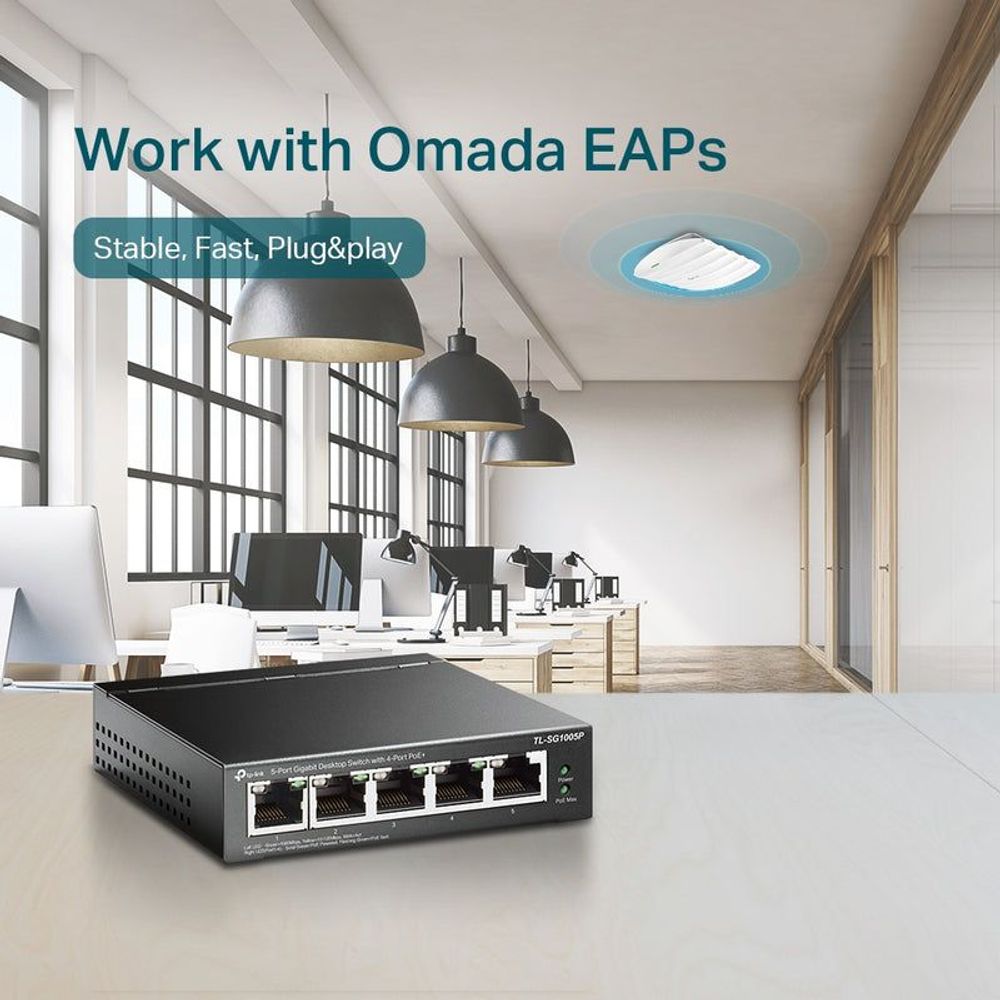

TP-Link TL-SG1005P desktop PoE switch on desk, shown for Omada EAP use
TP-Link PoE switch application scenarios: surveillance, conference calls, Wi‑Fi coverage

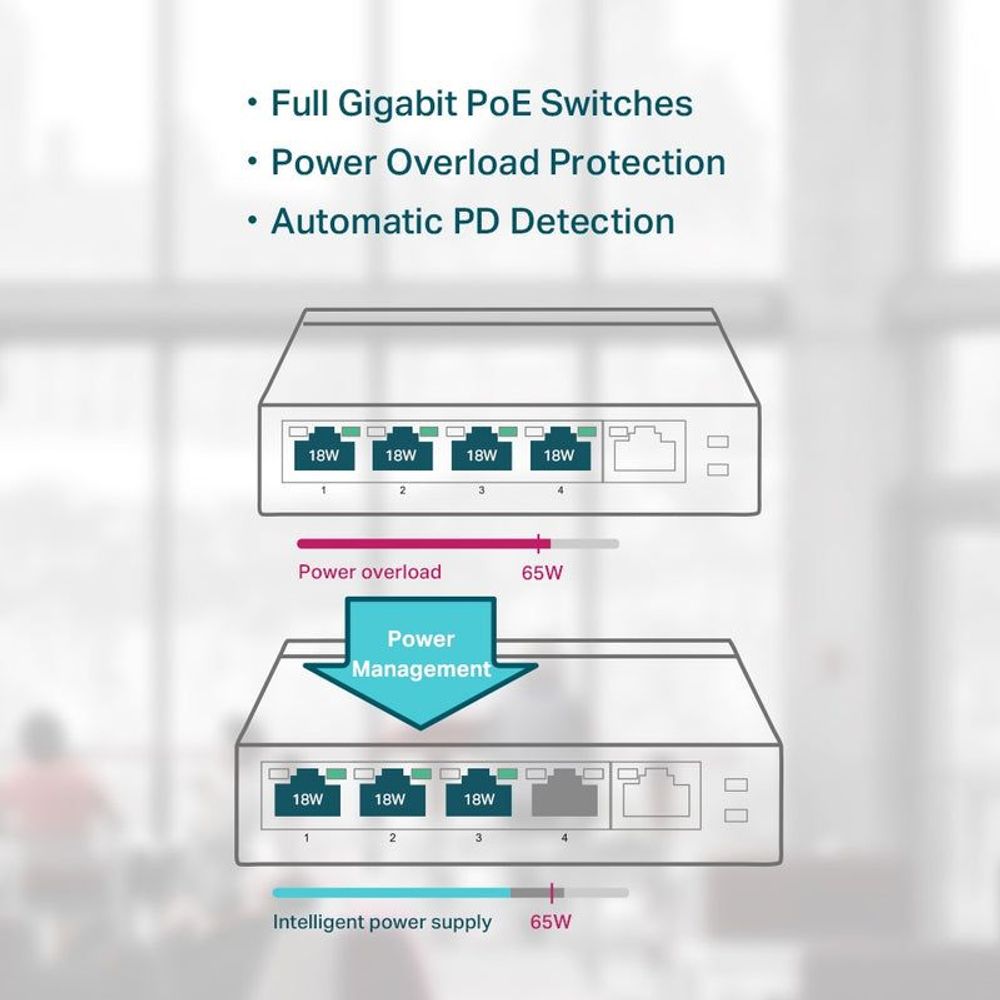

TP-Link PoE switch power management graphic with overload protection and 65W
TP-Link PoE switch feature graphics: QoS and IGMP snooping traffic optimization

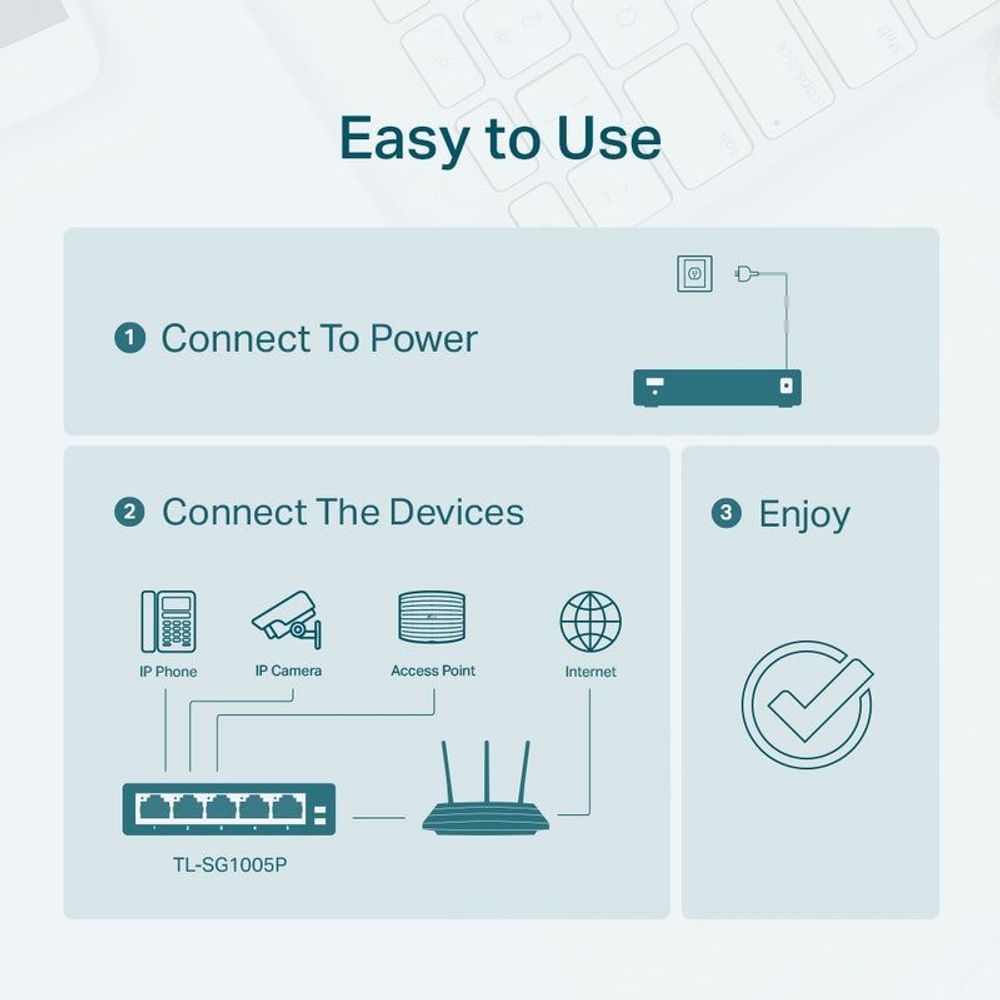

TP-Link PoE switch easy setup steps: connect to power, connect devices, enjoy

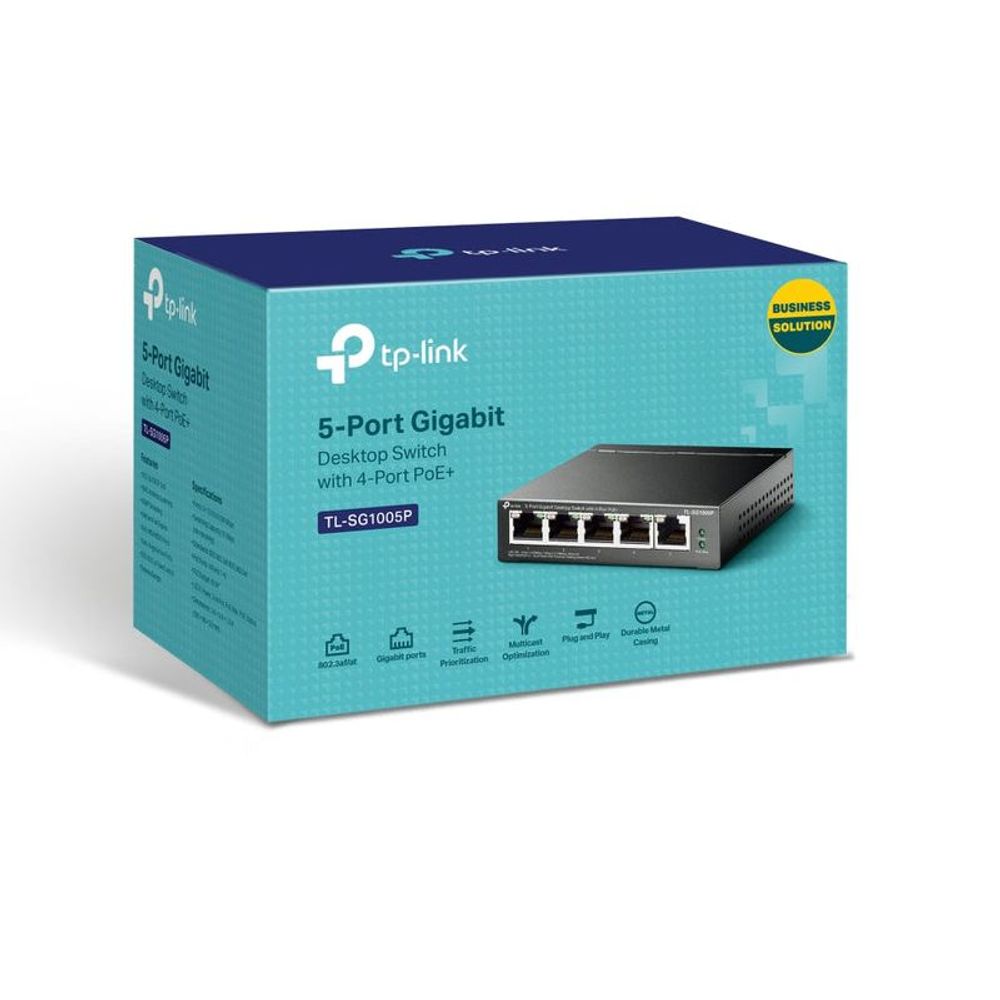

TP-Link TL-SG1005P 5-port Gigabit PoE+ desktop switch retail box with product photo
TP-Link TL-SG1005P 5-port Gigabit desktop switch with four PoE+ ports, front panel
TP-Link PoE switch diagram: data and power over Ethernet through PoE ports
TP-Link TL-SG1005P desktop PoE switch on desk, shown for Omada EAP use
TP-Link PoE switch application scenarios: surveillance, conference calls, Wi‑Fi coverage
TP-Link PoE switch power management graphic with overload protection and 65W
TP-Link PoE switch feature graphics: QoS and IGMP snooping traffic optimization
TP-Link PoE switch easy setup steps: connect to power, connect devices, enjoy
TP-Link TL-SG1005P 5-port Gigabit PoE+ desktop switch retail box with product photo

TP-Link TL-SG1005P 5-Port Gigabit Switch 4-Port PoE

TL-SG1005P

$113.31

Tax included.

In stock, ready to be shipped
Select quantity
Description

5-Port Gigabit Desktop Switch with 4-Port PoE

  • 5 10/100/1000Mbps RJ45 ports
  • With four PoE ports, transfers data and power on one single cable
  • Working with IEEE 802.3af/at compliant PDs, expands home and office network
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 30W for each PoE port
  • Supports PoE Power up to 56W for all PoE ports
  • Requires no configuration and installation
HARDWARE FEATURES
Interface 5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter(Output: 48VDC / 1.25A)
Packet Forwarding Rate 7.44 Mpps
PoE Ports (RJ45) Standard: 802.3 at/af compliant
PoE Ports: Port1- Port4
Power Supply: 56W
Mac Address Table 2K
Jumbo Frame 16 KB
Switching Capacity 10 Gbps
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption 3.95W(220/50Hz. no PD connected)
64.44W(220/50Hz. with 56W PD connected)
Max Heat Dissipation 13.48BTU/h(no PD connected)
219.87BTU/h(with 56W PD connected)
SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3 at/af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents • TL-SG1005P
• Power Adapter
• Installation Guide
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
For additional version information, please go to the support page.
Warranty
Brand

TP-LINK

Restock ETA (if applicable)
