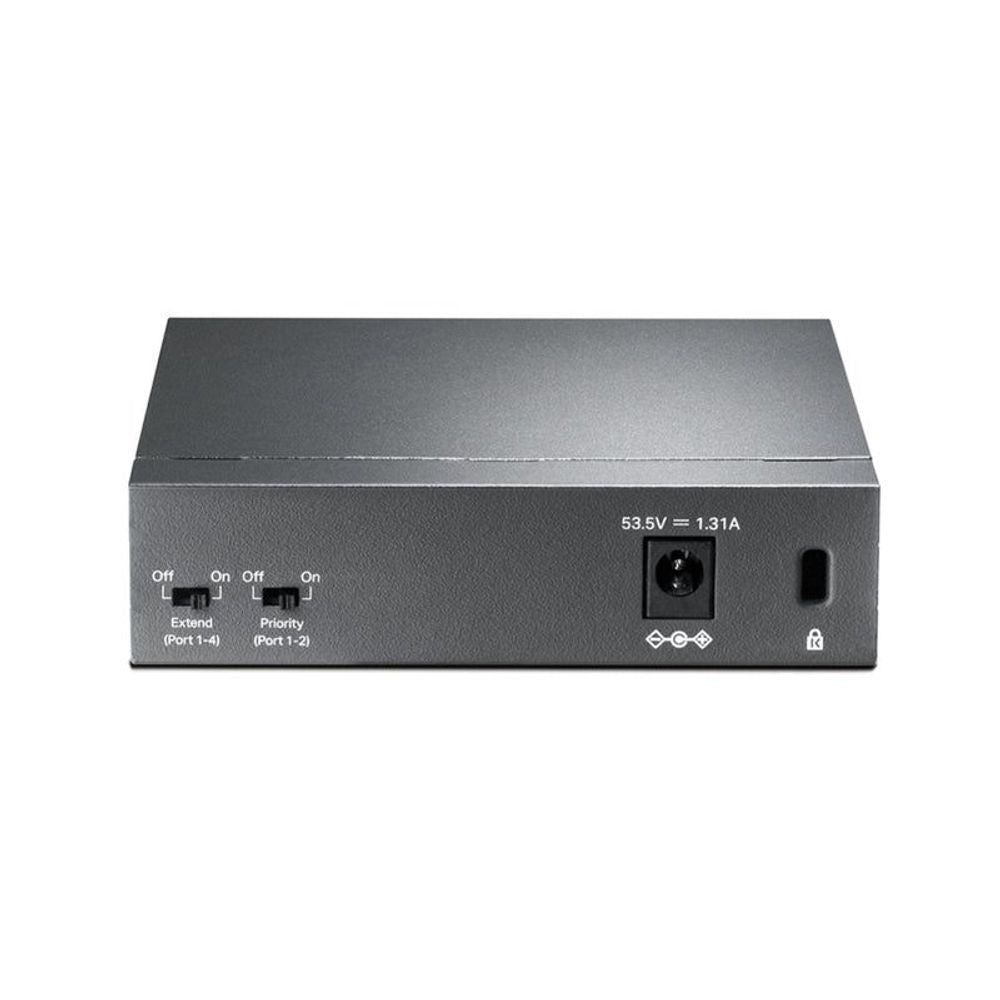

TP-Link desktop PoE switch rear panel with power jack, port switches, and LEDs

TP-Link 5-port desktop PoE switch with 67W power budget feature callout

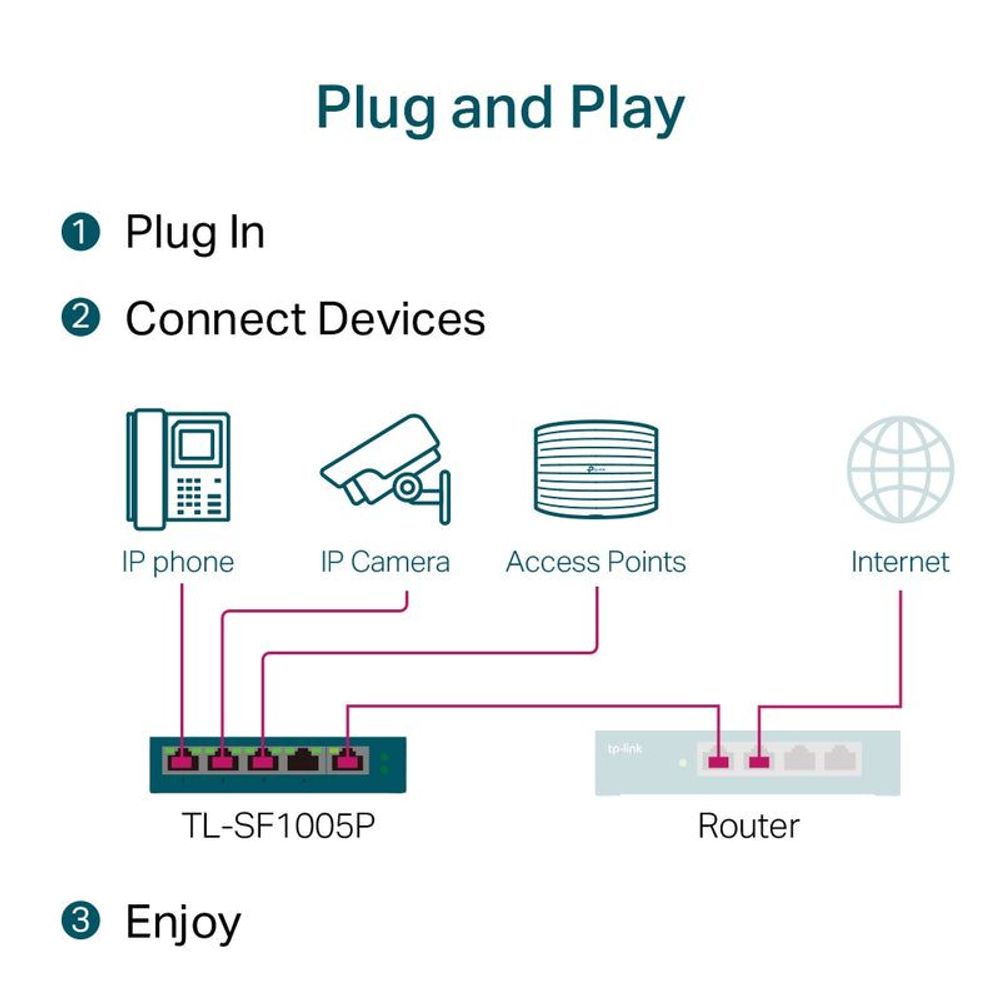

TP-Link desktop PoE switch with plug-and-play setup diagram and four PoE ports

TP-Link desktop PoE switch with extend mode feature callout for longer reach

TP-Link desktop PoE switch with priority mode button and PoE port status LEDs

TP-Link 5-port 10/100Mbps desktop PoE switch retail box with 4-Port PoE

TP-Link TL-SF1005P 5-Port 10/100Mbps PoE Switch (TL-SF1005P)

TL-SF1005P

$81.42

Tax included.

In stock, ready to be shipped

Select quantity

Description

5-Port 10/100Mbps Desktop Switch with 4-Port PoE

5× 10/100 Mbps RJ45 ports
4× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 67 W for all PoE ports^*
Up to 250m data and power transmitting range under Extend Mode^**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive application
PoE Auto Recovery guarantees the stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Plug and play with no configuration required

Learn more about TP-Link PoE technology >

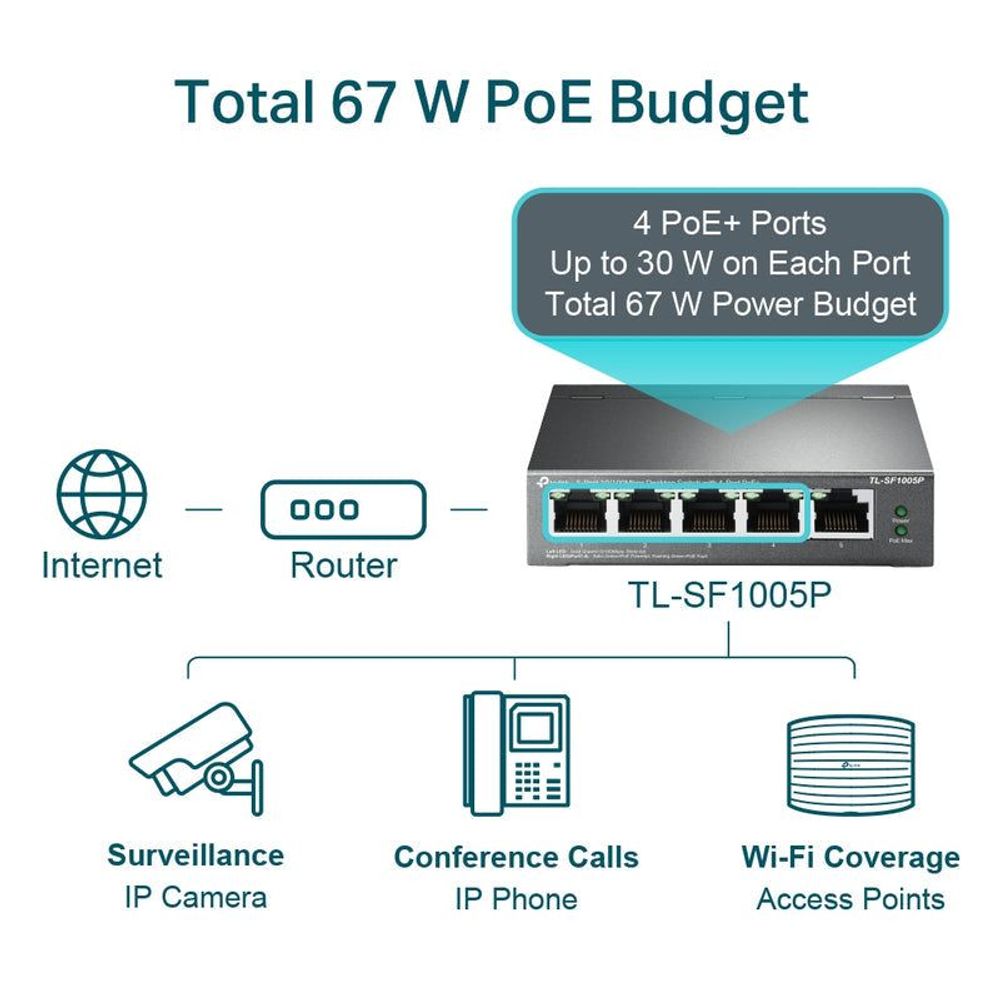

Dedicated 4-Port PoE+ Switch (67 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 67 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

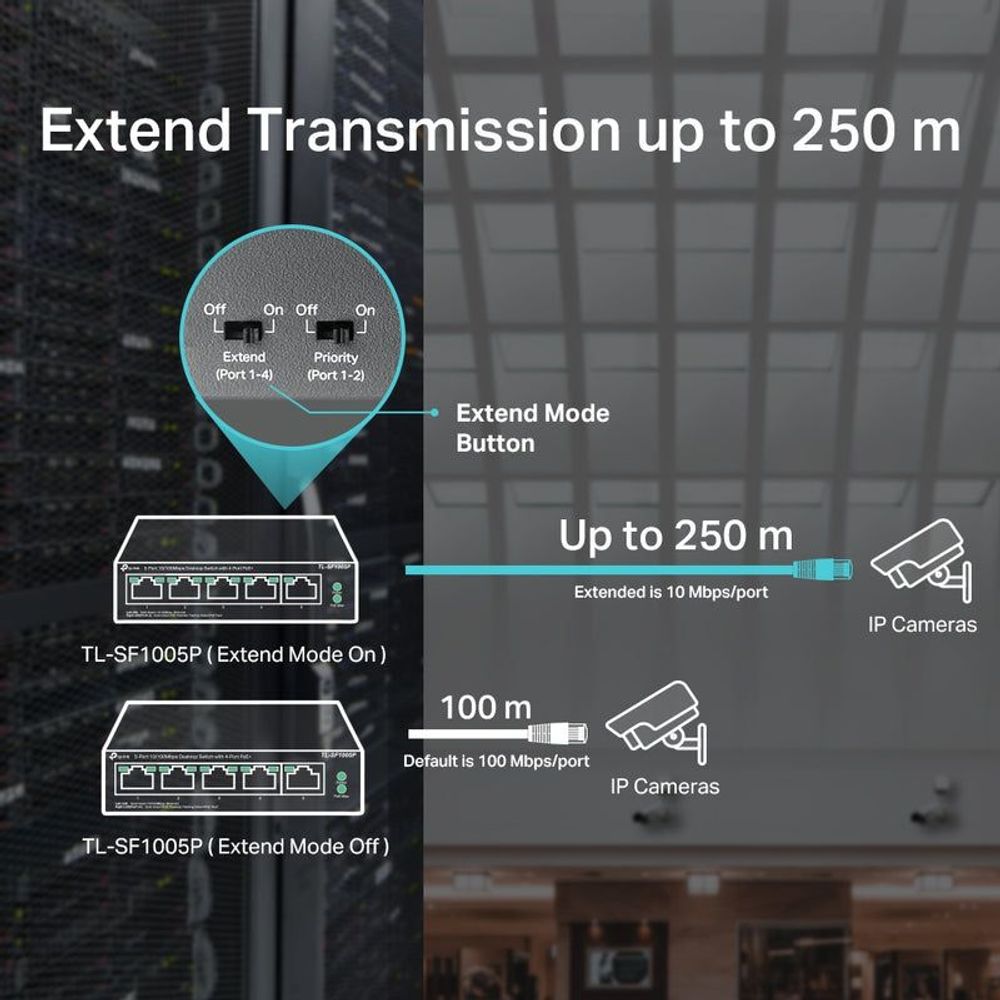

Ideal for IP Surveillance
—Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to the power consumption of PoE-powered devices or the cable quality and type.

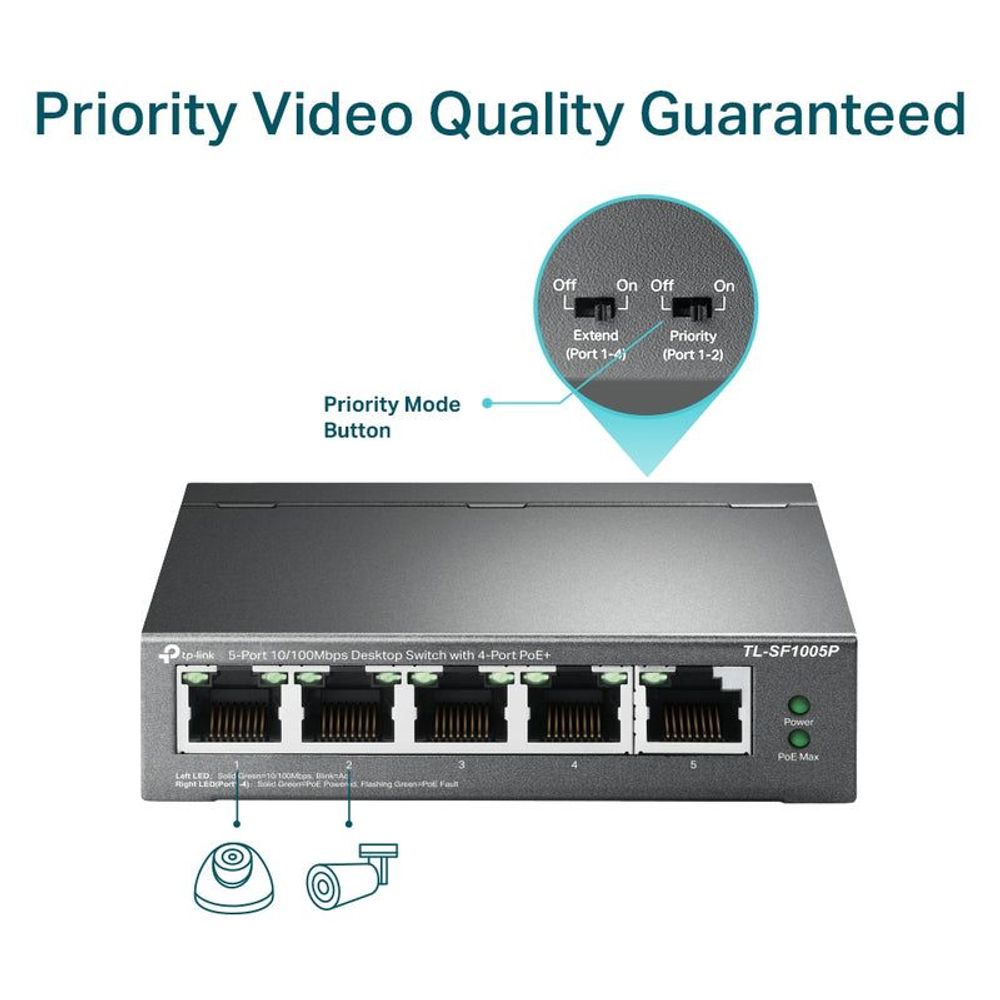

Priority Video
Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

Intelligent Power Management

When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high-priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

High-Quality Metal

25mm

100mm

98mm

Durable Metal Casing

The interior components of TL-SF1005P are protected by a high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005P delivers switching performance you can depend on.

HARDWARE FEATURES
Interface	• 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports) • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter (Output: 53.5 V DC / 1.31 A)
Packet Forwarding Rate	0.744 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 67 W
Mac Address Table	2K
Jumbo Frame	2 KB
Switching Capacity	1 Gbps
Dimensions ( W x D x H )	3.9 x 3.9 x 1.0 in (99.8 x 98 x 25 mm)
Max Power Consumption	• 1.9 W (220 V / 50 Hz, no PD connected) • 74 W (220 V / 50 Hz, with 67 W PD connected)
Max Heat Dissipation	• 6.48 BTU/h(no PD connected) • 252.34 BTU/h(with 67 W PD connected)

SOFTWARE FEATURES
Transmission Method	Store-And-Forward
Advanced Functions	• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4) • Priority Mode Button (Ports 1–2) • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

OTHERS
Certification	FCC, CE, RoHS
Package Contents	• TL-SF1005P • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

For additional version information, please go to the support page.

^*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

^**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
