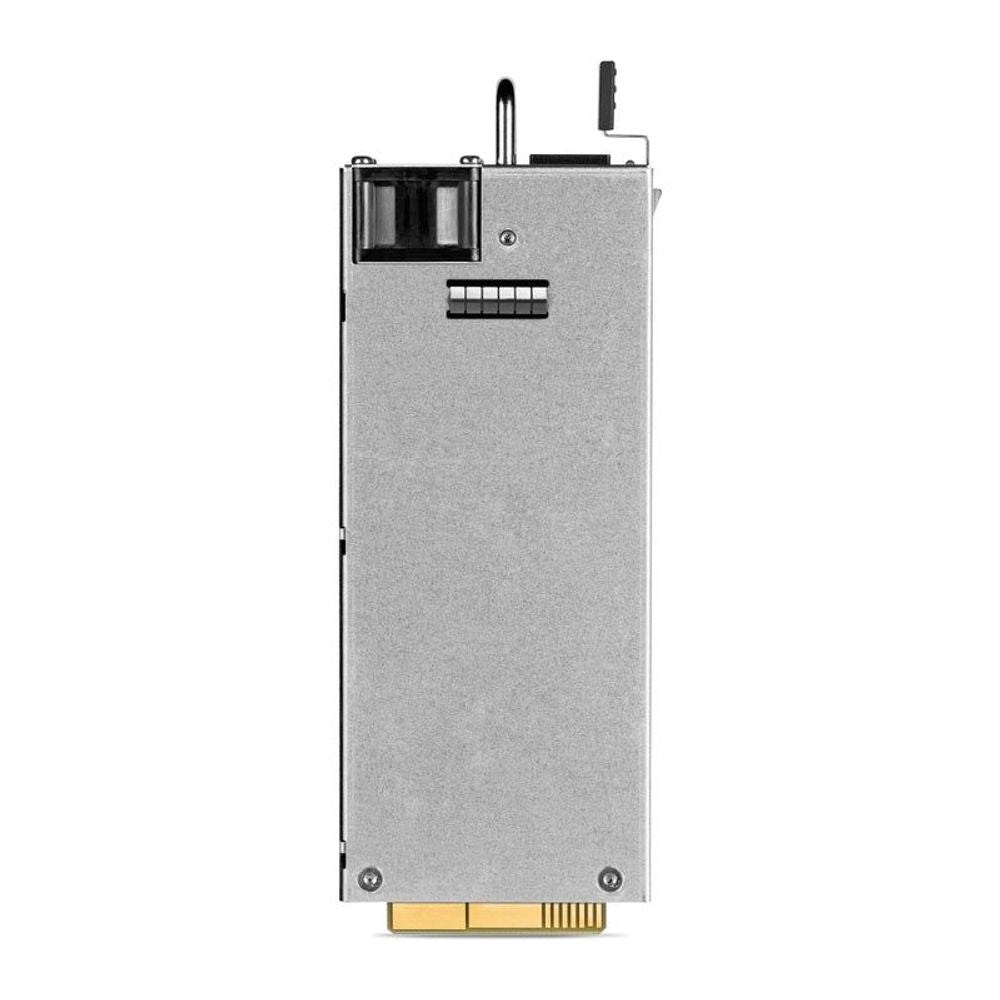

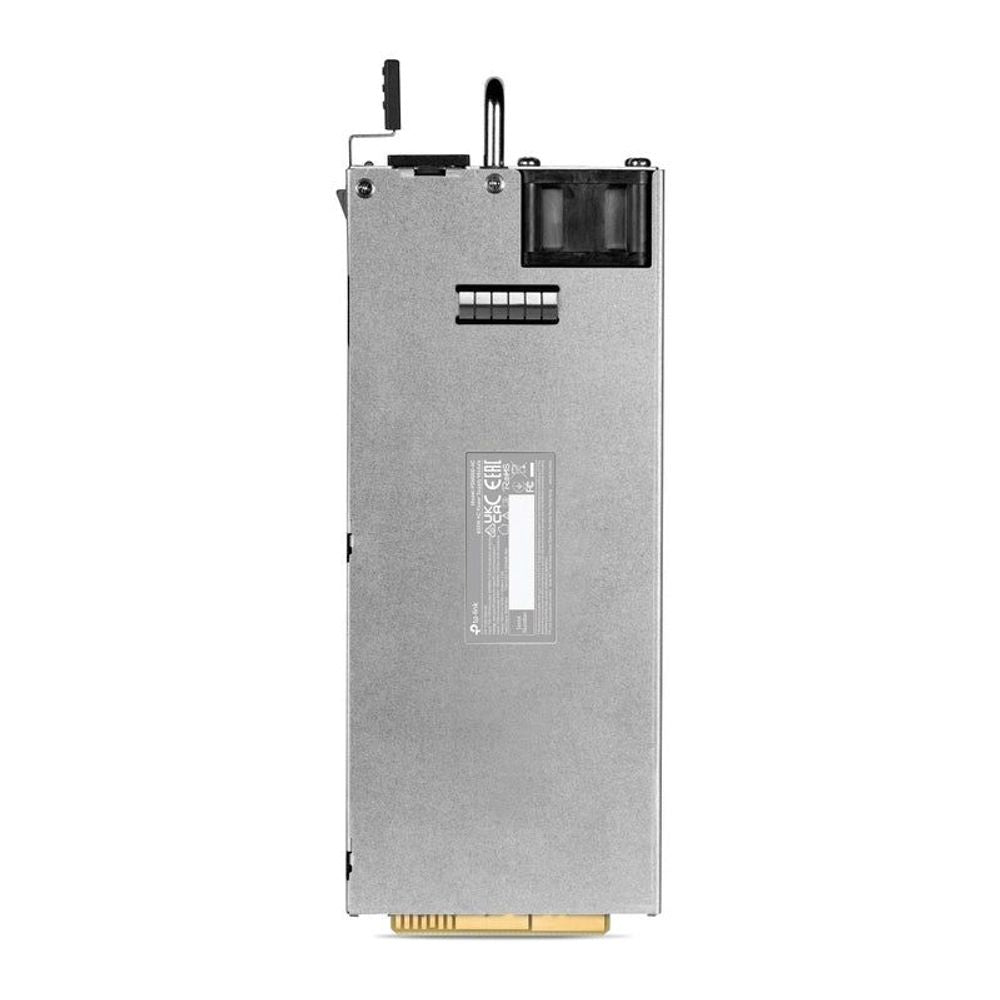

900W AC Power Supply Module

Up to 900 watts output power
Hot swappable
53.5 V DC output voltage
Output over-voltage/under-voltage/short circuit/over-current protection
Suitable for SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, S6500-48MPP6Y

What This Product Does

The TP-Link Power Supply Module PSM900-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 53.5 Volts with a maximum output power of 900 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple TP-Link Omada and TP-Link Omada Pro switch models, such as SG6428XHP, SG6654XHP, S6500-24GP4XF, 6500-48GP6XF, S6500-24MPP4Y, and S6500-48MPP6Y.

HARDWARE FEATURES
LED	Multi-function indication

REDUNDANT POWER SUPPLY
AC Power Input	• 100-120V(include)~ 50/60Hz 12A (for locations using low voltage) • 120(not include)-240V~ 50/60Hz 10A (for other locations)
DC Power Output	53.5 V/16.5 A
Dimensions	259.595.840.1 mm
Maximum Power Output	900W
Environment	• Operating Temperature: 0˚C–45˚C (32˚F to 113˚F) • Storage Temperature: -40℃–70℃ (-40℉~158℉) • Operating Humidity: 10%–90% RH, Non-condensing • Storage Humidity: 5%–90% RH, Non-condensing

Warranty

Brand

TP-LINK

Restock ETA (if applicable)

Product Details

Specifications

TP-LINK
HeadingTL-PSM900-AC - TP LINK PSM900-AC 900W AC Power Supply Module

Description

900W AC Power Supply Module

Up to 900 watts output power
Hot swappable
53.5 V DC output voltage
Output over-voltage/under-voltage/short circuit/over-current protection
Suitable for SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, S6500-48MPP6Y

What This Product Does

HARDWARE FEATURES
LED	Multi-function indication

REDUNDANT POWER SUPPLY
AC Power Input	• 100-120V(include)~ 50/60Hz 12A (for locations using low voltage) • 120(not include)-240V~ 50/60Hz 10A (for other locations)
DC Power Output	53.5 V/16.5 A
Dimensions	259.595.840.1 mm
Maximum Power Output	900W
Environment	• Operating Temperature: 0˚C–45˚C (32˚F to 113˚F) • Storage Temperature: -40℃–70℃ (-40℉~158℉) • Operating Humidity: 10%–90% RH, Non-condensing • Storage Humidity: 5%–90% RH, Non-condensing
