Name: TL-POE150S - TP-Link Single port PoE Supplier Adapter (Injector), IEEE 802.3af compliant, up to 100m
Brand: TP-LINK
SKU: TL-POE150S
Price: 40.79 NZD
Availability: InStock

TP-Link single-port PoE injector, black with Ethernet ports and status LEDs.

PoE injector connection diagram with power and data routes to access point, phone, camera.

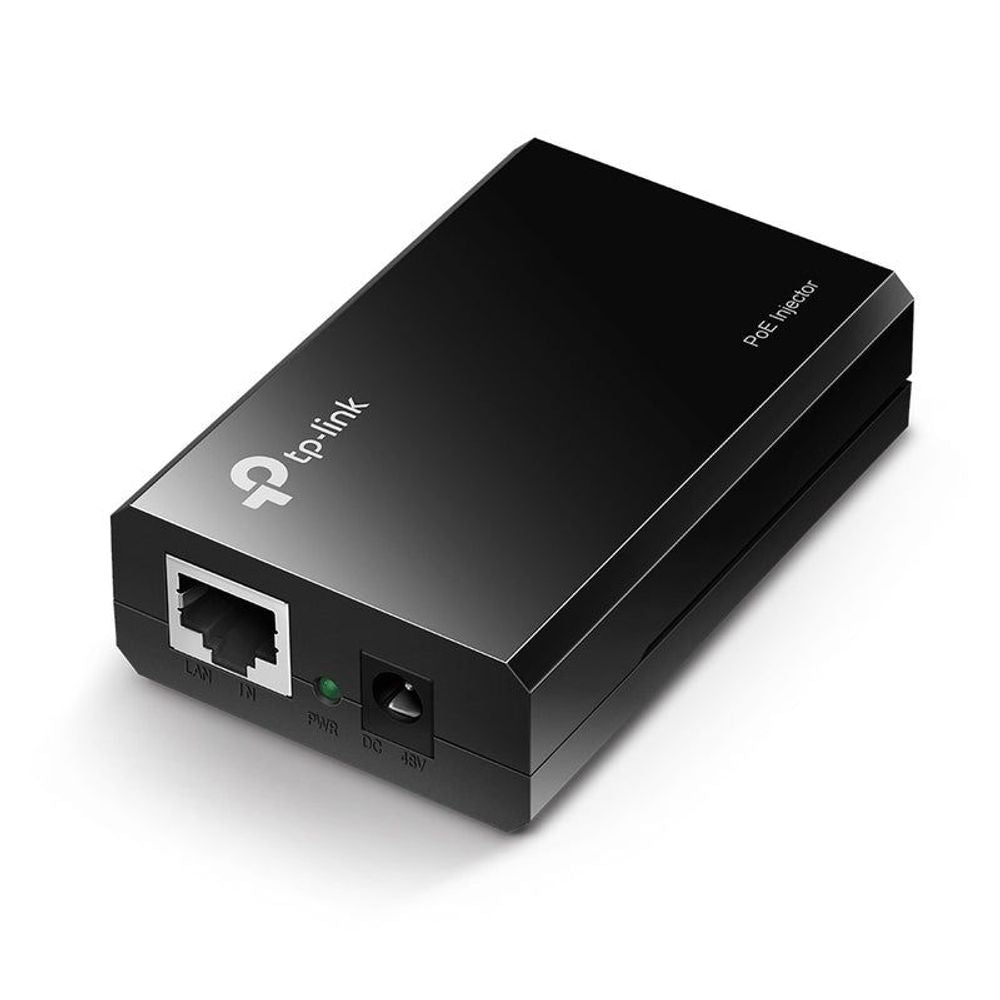

TP-Link Gigabit PoE injector, black housing with front Ethernet ports and PWR LED.

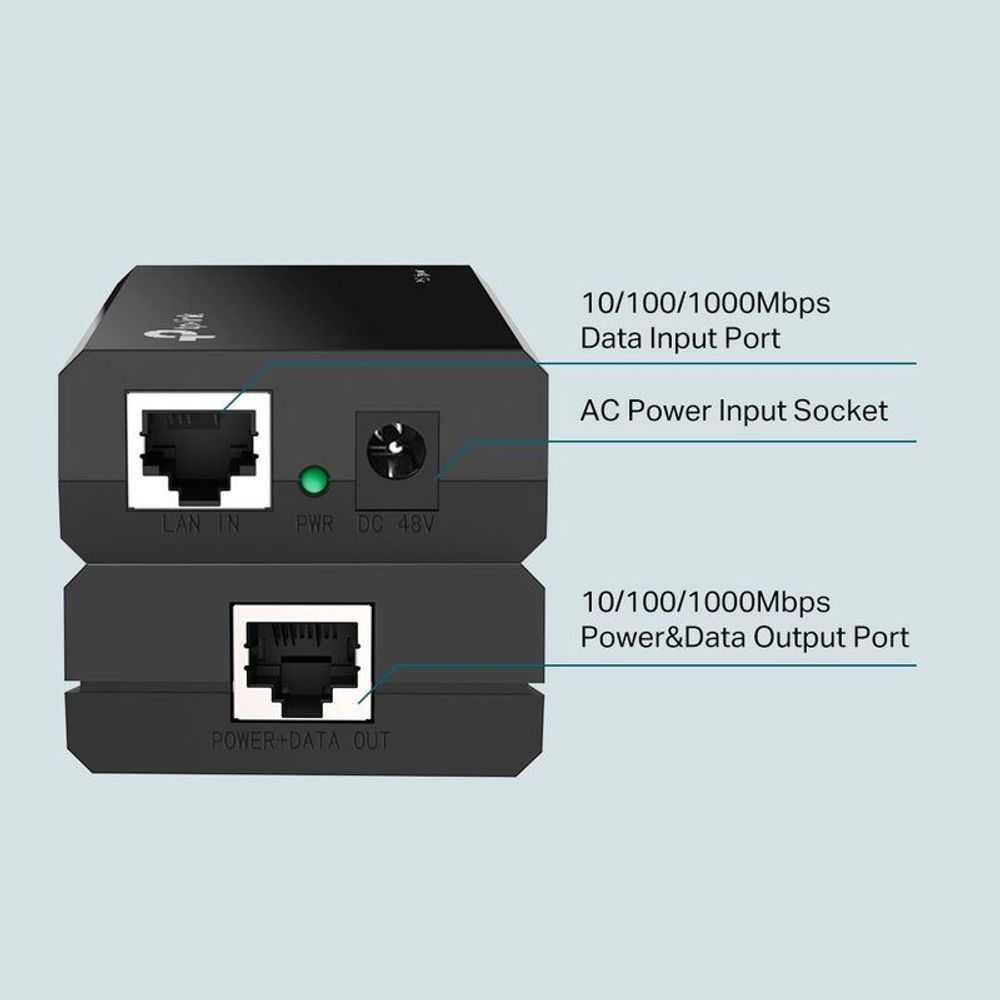

PoE injector rear panel close-up with LAN-in, power/data out ports and DC socket.

PoE injector multiple applications infographic for Wi‑Fi, surveillance, and VoIP use.

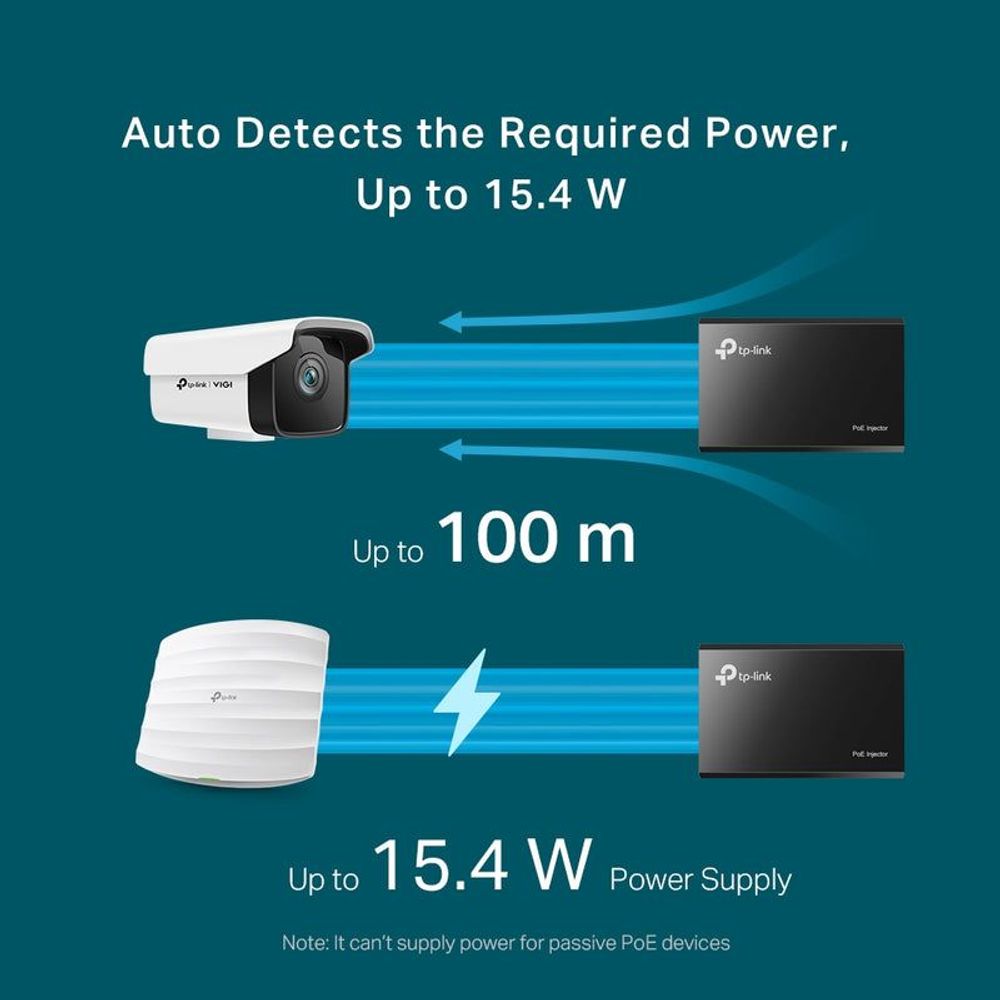

PoE injector infographic showing 100 m reach and up to 15.4 W power delivery.

TP-Link Gigabit PoE injector retail box with product image of black injector.

TL-POE150S - TP-Link Single port PoE Supplier Adapter (Injector), IEEE 802.3af compliant, up to 100m

TL-POE150S

$40.79

Tax included.

In stock, ready to be shipped

Select quantity

Description

TP-Link TL-POE150S – PoE Injector

Highlights

IEEE 802.3af compliant
Auto-determine the necessary power requirements
Gigabit speed support
Plug-and-Play, requires no configuration

What This Product Does

The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

HARDWARE FEATURES
Interface	2 10/100/1000Mbps RJ45 Port AUTO Negotiation/AUTO MDI/MDIX 1 48VDC POWER INPUT PORT
Network Media	10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Power Supply	15.4W (Max. 48VDC)
LED Indicator	PWR
Dimensions ( W x D x H )	3.22.10.9 in.(80.85424 mm)

SOFTWARE FEATURES
Basic Function	Compatible With IEEE 802.3af Compliant PDs Delivers Power Up To 100 Meters Auto-Determine The Necessary Power Requirements

OTHERS
Certification	FCC, CE, RoHS
Package Contents	Gigabit PoE Injector TL-POE150S Power Adapter RJ45 Cable Installation Guide
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

For additional version information, please go to the support page.
