Omada Hardware Controller

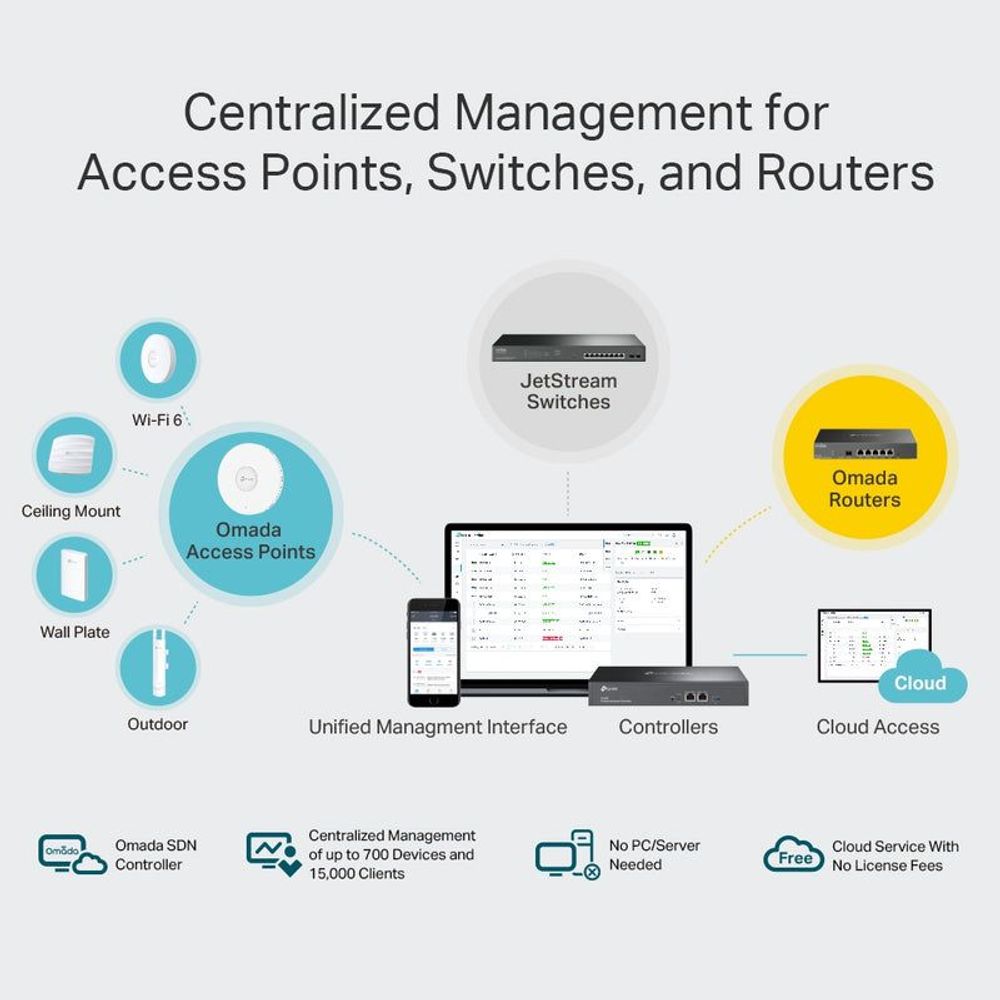

Centralised management for up to 500 Omada access points, JetStream switches, and SafeStream routers.

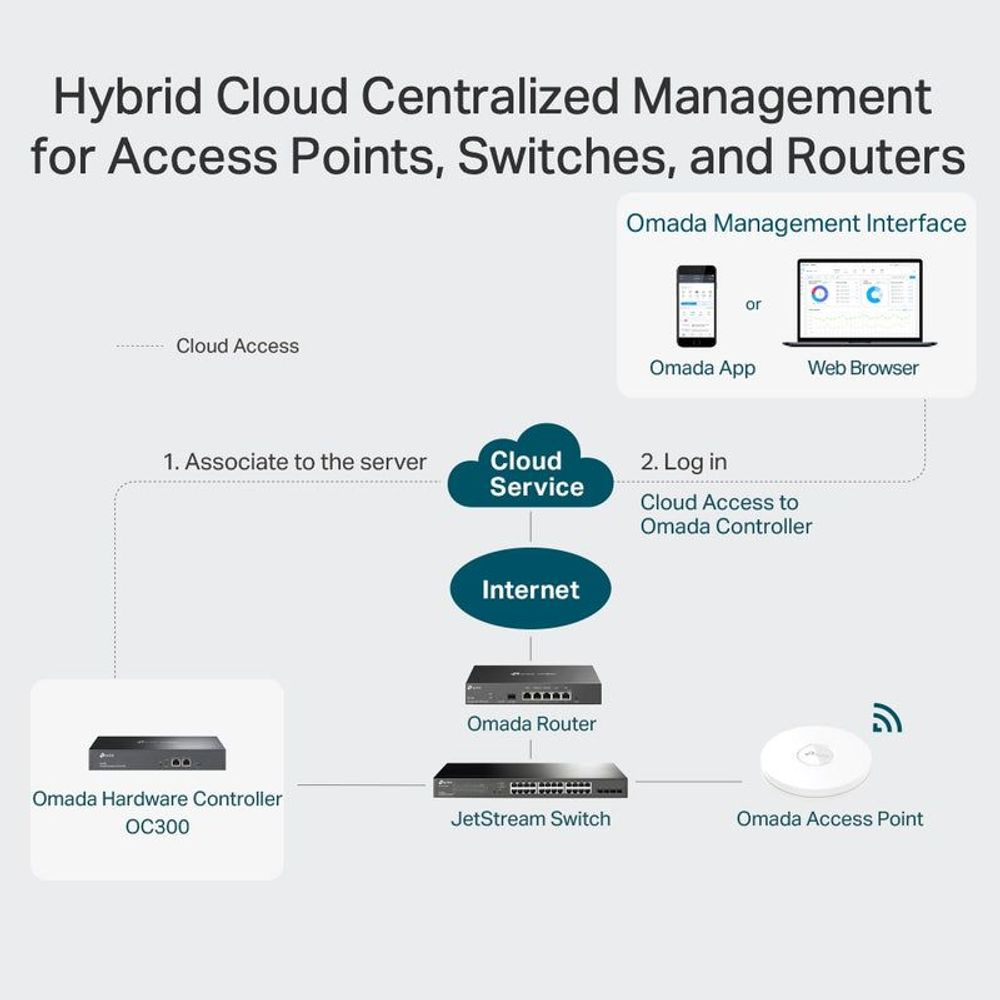

Cloud access to manage from anywhere, anytime.
Locally monitor and manage devices with the ultimate security and stability.
The Omada app for convenient management.

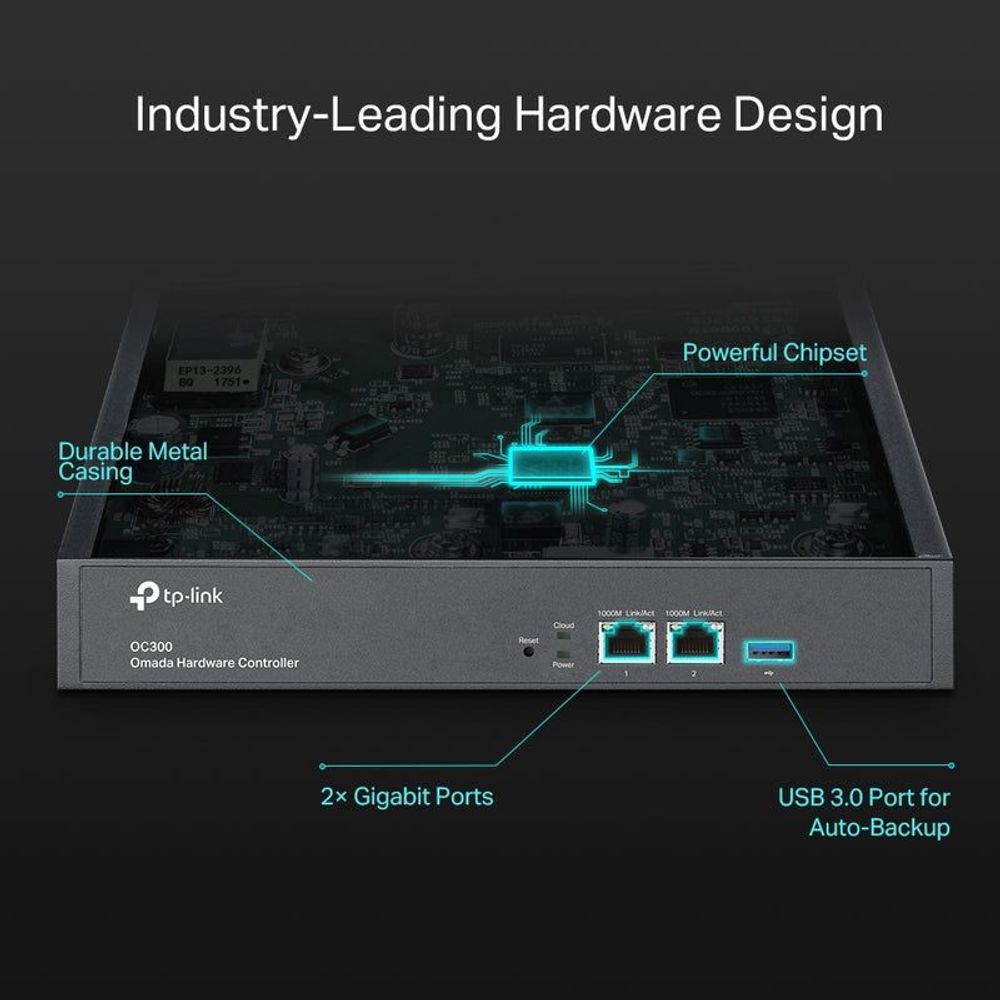

Industry-leading hardware design with a powerful chipset, durable metal casing, and USB 3.0 port for auto backup.

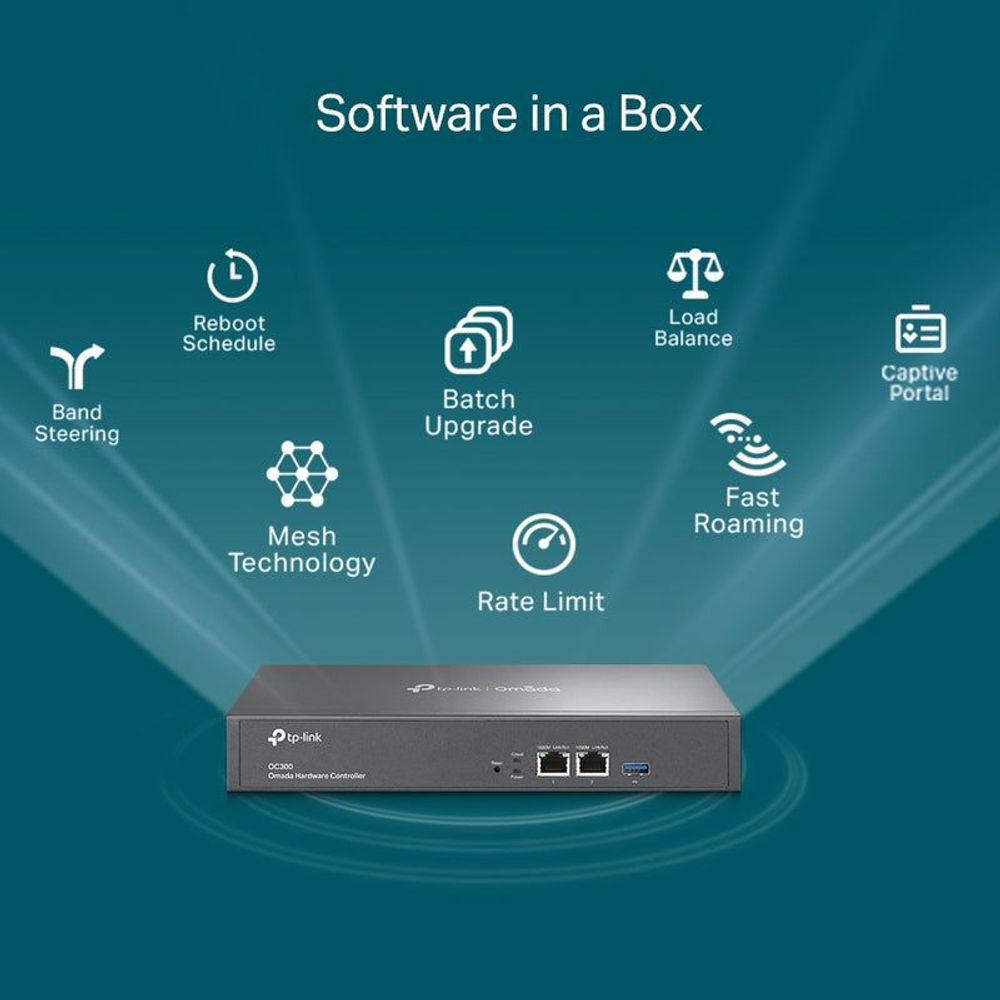

Batch management, multi-site management, and remote firmware updates benefit network maintenance.
The easy-to-use dashboard makes it easy to see your real-time network status and check network usage and traffic distribution.
Network topology helps IT admins quickly see and troubleshoot connections at a glance.

HARDWARE FEATURES

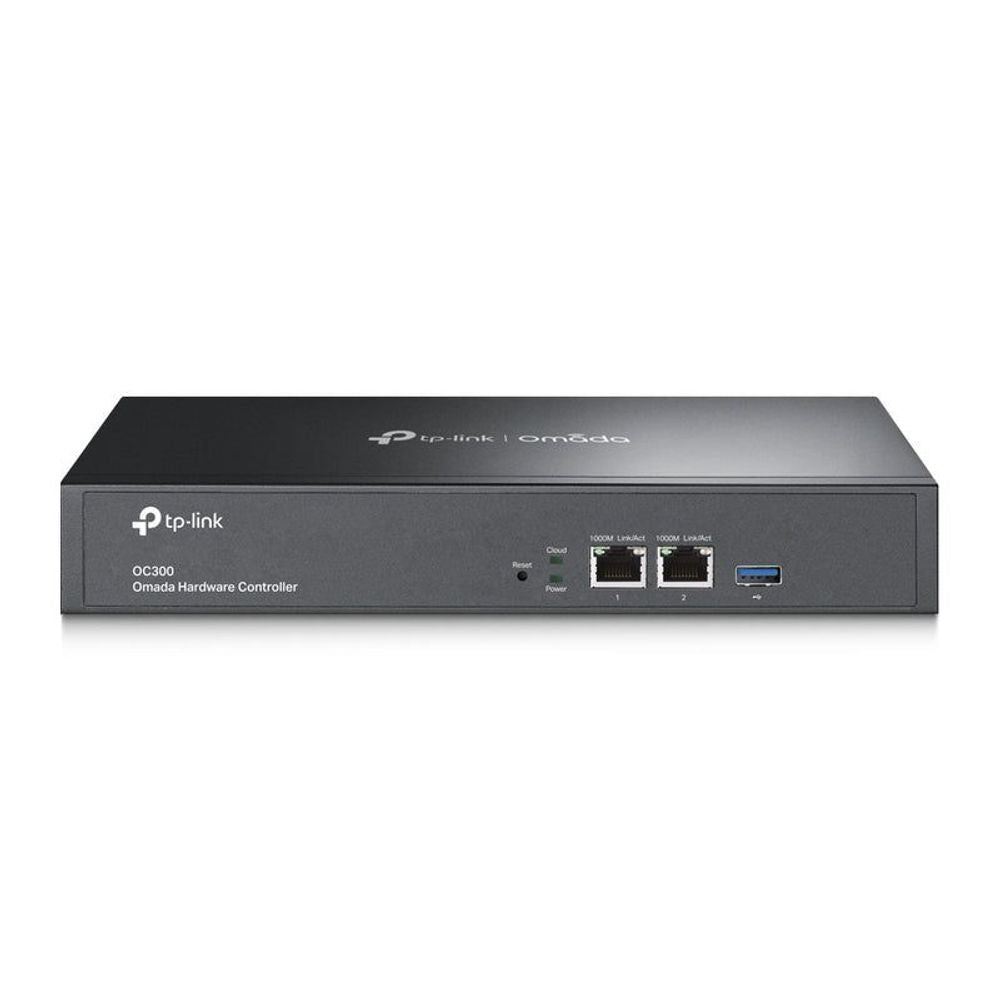

Interface	• 2× 10/100/1000 Mbps Ethernet Ports • 1× USB 3.0 Port

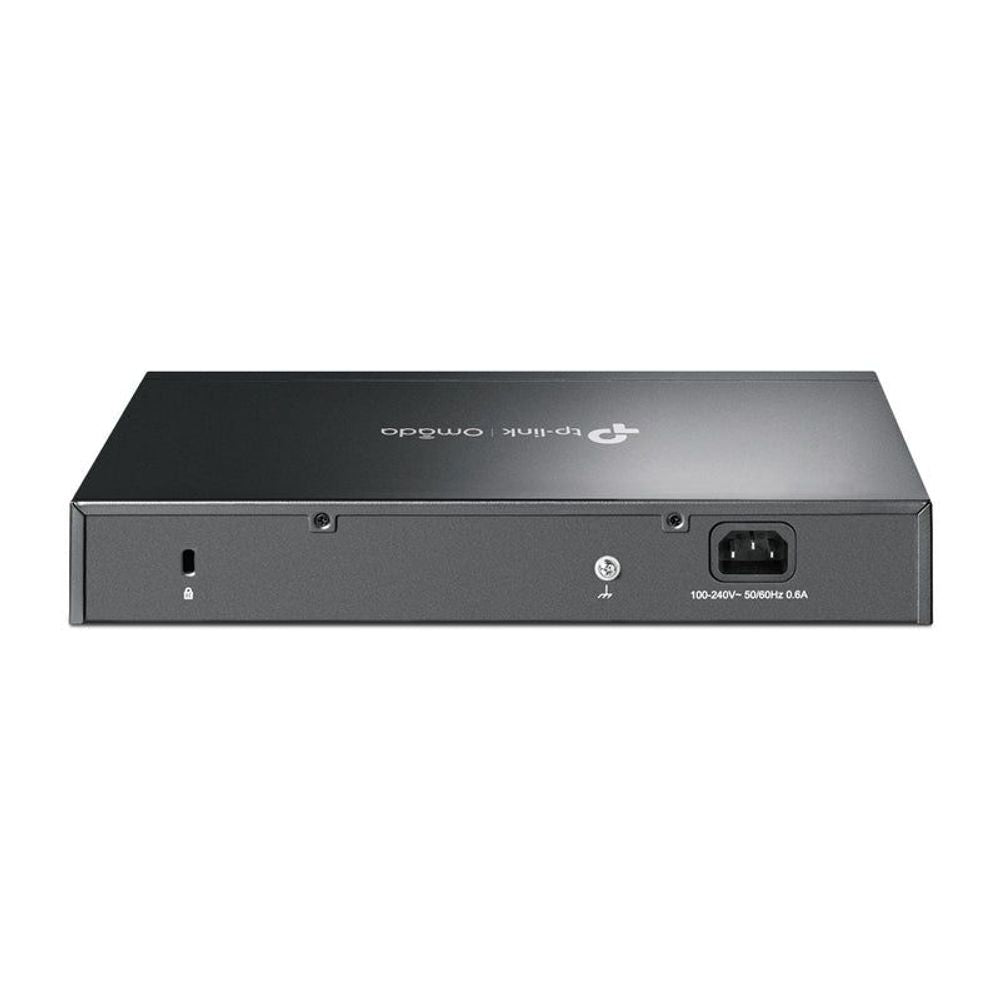

Power Supply	100–240 V~50/60 Hz, 0.6 A
Dimensions	11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)

MANAGEMENT
Omada App	Yes
Centralized Management	• Up to 500 Omada access points, 100 JetStream switches, and 100 Omada routers* • Up to 15,000 clients *Refer to www.tp-link.com/en/business-networking/all-omada/ to find all the models supported by OC300
Cloud Access	Yes
L3 Management	Yes
Multi-site Management	Yes
Management Features	• Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• Omada Hardware Controller OC300 • Quick Installation Guide • Ethernet Cable • Power Cord • Rackmount Kit
System Requirements	Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Environment	• Operating Temperature: 0–50 ℃ (32–122 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

For additional version information, please go to the support page.

Warranty

Brand

TP-LINK

Restock ETA (if applicable)

Product Details

Specifications

TP-LINK
HeadingTL-OC300 - TP-Link Omada Hardware Controller PORT: 2× 10/100/1000 Mbps Ethernet Ports, 1× USB 3.0 Port

Description

Omada Hardware Controller

Centralised management for up to 500 Omada access points, JetStream switches, and SafeStream routers.
Cloud access to manage from anywhere, anytime.
Locally monitor and manage devices with the ultimate security and stability.
The Omada app for convenient management.
Industry-leading hardware design with a powerful chipset, durable metal casing, and USB 3.0 port for auto backup.
Batch management, multi-site management, and remote firmware updates benefit network maintenance.
The easy-to-use dashboard makes it easy to see your real-time network status and check network usage and traffic distribution.
Network topology helps IT admins quickly see and troubleshoot connections at a glance.

HARDWARE FEATURES
Interface	• 2× 10/100/1000 Mbps Ethernet Ports • 1× USB 3.0 Port
Power Supply	100–240 V~50/60 Hz, 0.6 A
Dimensions	11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)

MANAGEMENT
Omada App	Yes
Centralized Management	• Up to 500 Omada access points, 100 JetStream switches, and 100 Omada routers* • Up to 15,000 clients *Refer to www.tp-link.com/en/business-networking/all-omada/ to find all the models supported by OC300
Cloud Access	Yes
L3 Management	Yes
Multi-site Management	Yes
Management Features	• Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• Omada Hardware Controller OC300 • Quick Installation Guide • Ethernet Cable • Power Cord • Rackmount Kit
System Requirements	Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Environment	• Operating Temperature: 0–50 ℃ (32–122 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
