Gigabit Multi-Mode Media Converter

Complies with IEEE 802.3ab and IEEE 802.3z
Provides switch configuration of Force /Auto transfer mode for FX port
Extends fiber distance up to 0.55km

What This Product Does

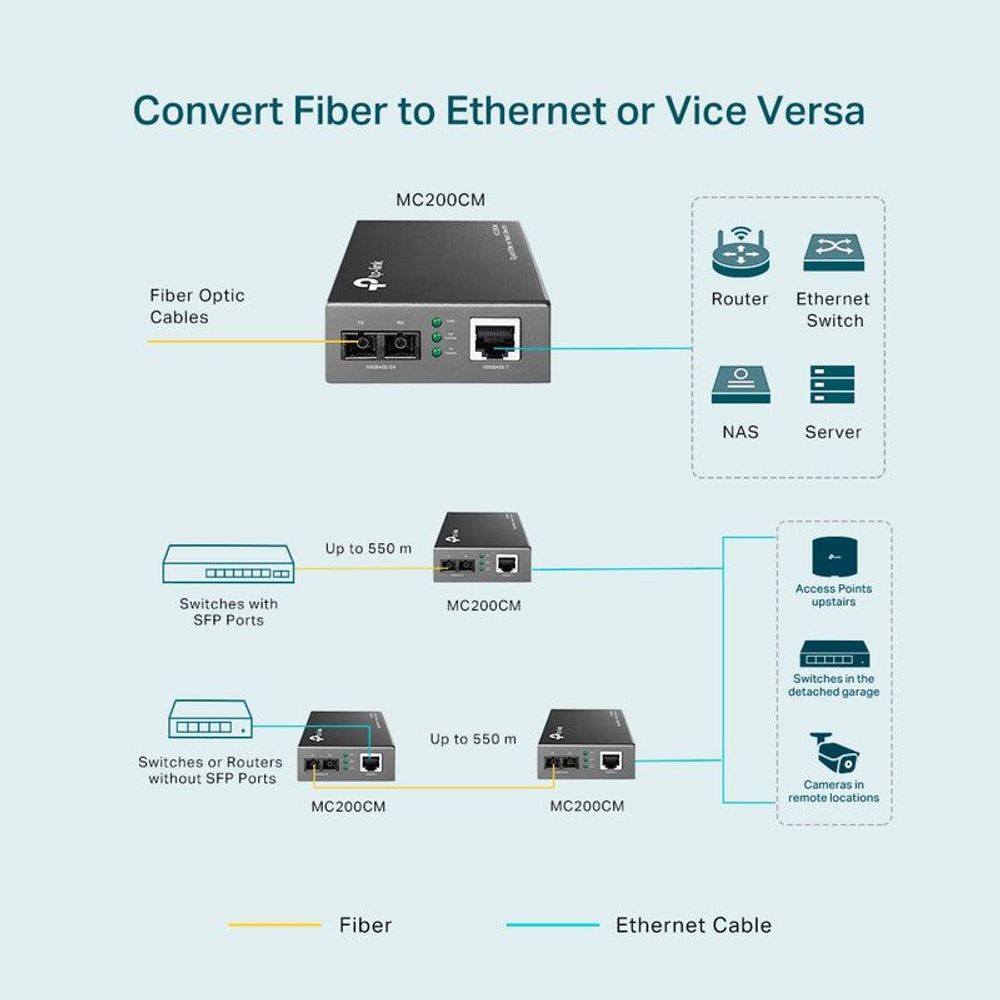

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.

MEDIA CONVERTER & MODULE
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Basic Function	Extends fibre distance up to 0.55km using 50/125um fibre Extends fibre distance up to 0.22km using 62.5/125um fibre

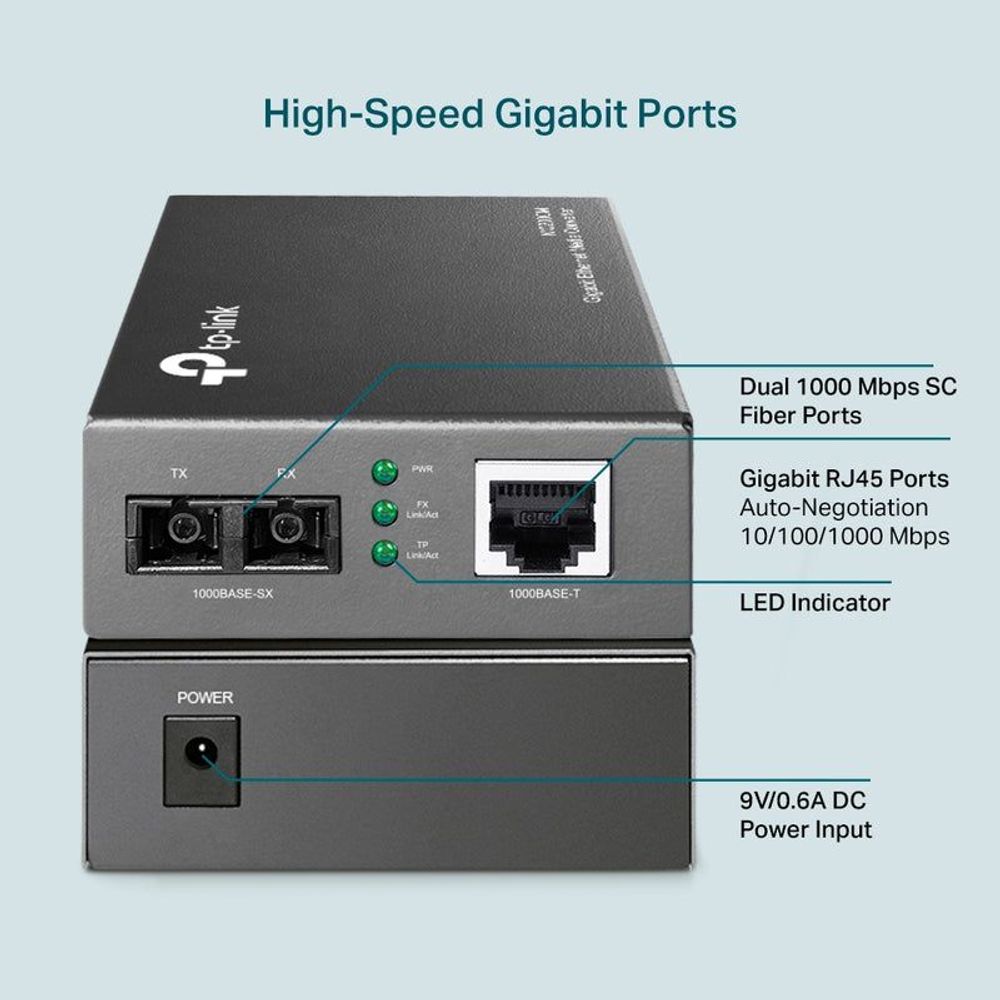

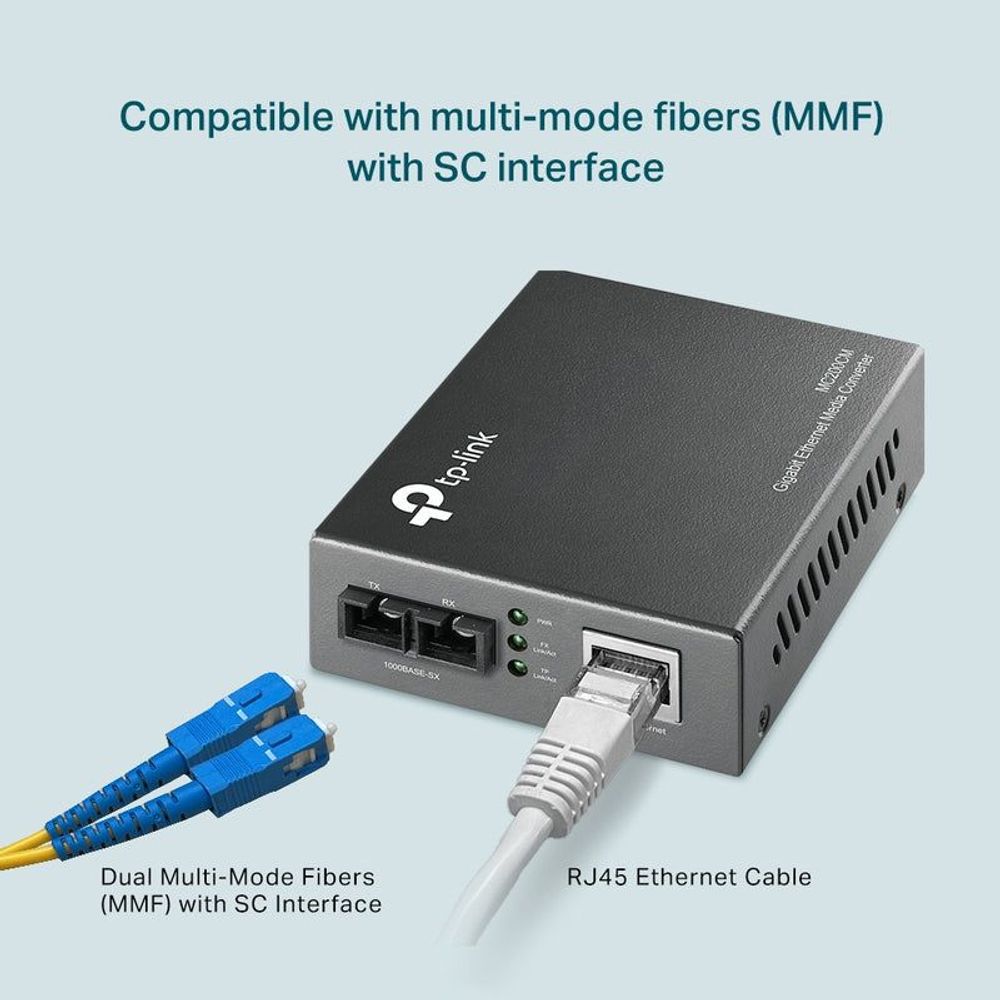

Ports	1 1000M SC/UPC port 1 1000M RJ45 port (Auto MDI/MDIX)
Wave Length	850nm
Network Media 1000BASE-SX	Multi-mode Fiber
Network Media 1000BASE-T	UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicators	PWR, Link/Act
Dimensions (WDH)	3.72.91.1 in. (94.573.027.0 mm)
Power Supply	External Power Adapter
Max Power Consumption	1.66W
Safety & Emission	FCC, CE, RoHS
Package Contents	• Media Converter MC200CM • Power Adapter • Installation Guide
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

OTHERS
Warranty	Limited 3-Year Warranty For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma

For additional version information, please go to the support page.

Warranty

Brand

TP-LINK

Restock ETA (if applicable)

Product Details

Specifications

TP-LINK
HeadingTL-MC200CM - TP-Link Gigabit Ethernet Media Converter (SC, multi-mode) Extends Up to 550 meters

Description

Gigabit Multi-Mode Media Converter

Complies with IEEE 802.3ab and IEEE 802.3z
Provides switch configuration of Force /Auto transfer mode for FX port
Extends fiber distance up to 0.55km

What This Product Does

MEDIA CONVERTER & MODULE
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Basic Function	Extends fibre distance up to 0.55km using 50/125um fibre Extends fibre distance up to 0.22km using 62.5/125um fibre
Ports	1 1000M SC/UPC port 1 1000M RJ45 port (Auto MDI/MDIX)
Wave Length	850nm
Network Media 1000BASE-SX	Multi-mode Fiber
Network Media 1000BASE-T	UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicators	PWR, Link/Act
Dimensions (WDH)	3.72.91.1 in. (94.573.027.0 mm)
Power Supply	External Power Adapter
Max Power Consumption	1.66W
Safety & Emission	FCC, CE, RoHS
Package Contents	• Media Converter MC200CM • Power Adapter • Installation Guide
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
