Name: TL-EAP211-BRIDGEKIT - TP-Link EAP211-Bridge KIT Wireless Bridge 5 GHz 867 Mbps Indoor/Outdoor Access Point
Brand: TP-LINK
SKU: TL-EAP211-BRIDGEKIT
Price: 444.35 NZD
Availability: OutOfStock

TP-Link EAP211 wireless bridge kit, white dual units with tp-link logos

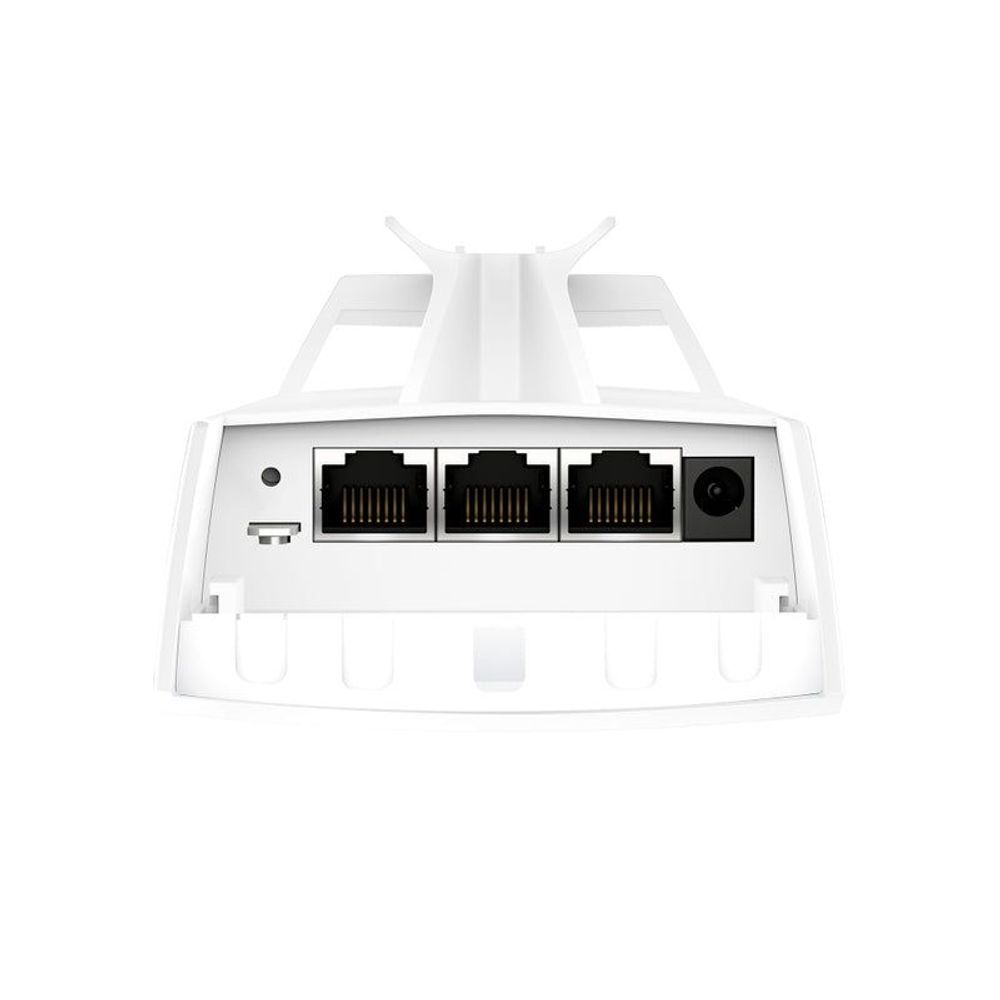

TP-Link EAP211 access panel with three RJ45 LAN ports and power coax on base

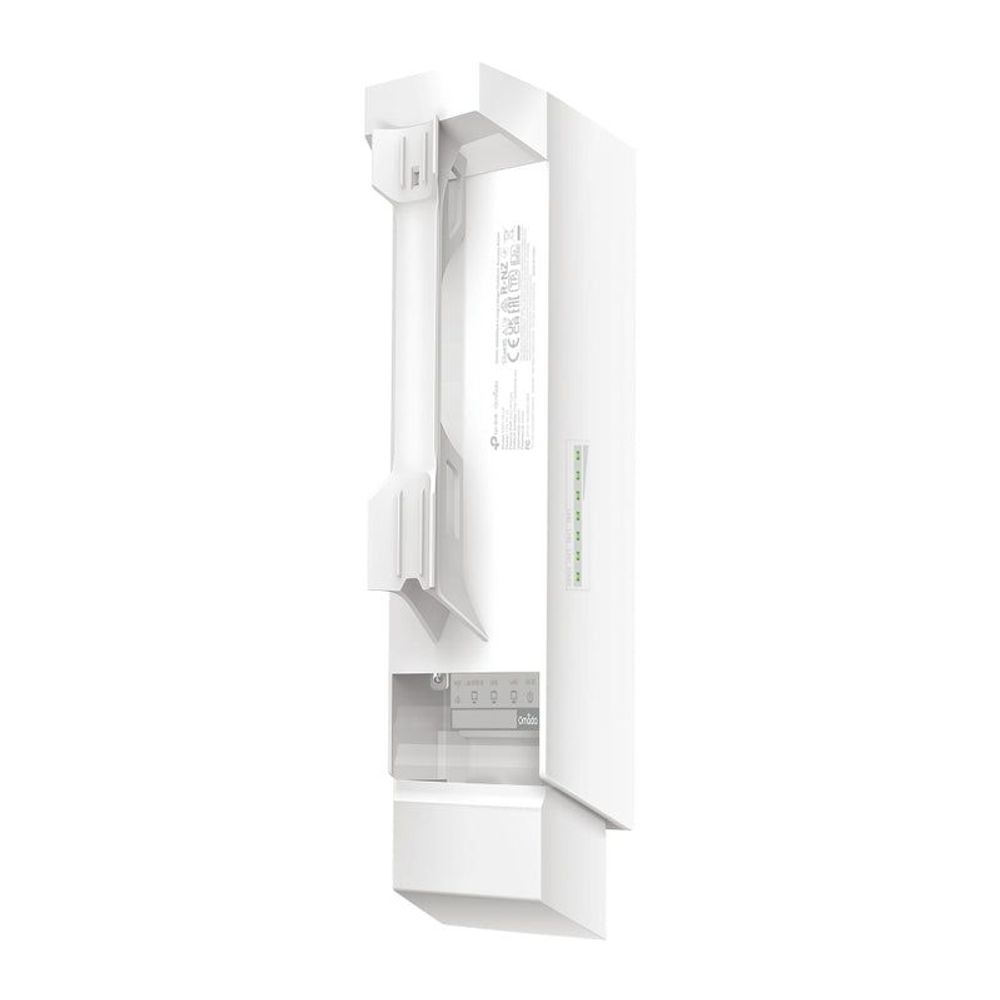

TP-Link EAP211 wireless bridge, side view with open mounting bracket and labels

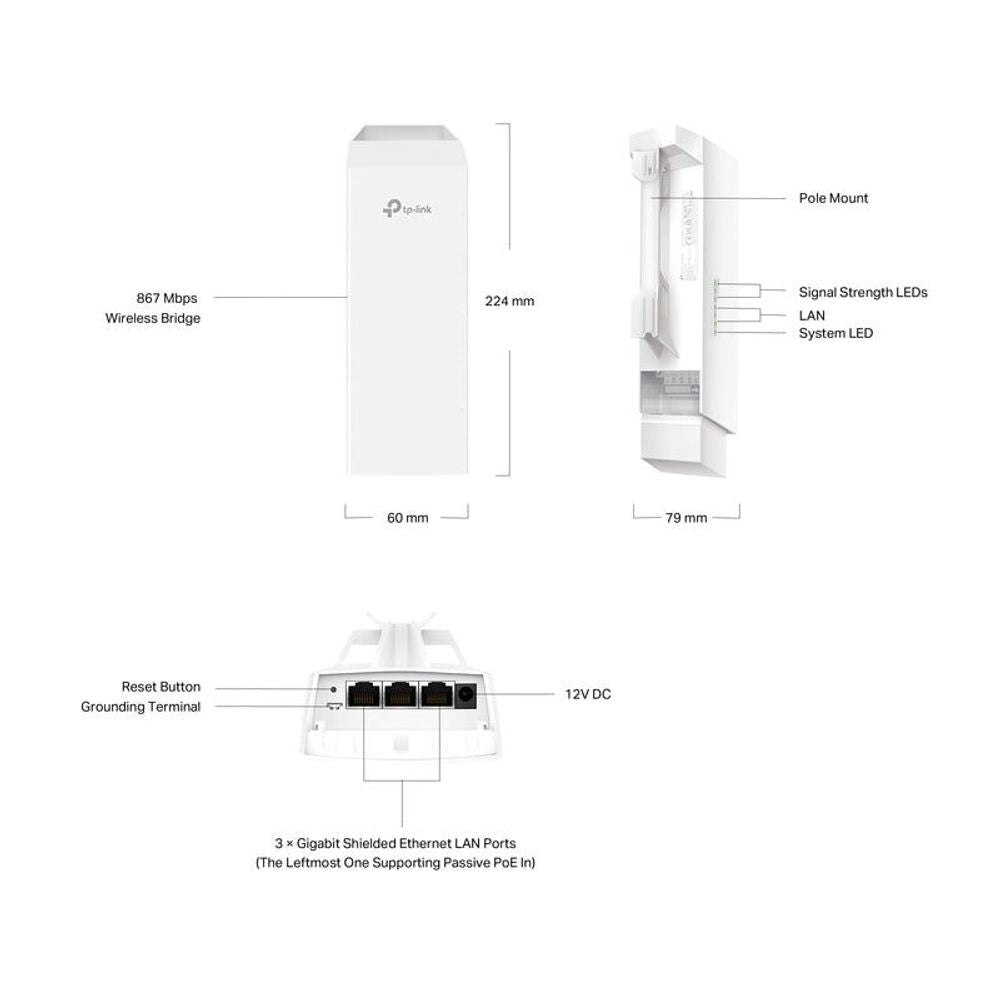

TP-Link EAP211 bridge kit diagram showing LEDs, LAN ports, and 12V DC

TL-EAP211-BRIDGEKIT - TP-Link EAP211-Bridge KIT Wireless Bridge 5 GHz 867 Mbps Indoor/Outdoor Access Point

TL-EAP211-BRIDGEKIT

$444.35

Tax included.

Out of stock

Select quantity

Description

EAP211-Bridge KIT

Wireless Bridge 5 GHz 867 Mbps Indoor/Outdoor Access Point

802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.^*1
Ideal for long-range wireless transmission up to 1 km.^*2
Auto-pairing and agile LEDs for efficient deployment.
3× Gigabit Ethernet ports for more high-speed IP camera connections.
Supports Omada SDN for remote and centralized management.
IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.^*3
Supports Passive PoE for flexible deployment (adapter included).

HARDWARE FEATURES
Interface	3x Gigabit Ethernet Ports
Button	Reset
Power Supply	12V DC / 24V Passive PoE (Passive PoE adapter included.)
Dimensions ( W x D x H )	8.8 x 3.1 x 2.4 in (224 × 79 × 60 mm)
Antenna Type	Internal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 7.0 dBi
Mounting	Pole Mounting (Accessories included)

WIRELESS FEATURES
Wireless Standards	IEEE 802.11 a/b/g/n/ac
Frequency	5 GHz
Signal Rate	5 GHz: Up to 867 Mbps
Wireless Functions	• Mesh^*4 • MU-MIMO: 5G 2x2 MU-MIMO DL • Load Balance • Beamforming • Airtime Fairness • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP
Wireless Security	• VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication^*4 • Maximum number of MAC Filter: 4,000 • WPA-Personal/Enterprise, WPA2-Personal/Enterprise
Transmission Power	• CE: <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz band3, EIRP); • FCC: <22dBm (5 GHz band1/4)

MANAGEMENT
Omada App	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
SSH	Yes
Web-based Management	Yes

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• EAP211-Bridge KIT • Passive PoE Adapter • Power Cord • Installation Guide • Mounting Kit
Environment	• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing

For additional version information, please go to the support page.

1. Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications, along with the number of connected devices, were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles; 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection quality, and client condition.

2. All products are tested in real outdoor environments. Actual range and throughput depend on the transmission power and environmental factors such as wireless interference, obstacles, weather, etc.

3. Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding, and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.

4. These functions require the use of an Omada SDN controller.
