Technical Spec :

Heatsink Specifications:

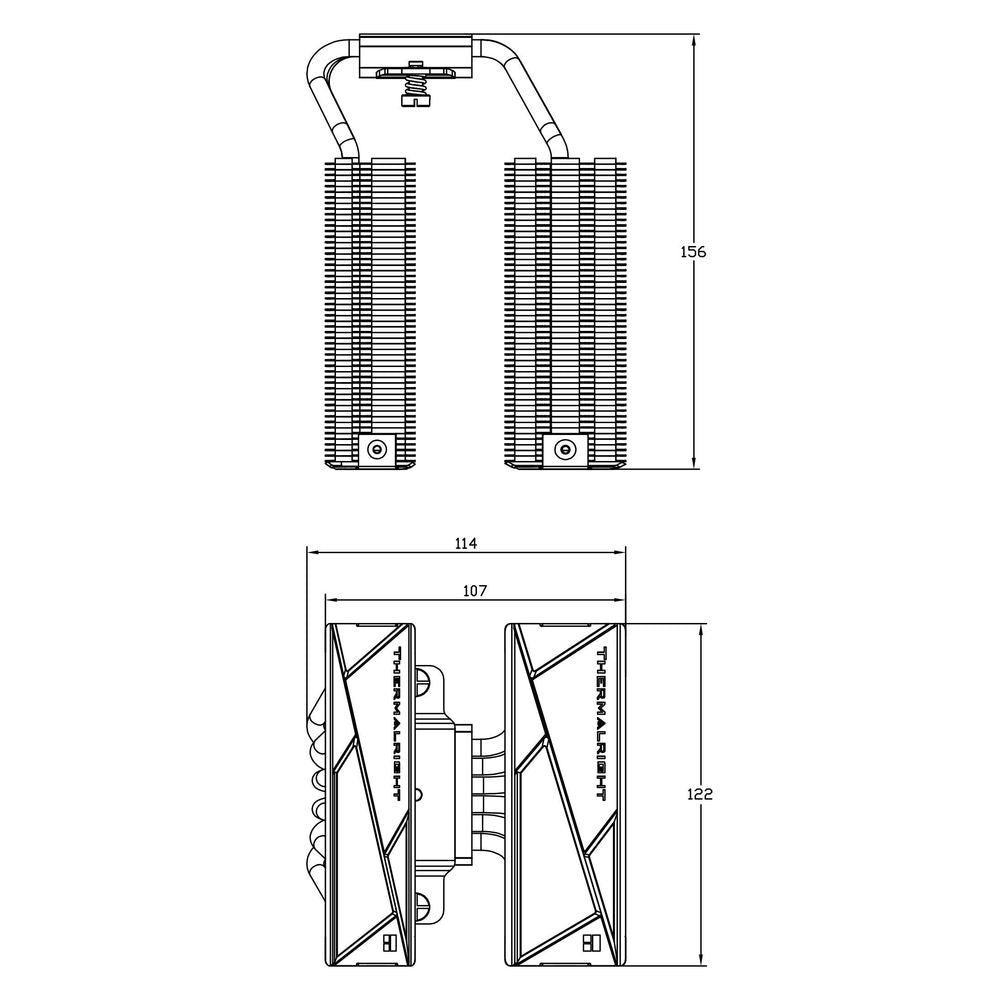

Dimension：L122 mm x W114 mm x H156 mm
Heat pipes：6mm heatpipe x 6 units
Copper Base：C1100 Pure copper nickel plated

TL-H12-X28 FAN Spec：
Dimension：L120 mm x W120 mm x H28 mm
Rated Speed：2150 RPM±10% (MAX)
Noise Level：29.4 dBA
Air Flow：80.45 CFM (MAX)
Air Pressure：2.65 mm H2O (MAX)
Connector：4 Pin (PWM Fan connector)
Bearing Type : S-FDB V2 Bearing

TL-H12015B FAN Spec：
Dimension：L120 mm x W120 mm x H15 mm
Rated Speed：1900 RPM±10% (MAX)
Noise Level：28.4 dBA
Air Flow：56.36 CFM (MAX)
Air Pressure：1.58 mm H2O (MAX)
Connector：4 Pin (PWM Fan connector)
Bearing Type : S-FDB V2 Bearing

Intel：LGA115X/1200/1700/1851/2011/2066

Thermalright
