Gigabit PCI Express Network Adapter

10/100/1000Mbps PCIe Adapter
32-bit PCIe interface, saving the finite chassis space
Wake-on-LAN, convenient to manage over LAN

HARDWARE FEATURES
Interface	PCI Express, 1 × 10/100/1000 Mbps RJ45 Port, Auto-Negotiation, Auto MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED	Status
Wireless Standards	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Data Rates	10/100/1000Mbps for Half-Duplex mode, 20/200/2000Mbps for Full-Duplex mode
Dimensions	3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm)
Flow Control	IEEE 802.3x Flow Control (Full-Duplex)

OTHERS
Certification	FCC, CE, RoHS, BSMI, VCCI

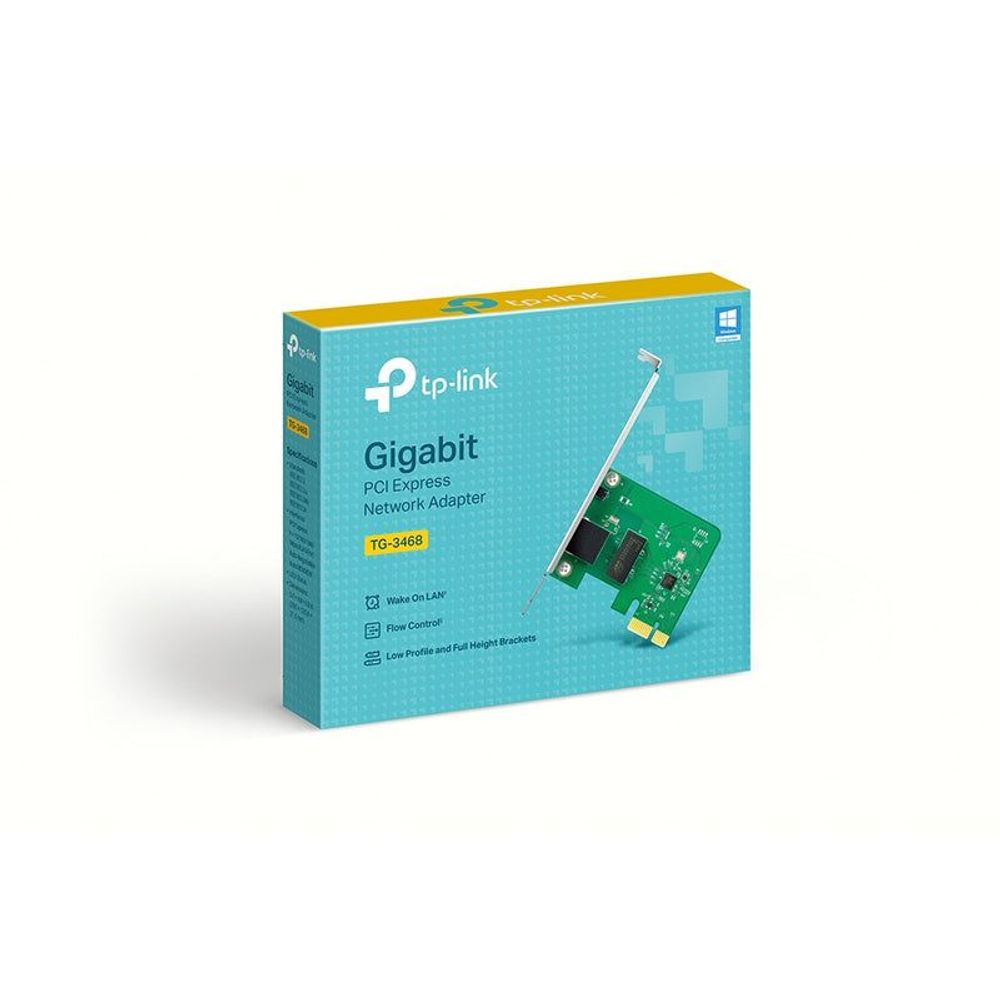

Package Contents	Gigabit PCI Express Network Adapter TG-3468 Quick Installation Guide Resource CD Low-profile Bracket
System Requirements	Windows 10/8.1/8/7
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

For additional version information, please go to the support page.

†Maximum wired data throughput rates are the physical rates derived from IEEE Standard 802.3 specifications. Actual wired data throughput is not guaranteed and will vary as a result of environmental factors, Ethernet cable class, and computer performance.
‡Use of Wake on LAN requires your mainboard to also support the corresponding feature
§Use of Flow Control requires devices to also support the corresponding feature
△To ensure compatibility, you may need to update the adapter’s drivers after an OS update. You can check the full list of the supported OS in the download center at tp-link.com/download-center
