Name: Teltonika iButton Reader
Brand: Teltonika Telematics
SKU: PPEX00000060
Price: 39.1 NZD
Availability: InStock

Teltonika iButton Reader

PPEX00000060

$39.10

Tax included. Shipping calculated at checkout.

11 items available

Select quantity

Description

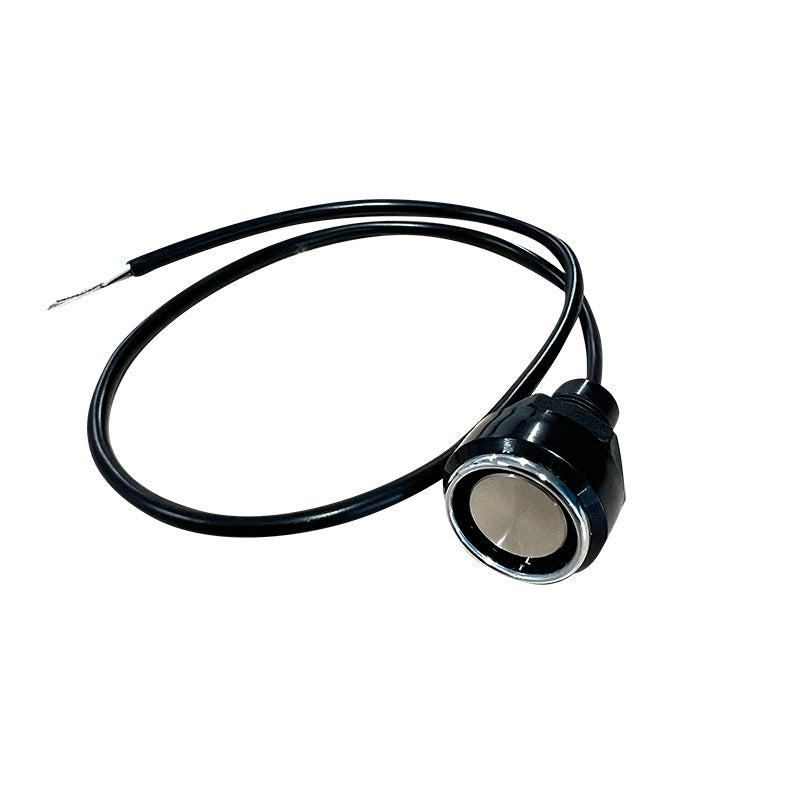

Teltonika iButton Reader PPEX00000060

Teltonika iButton Magnetic Key tag reader. One of the implemented features for fleet management devices is 1-Wire data protocol, which enables connection of iButton. The iButton IoT device is perfect for any application where AVL data needs to travel along with a person or object identification. One of the implemented features for fleet management devices is 1-Wire data protocol, which can be used for iButton reading. It is the most straight-forward way to implement driver authorization in your vehicles. To connect the 1-wire iButton reader, simply connect the 1-Wire Signal wire from the reader to the 1-Wire Data pin on the device, and connect the ground wire to the same grounding used for the device.

Features

Immobilizer - prevent anyone from starting the vehicle without scanning an iButton first.
Authorized driving - keep track of who is driving your vehicle according to the iButton ID they use to authenticate themselves.
AutoGeofencing – gives ability to know when car leaves customized areas without iButton authorization.

Details
Product Code	PPEX00000060
Interface	White wire – 1-wire signal, Brown wire - Ground
Case material	Plastic (polyacetal)
Ring material	Ferrite steel with chrome plating
Signal joint material	Brass with chrome plating
Wire dimensions	2 wires Ø 0,25 mm2, 40 cm length
Fastening method	M12 screw, tape, glue, etc.
Operating temperature	From -40 ºC to +85 ºC
supported 1-Wire commands	0x33 (0x0F) - Read ROM, 0xF0 - Search ROM
Operating humidity	5% to 95% non-condensing
Regulatory	RoHS certified
