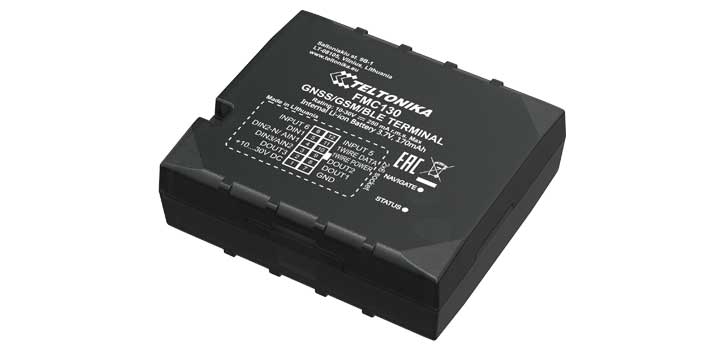

Name: Teltonika FMC130 Advanced LTE terminal with flexible inputs Configuration
Brand: Teltonika Telematics
SKU: FMC130
Price: 166.75 NZD
Availability: InStock

Teltonika FMC130 Advanced LTE terminal with flexible inputs Configuration

FMC130

$166.75

Tax included.

In stock, ready to be shipped

Select quantity

Description

Teltonika FMC130 Advanced LTE terminal with flexible inputs configuration

The Teltonika FMC130 is a small ADVANCED series device with 4G (LTE Cat 1) network coverage including 3G (UMTS), 2G (GSM) fallback compatibility. It comes equipped with internal GNSS, LTE antennas, configurable digital/analog/negative and impulse inputs, three DOUT outputs, Bluetooth connectivity, and backup battery.

FMC130 developed on the existing Teltonika FMB platform, therefore it keeps all of the functionalities from FMB130 and builds on top of them with its industry-leading connectivity coverage.

For starters, FMC130 features negative input which allows you to save precious integration time while connecting accessories like vehicle doors sensor, alarm buttons, seatbelt detection, and other similar sensors or accessories.

Additionally, the device has an integrated possibility to enable Impulse Input for precise fuel flow meter data reading. Impulse based fuel usage monitoring is much more accurate than a different type of fuel metering sensors and it makes the FMC130 a perfect solution for high fuel usage machines like cranes, construction vehicles, mining machines, agriculture equipment.

Programmable inputs, 3 different configurable DOUT scenarios (immobilizer, buzzer, alarm lights, door lock and other scenarios) together with 4G (LTE Cat 1) compatibility including the 3G (UMTS) and 2G (GSM) fallback compatibility make this one of our most flexible devices ever.

Features

Reliable 4G (LTE Cat 1) connection with fallback to 3G (UMTS), 2G (GSM) networks
Allows device to work without external power source
Configurable DIN/AIN for flexible remote monitoring and control
Negative input will allow easier installation of accessories
CAN data reading from vehicles and specialized transport
Impulse inputs for fuel flow meters data reading

Details
Product code	FMC130 (FMC130C3U801)
Module Name	Quectel EC21-AU, Quectel EC21-EC, Teltonika TM2500
Technology	LTE(CaT1)/3G(UMTS/HSPA)/2G(GSM/GPRS)/GNSS/BLUETOOTH
GNSS	GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver	Tracking: 33
Tracking sensitivity	-165 dBM
Accuracy	< 3 m
Hot start	< 1 s
Warm start	< 25 s
Cold start	< 35 s
Cellular Technology	LTE Cat 1, UMTS, GSM
2G bands	EC21-AU:GSM: B2/B3/B5/B8, EC21-EC:GSM: B3/B8
3G bands	EC21-AU:WCDMA: B1/B2/B5/B8, EC21-EC:WCDMA: B1/B8
4G bands	EC21-AU:LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28, LTE TDD: B40, EC21-EC:LTE FDD: B1/B3/B7/B8/B20/B28A
Data transfer	LTE:LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL), LTE TDD: Max 8.96Mbps (DL)/Max 3.1Mbps (UL)
Data transfer	UMTS:WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL), GSM:GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)
Data support	SMS (text/data)
Input voltage range	10 - 30 V DC with overvoltage protection
Internal Back-up battery	170 mAh Li-Ion, 3.7 V battery (0.63 Wh)
Bluetooth Specification	4.0 + LE
supported peripherals	Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
Dimensions	65 x 56,6 x 20,6 mm (L x W x H)
Weight	55 g
Operating temperature (without battery)	-40 °C to +85 °C
Storage temperature (without battery)	-40 °C to +85 °C
Operating humidity	5% to 95% non-condensing
Ingress Protection Rating	IP41
Battery charge temperature	0 °C to +45 °C
Battery discharge temperature	-20 °C to +60 °C
Battery storage temperature	-20 °C to +45 °C for 1 month, -20 °C to +35 °C for 6 months
Digital Inputs	3
Negative Inputs	1 (Digital Input 2)
Impulse Inputs	2 (Digital Input 1, Digital Input 2)
Digital Outputs	3
Analog Inputs	2
CAN Adapter inputs	1
1-Wire	1
GNSS antenna	Internal High Gain
Cellular antenna	Internal High Gain
USB	2.0 Micro-USB
LED indication	2 status LED lights
SIM	Micro-SIM + eSIM
Memory	128MB internal flash memory
Sensors	Accelerometer
Scenarios	Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes	GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update	FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS	Configuration, Events, DOUT control, Debug
GPRS commands	Configuration, DOUT control, Debug
Time Synchronization	GNSS, NITZ, NTP
Fuel monitoring	LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, ODBII dongle
Ignition detection	Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)

Details
Cables Included	Input/output power supply cable (0.9 m)

Warranty

1 Year
