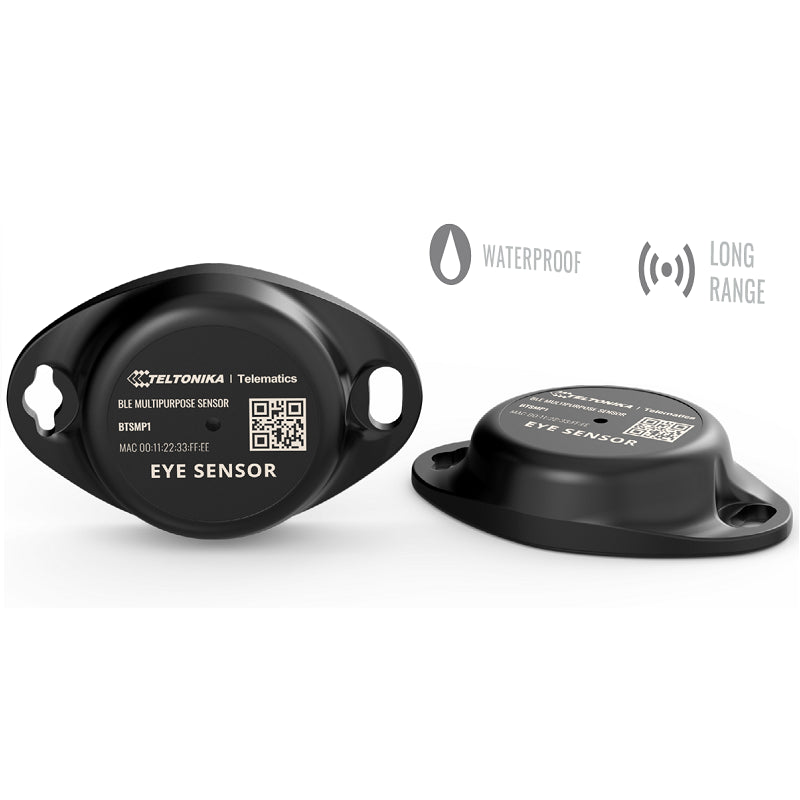

Teltonika Bluetooth IoT Eye Sensor

Teltonika Bluetooth IoT Eye Sensor

BTSMP15QB801

$66.70

Tax included.

18 items available
Select quantity
Description
Teltonika Bluetooth Eye Sensor with ID, LED, Temperature, Humidity, Accelerometer, Magnet detection
Teltonika Bluetooth Eye Sensor with ID, LED, Temperature, Humidity, Accelerometer, Magnet detection. The Teltonika certified Bluetooth Low Energy ID multi sensor model, The Eye Sensor has a robust lightweight casing and a long-lifetime battery. This model is designed for low-cost, fast and easy configuration and integration to save precious time, resources to ensure timely monitoring and accountability. Perfect for traceability use cases, delivery tracking, monitoring of various movable objects in logistics (trailers, containers), agriculture (tractor attachments), and constructions ( and inventory). The Sensor data makes it especially suitable for cold chain refrigerator use cases. The built-in accelerometer can detect item movement or fall events. Magnet detection can be used for wireless open/close detection and notifications such as trailer door events, etc. The EYE sensor supports iBeacon and Eddystone protocols and is fully compatible with the Teltonika firmware platform which provides extended functionality. Configure, scan, and update anytime anywhere with the dedicated Teltonika mobile app.
Features
  • 620 mAh capacity, 5+ years long battery life
  • IP67 protection casing with handy two mounting points
  • Easy to use mobile app for configuration, data scanning, and updating
  • Temperature, Humidity, Movement, Magnet detection IoT sensors
Details
Manufacturers Code BTSMP15QB801
Dimensions 56,6 mm x 38 mm x 13 mm
Weight 18 g
Bluetooth Bluetooth 4.2 compliant, Bluetooth 5.2 certified
Range 80 m
Available transmission power levels Up to 8 dBm
Sensitivity -88 dBm
Battery Model CR2450
Type Lithium, Manganese Dioxide (Li/MnO2)
Total Capacity 620 mAh
Replaceable No
Battery life (Tx=2 dBm; interval: 3 s) 2.5+ years
Battery life (Tx=2 dBm; interval: 10 s) 5+ years
Microcontroller ST Microelectronics BlueNRG-2
Functionalities Beacon ID, LED, Temperature, Humidity, Accelerometer, Magnet detection
Casing Protection IP67
Mounting Two holes to screw/leash/strip, tape
Humidity (non-condensing) From 0% to 95%
Operational temperature -20°C / +60°C (-4°F / +140°F)
Details
Contents 1 x Teltonika EYE Sensor
Warranty

1 Year

Brand

Teltonika Telematics

Restock ETA (if applicable)
