Name: Teltonika 1-Wire RFID Reader and accessories for fleet management devices
Brand: Teltonika Telematics
SKU: PGEX00001510
Price: 51.75 NZD
Availability: InStock

Teltonika 1-Wire RFID Reader and accessories for fleet management devices

PGEX00001510

$51.75

Tax included.

In stock, ready to be shipped

Select quantity

Description

Teltonika 1-Wire RFID Reader and accessories for fleet management devices

Teltonika 1-Wire RFID Reader and accessories for fleet management devices. One of the implemented features for Teltonikas fleet management devices is the 1-Wire data protocol, which can be used to read RFID Tags by emulating them using iButton protocols. It is a convenient way to implement driver authorization in your vehicles if you want to use RFID tags with minimal setup complexity.

Features

Immobilizer - prevent anyone from starting the vehicle without scanning an RFID tag first.
Authorized driving - keep track of who is driving your vehicle according to the RFID tag they use to authenticate themselves.
Auto Geofencing – gives ability to know when car leaves customized areas without RFID authorization.

Details
Product Code	PGEX00001510
Interface	White wire – 1-wire data, Brown wire – power supply, Green - ground
Power supply range	6.5-30 V DC
Frequency	125 kHz
Type of transponder	Manchester, 64 cycles per bit
Antenna surface area	6,8 cm2
Reading range	4 cm
Reading frequency	6 times per second for identification, 2 times per second when transponder is in range of the reader
supported 1-Wire commands	0x33 (0x0F) - Read ROM, 0xF0 - Search ROM
Mounting method	M12 Thread
Cable length	40 cm
Operating temperature	From -20 ºC to +55 ºC
Regulatory	RoHS certified

YouTube Channel

Details

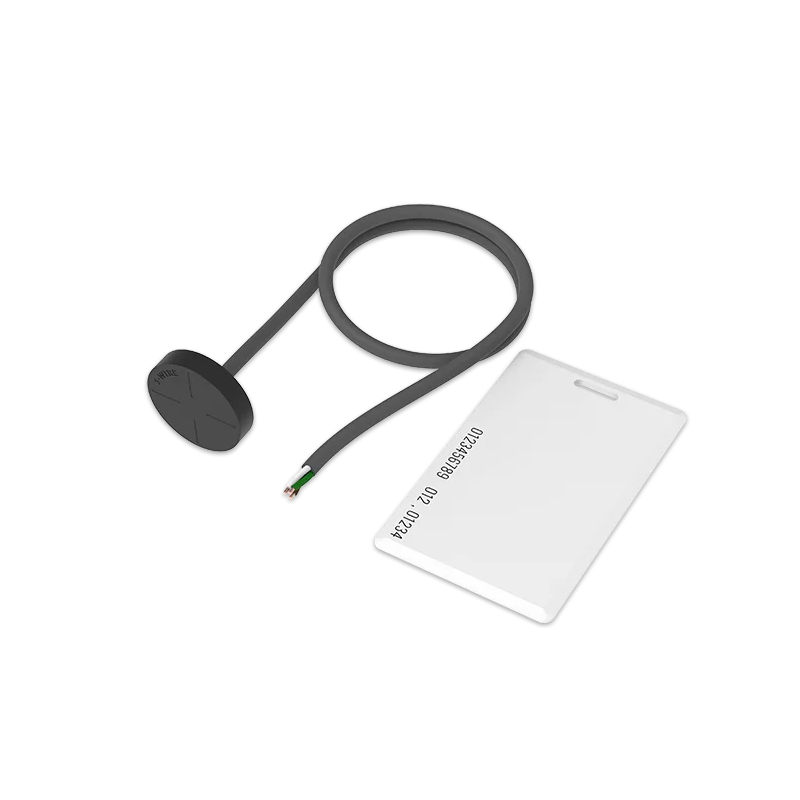

Contents	1x 1-Wire RFID reader and 1x RFID card

Warranty

1 Year

Brand

Teltonika Telematics

Restock ETA (if applicable)

Product Details

Specifications

Teltonika Telematics
HeadingTeltonika 1-Wire RFID Reader and accessories for fleet management devices

Description

Teltonika 1-Wire RFID Reader and accessories for fleet management devices

Features

Immobilizer - prevent anyone from starting the vehicle without scanning an RFID tag first.
Authorized driving - keep track of who is driving your vehicle according to the RFID tag they use to authenticate themselves.
Auto Geofencing – gives ability to know when car leaves customized areas without RFID authorization.

Details
Product Code	PGEX00001510
Interface	White wire – 1-wire data, Brown wire – power supply, Green - ground
Power supply range	6.5-30 V DC
Frequency	125 kHz
Type of transponder	Manchester, 64 cycles per bit
Antenna surface area	6,8 cm2
Reading range	4 cm
Reading frequency	6 times per second for identification, 2 times per second when transponder is in range of the reader
supported 1-Wire commands	0x33 (0x0F) - Read ROM, 0xF0 - Search ROM
Mounting method	M12 Thread
Cable length	40 cm
Operating temperature	From -20 ºC to +55 ºC
Regulatory	RoHS certified
