Single line Display Keypad C-Series ( SLK-1 ) – Russound

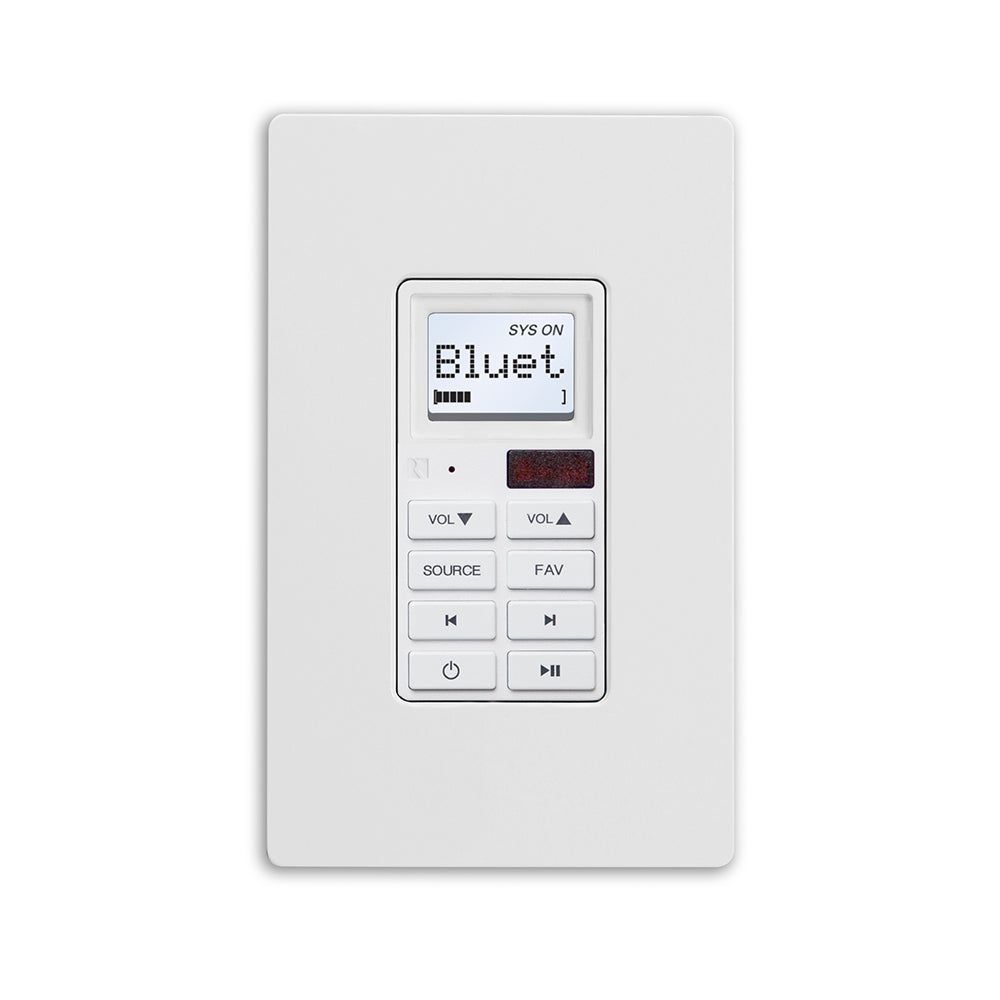

The SLK-1 Single Line Keypad is an in-wall Decora® style single-gang keypad designed for individual zone control of any zone of an MCA-Series controller. The SLK-1 uses a five character LCD to display the current source, volume level and system status. Designed for basic zone control, its white backlit, soft-touch buttons allow for easy access to volume, power and source selection as well as a zone specific favorite and simple source transport option – play/pause, previous and next.

For added convenience, you can turn the whole system on or off and the SLK-1 features an IR receiver for control and IR repeating.

Features:
5 Character LCD shows source name, volume level and system status
Single-gang Decora-style keypad design exclusively for the MCA-Series systems
Responsive easy to use buttons & visual feedback for simple control
Flush-Mount mounting option available via Wall-Smart
Specifications:
Shipping Dimensions: 1.5? (W) x 2.7? (H) x 1.9? (D), (3.8 x 6.9 x 4.8 cm)
Shipping Weight: 0.3 lbs (0.2 kg)
CAT-5e Connection: RJ-45 (T568A standard)
Max Cable Length: 300? (CAT-5)
Power Requirement(s): 12 VDC 180mA CAT-5
