Name: Siklu EtherHaul 2ft dual-band antenna (E-Band Plus 5GHz)
Brand: Siklu
SKU: EH-ANT-2ft-DL5
Price: 1006.25 NZD
Availability: InStock

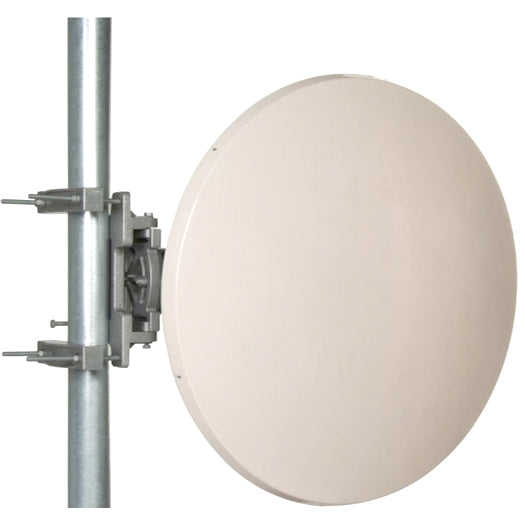

Siklu EtherHaul 2ft dual-band antenna (E-Band Plus 5GHz)

EH-ANT-2ft-DL5

$1,006.25

Tax included.

6 items available

Select quantity

Description

Siklu EtherHaul 2 ft. antenna 70/80 & 5GHz (FCC/ETSI) and mounting kit, with X adaptor

Siklu EtherHaul 2 ft. antenna mmWave 70/80 & 5GHz (FCC/ETSI) and mounting kit, with X adaptor.

EtherHaul™ E-band ODUs support a variety of antennas depending on the intended application, from street level to roof top, from short to long reach.

Features

Compatible with EH-1200T/TX, EH-1200F/FX, EH-2200F/FX, EH-2500F/FX, EH-5500FD, EH-8010FX

Details
Product Code	EH-ANT-2ft-DL5
Compatibility	EH-1200T/TX, EH-1200F/FX, EH-2200F/FX, EH-2500F/FX, EH-5500FD, EH-8010FX
Frequency Range	71 – 86 GHz plus 5.15 – 5.9 GHz
Regulatory Compliance	ETSI: EN 302 217-4-2 V1.5.1 Class 3, FCC: 47CFR101, ETSI EN 302 217 Range 1 Class 2
Gain	70/80GHz 49dBi +/- 2dB, 5GHz 26dBi +/- 2dB
3dB Beam	70/80GHz 0.5°, 5GHz 6.5°
Polarization	70/80GHz: Linear Vertical / Horizontal, 5GHz: Dual polarized (V & H)
Cross-pol. Discrimination	- 30dB
Front/Back Ratio	? 47dB
Input power	W (max)
Interface	Circular waveguide E-Band, 5GHz 2x 50cm cables, with RP-SMA male connectors
Weight	10.8Kg (23.8 lbs.)
Radome	ABS
Window Survival	220Km/h

Details
Mounting Brackets	Included

Warranty

1 Year

Brand

Siklu
