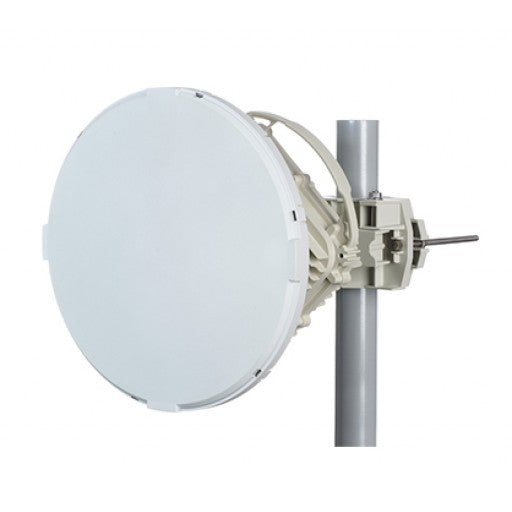

Name: Siklu EtherHaul 1 foot Dish Antenna (FCC/ETSI) with ring adaptor
Brand: Siklu
SKU: EH-ANT-1ft-B
Price: 339.25 NZD
Availability: InStock

Siklu EtherHaul 1 foot Dish Antenna (FCC/ETSI) with ring adaptor

EH-ANT-1ft-B

$339.25

Tax included.

1 items available

Select quantity

Description

Siklu EtherHaul 1 foot 70/80GHz 43dBi Dish Antenna (FCC/ETSI) with ring adaptor

Siklu EtherHaul 1 foot 70/80GHz 43dBi mmWave dish antenna (FCC/ETSI) with ring adaptor.

Siklu EtherHaul™ E-band ODUs support a variety of antennas depending on the intended application, from street level to roof top, from short to long reach. This document starts with the compatibility between ODUs and antennas, continues with the specifications and closes with the illustrations of the antennas.

Note: Mounting kit EH-MK-1ft purchased separately.

Features

supports Siklu ODU’s EH-1200T/TX, EH-1200F/FX, EH-2200F/FX, EH-2500F/FX, EH-5500FD, EH-8010FX
Requires Mounting kit: AX-MK-1ft-B (or EH-MK-1ft)

Details
Product Code	EH-ANT-1ft-B
Compatibility	EH-1200T/TX, EH-1200F/FX, EH-2200F/FX, EH-2500F/FX, EH-5500FD, EH-8010FX
Frequency Range	71 – 86 GHz
Regulatory Compliance	ETSI: EN 302 217-4-2 V1.5.1, Class 2, FCC: 47CFR101
Gain	43 dBi +/- 2dB
3 dB Beamwidth	0.9 degree
Polarization	Linear Vertical / Horizontal
Input power	10 W (max)
Interface	Circular waveguide E-band
Weight	2.2Kg (4.8 lbs.)
Radome	Plastic
Water Tightness	IP67
Temperature range	-55deg to +71deg C
Wind Speed Survival	220km/h

Details
Mounting Kit	Not included: use EH-MK-1ft

Warranty

1 Year

Brand

Siklu
