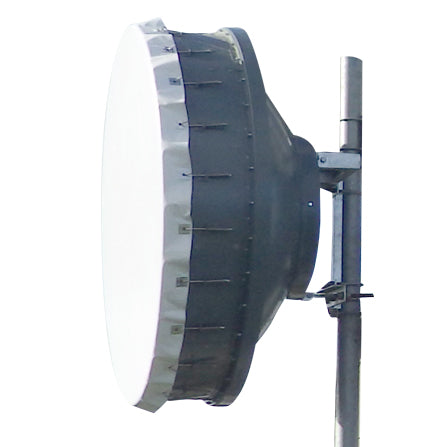

Name: Shenglu 1.8m 10.7 - 11.7GHz Ultra High Performance Antenna
Brand: Shenglu
SKU: SLU1810SH-N
Price: 2294.25 NZD
Availability: InStock

Shenglu 1.8m 10.7 - 11.7GHz Ultra High Performance Antenna

SLU1810SH-N

$2,294.25

Tax included.

3 items available

Select quantity

Description

Shenglu 1.8m 10.7 - 11.7GHz Ultra High Performance Antenna

Shenglu 1.8m Ultra High Performance Low Profile Dual Polarised 10.7 - 11.7GHz Antenna suitable for Ubiquiti airFiber AF-11FX Radios.

Details
Manufacturer's Product Code	SLU1810SH
Frequency Range	10.7 - 11.7GHz
Gain	44.2dBi (Top); 43.6dBi (Mid); 43.1dBi (Low)
Front-to-Back Ratio	70dB
Cross Polar Discrimination (XPD)	30dB
Beamwidth	1.1deg
VSWR	1.30
ISO	35dB
Return Loss	17.69dB
Diameter	1.8m
Polarisation	Dual Polarity
Reflector Construction	One-piece reflector
Radome Material	ABS
Wind Velocity Operational	162km/h
Wind Velocity Survival Rating	250km/h
Fine Azimuth Adjustment	Coarse360° Fine ±5°
Fine Elevation Adjustment	Fine ±5°
Mounting Diameter	114mm (Pole Diameter)

Details
Waveguide	2 x Waveguide Adaptor to N-Type Female

Warranty

1 Year

Brand

Shenglu

Restock ETA (if applicable)

Product Details

Specifications

Shenglu
HeadingShenglu 1.8m 10.7 - 11.7GHz Ultra High Performance Antenna

Description

Shenglu 1.8m 10.7 - 11.7GHz Ultra High Performance Antenna

Shenglu 1.8m Ultra High Performance Low Profile Dual Polarised 10.7 - 11.7GHz Antenna suitable for Ubiquiti airFiber AF-11FX Radios.

Details
Manufacturer's Product Code	SLU1810SH
Frequency Range	10.7 - 11.7GHz
Gain	44.2dBi (Top); 43.6dBi (Mid); 43.1dBi (Low)
Front-to-Back Ratio	70dB
Cross Polar Discrimination (XPD)	30dB
Beamwidth	1.1deg
VSWR	1.30
ISO	35dB
Return Loss	17.69dB
Diameter	1.8m
Polarisation	Dual Polarity
Reflector Construction	One-piece reflector
Radome Material	ABS
Wind Velocity Operational	162km/h
Wind Velocity Survival Rating	250km/h
Fine Azimuth Adjustment	Coarse360° Fine ±5°
Fine Elevation Adjustment	Fine ±5°
Mounting Diameter	114mm (Pole Diameter)
