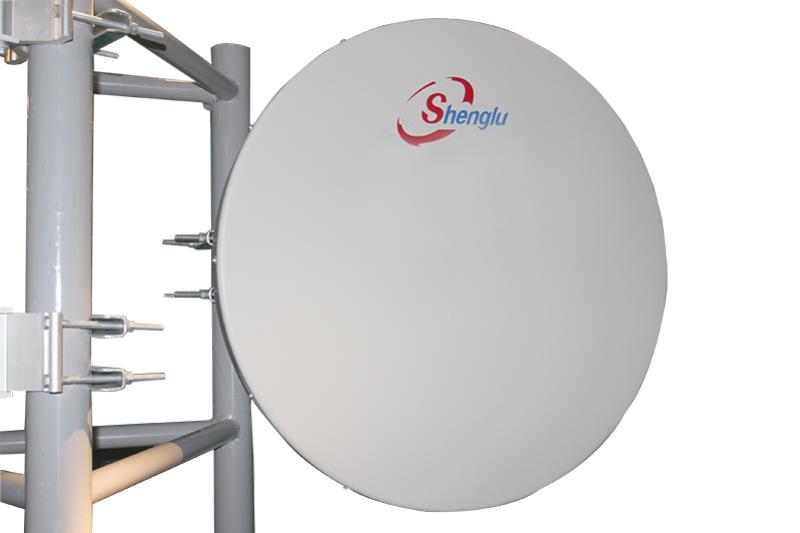

Name: Shenglu 0.9m 5.25-5.85GHz High Performance Dish Antenna
Brand: Shenglu
SKU: SLG0952SS27N
Price: 1260.40 NZD
Availability: InStock

Shenglu 0.9m 5.25-5.85GHz High Performance Dish Antenna

SLG0952SS27N

$1,260.40

Tax included.

5 items available

Select quantity

Description

Shenglu 0.9m 5.25-5.85GHz Ultra High Performance Low Profile Dual Polarised Antenna

Shenglu 0.9m Ultra High Performance Low Profile Dual Polarised 5.25-5.85GHz Antenna suitable for high end Point to Point backhaul applications.

Due to the size of these items they are excluded from our free freight option. Freight will be added to all invoices once confirmed and amount will depend on your location.

Details
Manufacturer's Product Code	SLG0952SS27N (SLA0905D3S37N20)
Frequency Range	5.25 - 5.85GHz
Gain, Top	31.4 dBi
Gain, Mid	30.9 dBi
Gain, Low	30.5 dBi
Front-to-Back Ratio	52 dB
Cross Polarization Discrimination (XPD)	30 dB
Beamwidth	4.1 °
Isolation	35 dB
VSWR	1.5
Return Loss	14 dB
Regulatory Compliance	ETSI EN 302 217 Range 1 Class 2
Antenna Type	Ultra High Performance Low Profile Antenna, Dual-Polarized Antenna
Diameter, nominal	0.9m / 3ft
Polarization	Dual
Reflector Construction	One-piece reflector
Antenna connector	N-female
Antenna Colour	RAL7035
Radome Colour	RAL7047
Radome Material	ABS
Wind Velocity Operational	162km/h
Wind Velocity Survival Rating	250km/h
Fine Azimuth Adjustment	Coarse 360° Fine ±15°
Fine Elevation Adjustment	Fine ±20°
Mounting Pipe Diameter	114 mm
Ice-load	25.4 mm
Operational Temperature	-45 to +75 ?
Net Weight	24.9kg

Details
Pole Mount	Included
Side Struts Included	1
Radome Cover	Included

Warranty

1 Year
