Name: SenseCAP S2100 LoRaWAN Data Logger/DTU, Supports RS485/Analog/GPIO Interfaces, LoRaWAN Converter
Brand: Seeed Technology
SKU: S2100
Price: 166.75 NZD
Availability: InStock

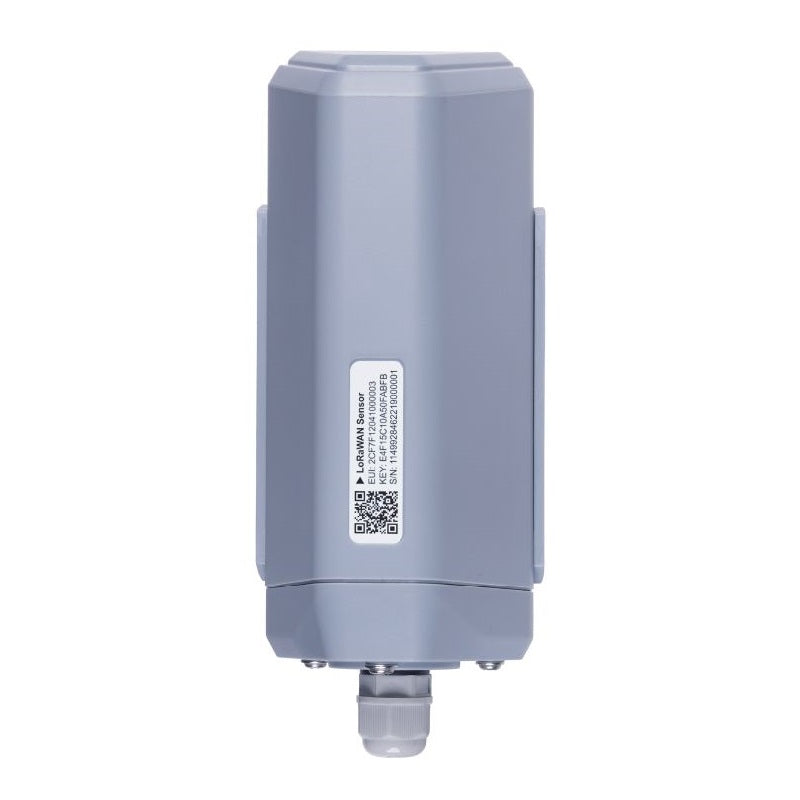

Gray LoRaWAN data logger enclosure with bottom cable connector and label sticker

SenseCAP S2100 LoRaWAN Data Logger/DTU, Supports RS485/Analog/GPIO Interfaces, LoRaWAN Converter

S2100

$166.75

Tax included.

In stock, ready to be shipped

Select quantity

Description

SenseCAP S2100 LoRaWAN Data Logger/DTU, Supports RS485/Analog/GPIO Interfaces, LoRaWAN Converter

SenseCAP S2100 - LoRaWAN Data Logger/DTU, supports RS485/Analog/GPIO Interfaces, LoRaWAN Converter.

A battery-powered IP66 wireless data logger/ DTU supports RS485/Analog/GPIO sensors, equipped with built-in Bluetooth and APP service for OTA configuration and remote device management.

SenseCAP S2100 Data Logger/DTU can connect to MODBUS-RTU RS485/Analog/GPIO sensors and transmit data from sensors to the LoRaWAN network. Benefits from LoRa and IP66 design, this device features stability and reliability and can cover a long transmission range while keeping ultra-low power consumption, ideal for outdoor use. It is specifically optimized for OTA with built-in Bluetooth, which enables quick setup and update. It can be battery-powered or connected to a 12V external power supply. When the 12V power supply is connected, the replaceable built-in battery is set to be used as the backup power supply. What's more, with the help of S2110 converter, S2100 Data Logger/DTU is able to connect to Grove Sensor, it is an ideal solution for developing, fast prototyping, and small deployment for DIY Industrial level LoRaWAN Sensors.

. .

Features

Strong Compatibility with different Sensors: supports all MODBUS-RTU S485/Analog(4~20mA/0~10V) / GPIO(level/pulse) sensors
Compatible with Worldwide LoRaWAN Networks with LoRaWAN V1.0.3 protocol and can work with LoRaWAN gateway (support the universal frequency plan from 863MHz ~928MHz)
Long Range & replaceable Battery powered wireless transmission, S2100 supports 19Ah built-in battery and external 12V DC to supply devices, and ultra-wide-transmission range of 2km in urban scenes and 10km in line of sight scenes
Designed to Use in Harsh Environments: -40? ~ 85? operating temperature and IP66 rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions

Details
Product Model	SenseCAP S2100 (114992872)
Microcontroller	Wio-E5
support Protocol	LoRaWAN v1.0.3 Class A
Current Input	4 to 20 mA (2 channel)
Voltage Input	0 to 10V (2 channel)
RS485	RS485 Modbus-RTU Protocol
Built-in Bluetooth	App Tool to change parameters and set data conversion algorithm
Long-Range Channel Plan	IN865/EU868/US915/AU915/ AS923 (Every single device can support 7 frequency plans)
Max Transmitted Power	19dBm
Sensitivity	-136dBm@SF12 BW=125KHz
Communication Distance	2 to 10km (depending on and environment)
IP Rating	IP66
Operating Temperature	-40 to +85 °C
Operating Humidity	0 to 100 %RH (non-condensing)
Device Weight	280g
Certification	CE / FCC / RoHS
Battery Life	Up to 10 years**
Battery Capacity	19Ah (non-rechargeable)
Battery Type	Standard D-size SOCl2 Battery

Details
Package Includes	Sensor Node, 2 x Bracket, Quick Start Guide, KA4*20mm Self-drilling Screw

Warranty

1 Year

Brand

Seeed Technology
