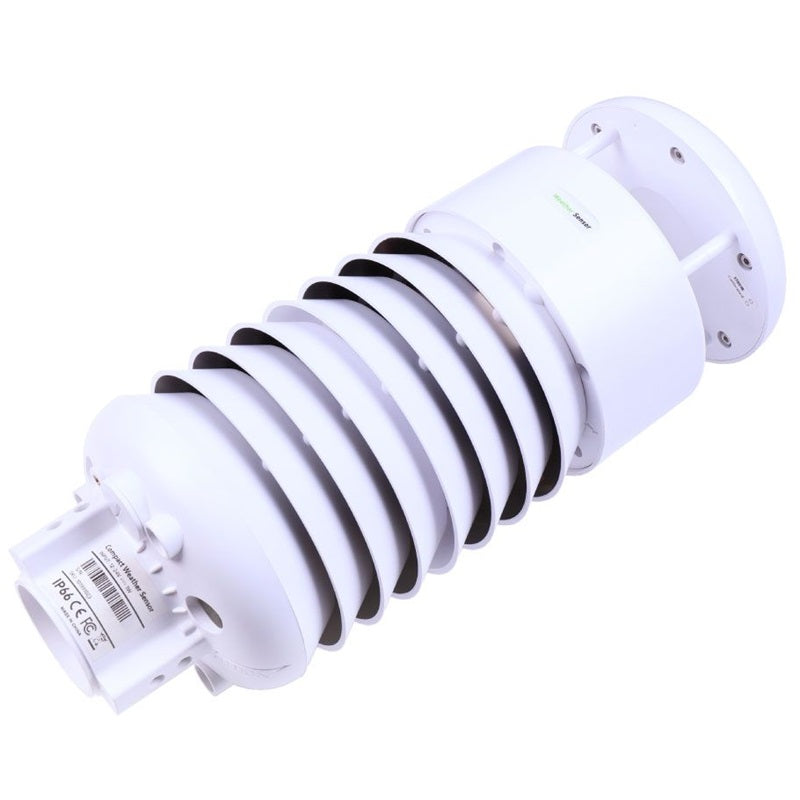

Name: Seeed SenseCAP S800 8-in-1 Compact IoT Weather Station
Brand: Seeed Technology
SKU: S800
Price: 1753.75 NZD
Availability: InStock

Seeed SenseCAP S800 8-in-1 Compact IoT Weather Station

S800

$1,753.75

Tax included.

1 items available

Select quantity

Description

Seeed SenseCAP S800 8-in-1 Compact Weather Sensor

Seeed SenseCAP S800 8-in-1 Compact IoT Weather Station.

SenseCAP S800 8-in-1 Compact Weather Sensor measures air temperature, relative humidity, barometric pressure, wind speed, wind direction (ultrasonic), PM2.5, PM10, and noise. It is ideal for application in a rough environment like the outdoors, agriculture, or smart cities.

This SenseCAP ONE S800 8-in-1 Compact Weather Sensor is IP66 certified, and it features strong robustness to withstand even the toughest outdoor environment. The Sensors to measure wind speed and wind direction use ultrasound instead of a traditional mechanical 3-cup or vane anemometer. The advantage of using ultrasonic sensors is that reducing the movable parts can make the sensor less likely to break and thereby is easier to be maintained without any sacrifices in precision or manpower.

. .

Features

8 parameters measurement : Measures air temperature, relative humidity, barometric pressure, wind speed, wind direction, PM2.5, PM10 and noise in 1 single sensor
Industrial-level design : -40°C to +85°C operating temperature, IP66 rated: waterproof, and dustproof, suitable for outdoor scenarios
Output interface: RS485 (MODBUS-RTU) / SDI-12
Thermostatically-controlled heating system : Independent heating power supply for use in extremely cold environments
Powerful Components Included : A 3m cable for the pole mount; radiation shields are equipped to ensure accurate ambient measurement; ultrasonic wind speed & direction sensors without moving parts

Details
Product Model	S800 (101991023)
Parameters Measured	air temperature, relative humidity, barometric pressure, wind speed, wind direction, PM2.5, PM10 and noise
Protocol	RS485 (MODBUS-RTU) / SDI-12
Power Supply	12V~24V, 24V(Heating power supply)
Cable Length	3m
Air Temperature	Range: - 40 °C ~ + 85 °C; Accuracy: ± 0.1?; Resolution: 0.01 ?
Air Humidity	Range: 0 ~ 100% RH; Accuracy: ± 1.5% RH; Resolution: 0.01% RH
Barometric Pressure	Range: 300 ~ 1250 hPa; Accuracy: ± 50 Pa; Resolution: 10 Pa
Wind Speed (Ultrasonic)	Range: 0~60 m/s standard range, 0~75m/s extended range, Up to 80m/s withstand range; Accuracy: ±0.3m/s(?10m/s), ±3% (10m/s ~ 50m/s), ±5% (>50m/s), Resolution: 0.1 m/s
Wind Direction (Ultrasonic)	Range: 0 ~ 360°, Accuracy: ± 3.0°, Resolution: 0.1°
PM2.5	Range: 0~1000µg/m³; Accuracy: ±10% (100~1000µg/m³), ±10µg/m³ (0~100µg/m³); Resolution: 1µg/m³
PM10	Range: 0~1000µg/m³; Accuracy: ±15% (100~1000µg/m³), ±15µg/m³ (0~100µg/m³); Resolution: 1µg/m³
Noise	Range: 35~100dB; Accuracy: ±1.5dB; Resolution: 0.1dB
Operating Temperature & Humidity	-40 °C ~ + 85 °C, 0 ~ 100%RH
IP Rating	IP66
Device Weight	2kg

Details
Package Includes	SenseCAP ONE All-in-one Compact Weather Sensor, M12 8-pin communication cable (default length 3-meter hook-up wire and there is a waterproof aviation connector type to choose from when working with SenseCAP SensorHub datalogger. If the aviation connector is not needed, cut it off by yourself), USB Type-C cable, for configuring devices, Screw x6, Flat washer (to open the configuration port)

Warranty

1 Year

Brand

Seeed Technology

Restock ETA (if applicable)
