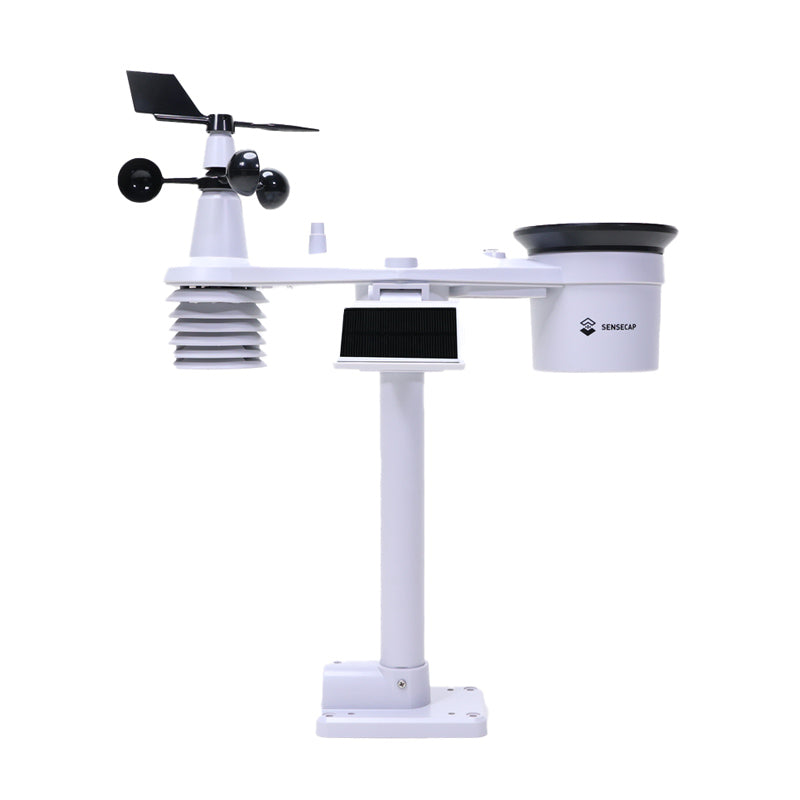

Name: Seeed SenseCAP S2120 8-in-1 LoRaWAN Home Weather Station
Brand: Seeed Technology
SKU: SC-S2120
Price: 649.75 NZD
Availability: InStock

Seeed SenseCAP S2120 8-in-1 LoRaWAN Home Weather Station

SC-S2120

$649.75

Tax included.

15 items available

Select quantity

Description

Seeed SenseCAP S2120 8-in-1 LoRaWAN Home Weather Station

The SenseCAP LoRaWAN SC-S2120 Weather Station collects and uploads air temperature, humidity, wind speed/direction, Rainfall Intensity, light intensity, UV index, and barometric pressure data supported by worldwide LoRaWAN networks. The S2120 weather station is suitable for applications in gardens, agriculture, meteorology, urban environmental monitoring, and other scenarios. It also enables low maintenance cost for its ultra-low power consumption, reliable performance, built-in Bluetooth for OTA configuration and remote device management.

Built-in Bluetooth avoids time-consuming configuration works to bring no code experience to individuals with less or no technical background to quickly get started with weather detection.

We also stock the SenseCAP Sensor Hub 4G Data Logger which can be used with the SenseCAP ONE series weather sensor. The data can be transmitted to the Sensor Hub and then to the SenseCAP server or a private server. If you choose to use the SenseCAP server, we also provide an API for you to easily make your own applications.

. .

Features

8-in-1 Weather Station: Collect air temperature, humidity, wind speed/direction, Rainfall Intensity, light intensity, UV index, and barometric pressure data in one device and upload them via LoRaWAN
Bluetooth Configuration in 1 min & Remote Management: Simple configuration with just a few clicks, supports remote monitoring and managing real-time & historical data via the SenseCAP Mate App
Ultra-low Power Consumption, Easily Replaceable Battery & Expandable Capacity: Powered by 0.5W solar panel and 3*standard 1.5V AA size dry batteries with up to 2 years service life
(support external battery compartment with capacity for six batteries to double the service life)
Reliable Performance: Suitable for outdoor harsh environments such as high UV exposure, heavy rain, dusty conditions, etc
One-stop Deployment & Flexible Layout: Accessories include poles, mounting stand, etc. for quick installation and can be set up at almost any location

Details
Product Model	101990961 (S2120)
Parameters Measured	Air Temperature, Air Humidity, Wind Speed, Wind Direction, Barometric pressure, light intensity,UV Intensity, Precipitation intensity
Operating Temperature & Humidity	-20 to +60 °C (Alkaline battery)
IP Rating	IP66
Device Weight	1.5kg
Air Temperature Range	-40.0 ~ 80.0 ?
Accuracy	±0.5? (0~80?); ±0.6? (-40~0?)
Resolution	0.01 ?
Air Humidity Range	0 ~ 99% RH
Accuracy	± 3% RH
Resolution	1% RH
Barometric Pressure Range	540 ~ 1100 hPa
Accuracy	± 5 hPa
Resolution	1 Pa
Light Intensity Range	0 ~ 200000 Lux
Accuracy	± 5% x (measurement value?
Resolution	1 Lux
Wind Speed Range	0 ~ 50 m/s
Accuracy	± 10%
Resolution	0.1 m/s
Wind Direction Range	0 ~ 360 °
Accuracy	± 8°
Resolution	1°
Rainfall Intensity Range	0 ~ 450 mm/h
Accuracy	± 7%
Resolution	0.254 mm/h
LoRaWAN Channel Plan	AS923,AU915
LoRaWAN Max Transmitted Power	21dBm
LoRa Sensitivity	-141dBm@SF12 BW=125KHz
Battery Type	AA size 1.5V batteries, alkaline or non-rechargeable Lithium battery
Battery Life	2 years (Solar Panel + 6*AA Battery, 1h/uplink)

Details
Package Includes	Weather Station (No Batteries Included), Pole mounting stand, Mounting Clamp, Plastic Pole, Screws and fixings, External Battery Box.

Warranty

1 Year

Brand

Seeed Technology
