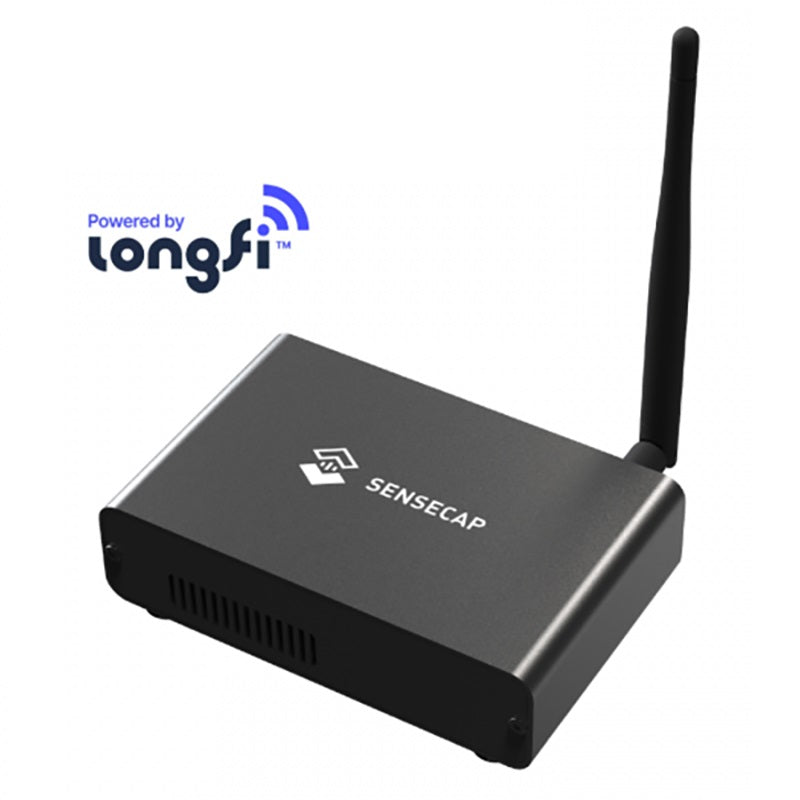

Name: Seeed SenseCAP M1 Helium LoRaWAN Indoor Gateway
Brand: Seeed Technology
SKU: 110991640
Price: 631.35 NZD
Availability: InStock

Seeed SenseCAP M1 Helium LoRaWAN Indoor Gateway

110991640

$631.35

Tax included.

In stock, ready to be shipped

Select quantity

Description

Seeed SenseCAP M1 Helium LoRaWAN Indoor Gateway

The Seeed SenseCAP M1 is a high-performing, ready-to-use LoRaWAN indoor IoT gateway compatible with Helium LongFi Network. The Seeed SenseCAP M1 can connect to The People’s Network with a few simple steps and helps you build LoRa applications with low costs. The SenseCAP M1 provides miles of wireless network coverage and data transmission capacity for LoRa/LoRaWAN devices. It helps you join and contribute to the infrastructure of The People’s Network while enjoying the benefits from the Helium community.

As a LoRaWAN gateway with powerful and stable performance, SenseCAP M1 is based on Raspberry Pi 4 and embedded with a WM1302/WM1303 (Semtech SX1302/SX1303) LoRa concentrator, featuring miles of wide range of coverage and low-power consumption - the consumption of an ordinary light bulb.

. .

Features

Powered by Mature Hardware Solutions
Secure and Reliable. Built-in ECC608 crypto chip, high-security authentication, and reliable connectivity.
Automatic Online Upgrades. Automatic OTA upgrades
Built-in remote diagnostics mechanisms
64GB Storage
Aluminum enclosure with a heatsink and cooling fan inside
FCC and CE Certificated. Available for personal and commercial use.

Details
Product Model	XNM1AS923 / 110991640
Processor	Raspberry Pi 4 (Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz)
Storage	64GB MicroSD Card
Frequency	AS923 Version: 902MHz ~ 928MHz
Sensitivity	-125dBm @125KHz/SF7, -139dBm @125KHz/SF12
TX Power	Up to 26 dBm
Antenna Gain	US915 / AS923: 2.6 dBi
LoRaWAN Connector	RP-SMA Female
Antenna Impedance	50 Ohm
Wi-Fi	2.4 GHz and 5.0 GHz IEEE 802.11ac wireless (Internal Antenna)
Bluetooth	Bluetooth 5.0, BLE
LoRaWAN	supports Class A, C
Input Voltage	DC 5V - 3A
Interfaces	USB Type-C (Power Supply) x 1, Ethernet RJ45 x 1, RP-SMA Female Antenna Connector* 1
Operating Temperature	0°C to 50°C
Relative Humidity	0% - 90% (non-condensing)
IP Rating	IP20
Certification	FCC / CE / RCM

Details

Warranty

1 Year

Brand

Seeed Technology

Restock ETA (if applicable)
