Description

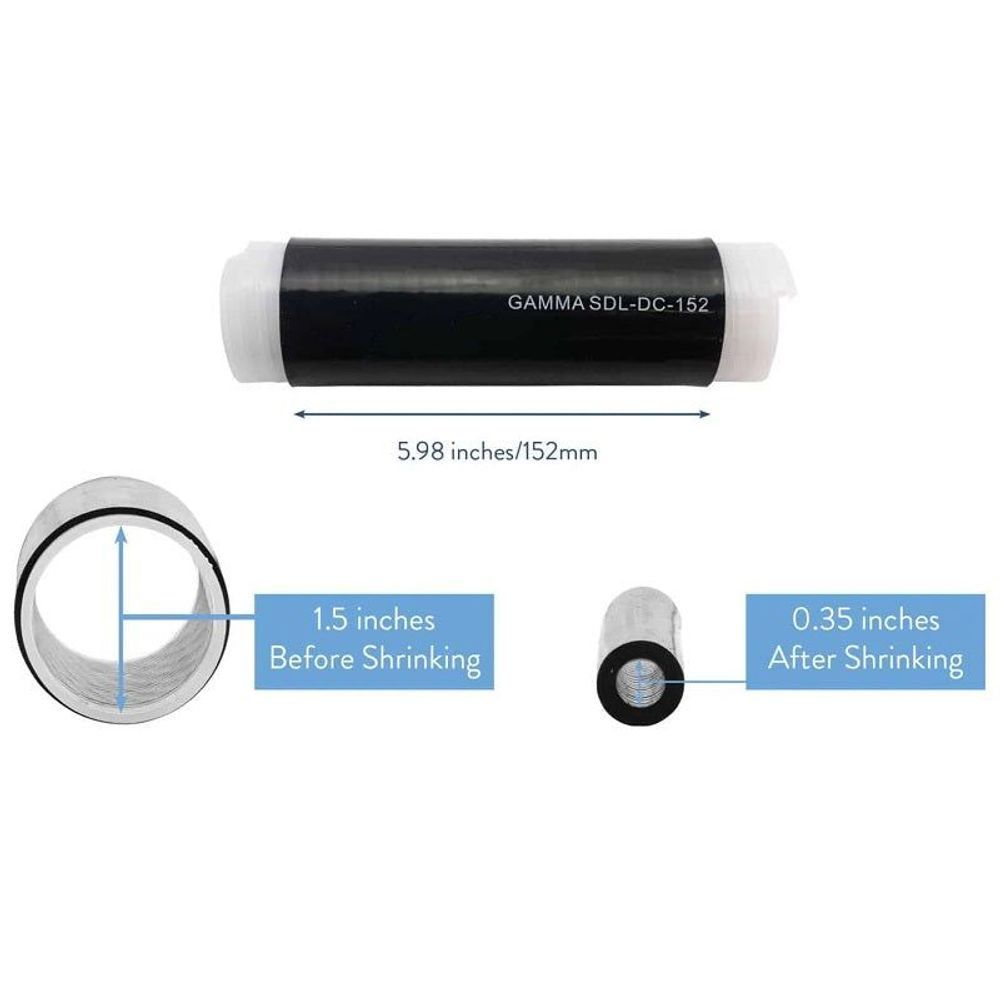

Gamma Electronics SDL-DC-152 Silicone Cold Shrink Power Connection to 1/2? Jumper. Gamma Cold Shrink is a pre-expanded silicone rubber tube that shrinks once the inner plastic core is removed. It installs in seconds and lasts the lifetime of the cable. Gamma’s Silicone Cold Shrink is the RF industry’s top “Set it and Forget it” weatherproofing solution. Made from silicone rubber, Gamma Cold Shrink is incredibly weather and temperature resistant and is able to protect RF connections from water, dust, fungus while also being UV and Ozone resistant.
Features
- Installation Temperature: -15 deg F to 158 deg F
- Easily Removed with Knife
- Shrink Method: Pull Cord
- Shrink Ratio: Exceeds 4:1
- Colors: Black
- Highly Flexible
- 15,000 Volt
- Excellent Tear Resistance
- UV and Ozone Resistant
- Water Tight and Weather Resistant to IP-68 & IP-69 Standard
- RoHS Compliant with EU RoHS Directive (2005/95/EC)
- Acid and Alkalis Resistant
| Details | |
|---|---|
| Construction Type | SDL-DC-152 |
| Typical Application | Power Cable |
| Connector Size | 32mm/1.26" |
| Cable O.D. | 10.5mm/0.42" |
| Details | |
|---|---|
Specifications
| Details | |
|---|---|
| Construction Type | SDL-DC-152 |
| Typical Application | Power Cable |
| Connector Size | 32mm/1.26" |
| Cable O.D. | 10.5mm/0.42" |
