Features
SB2215

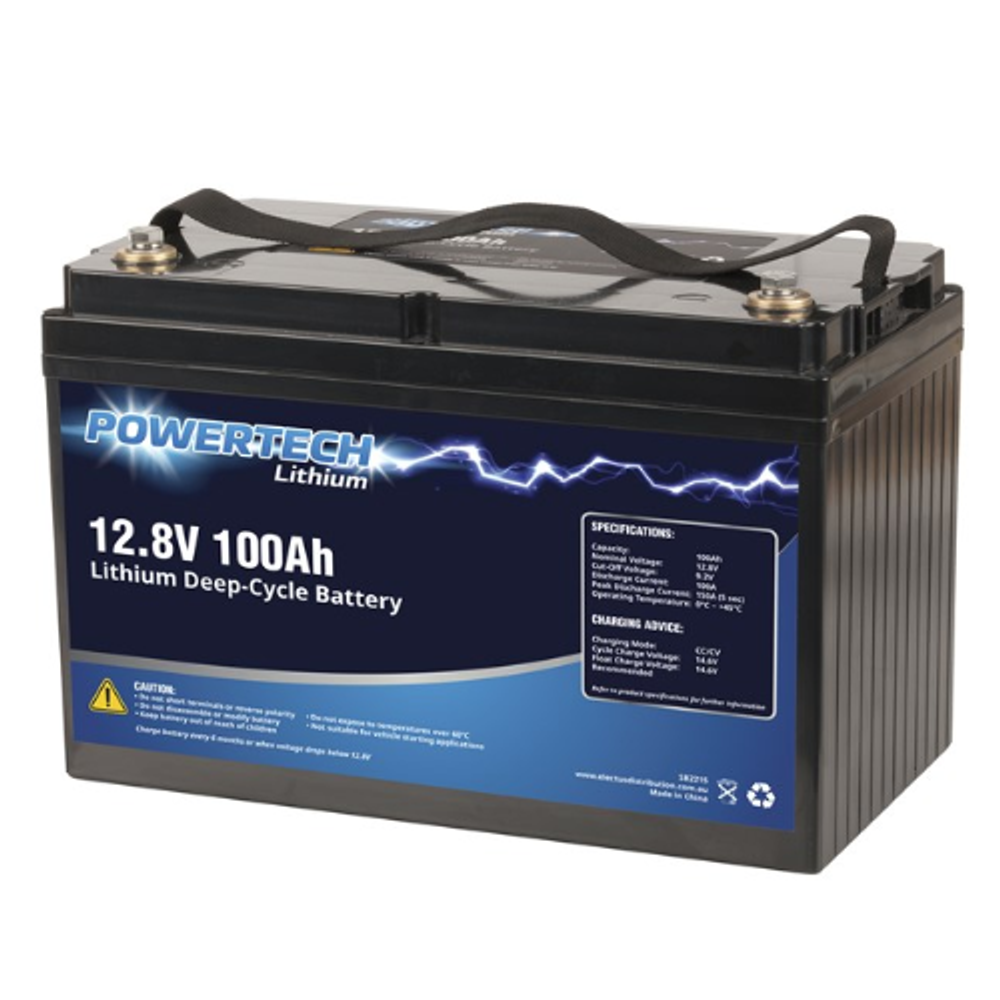

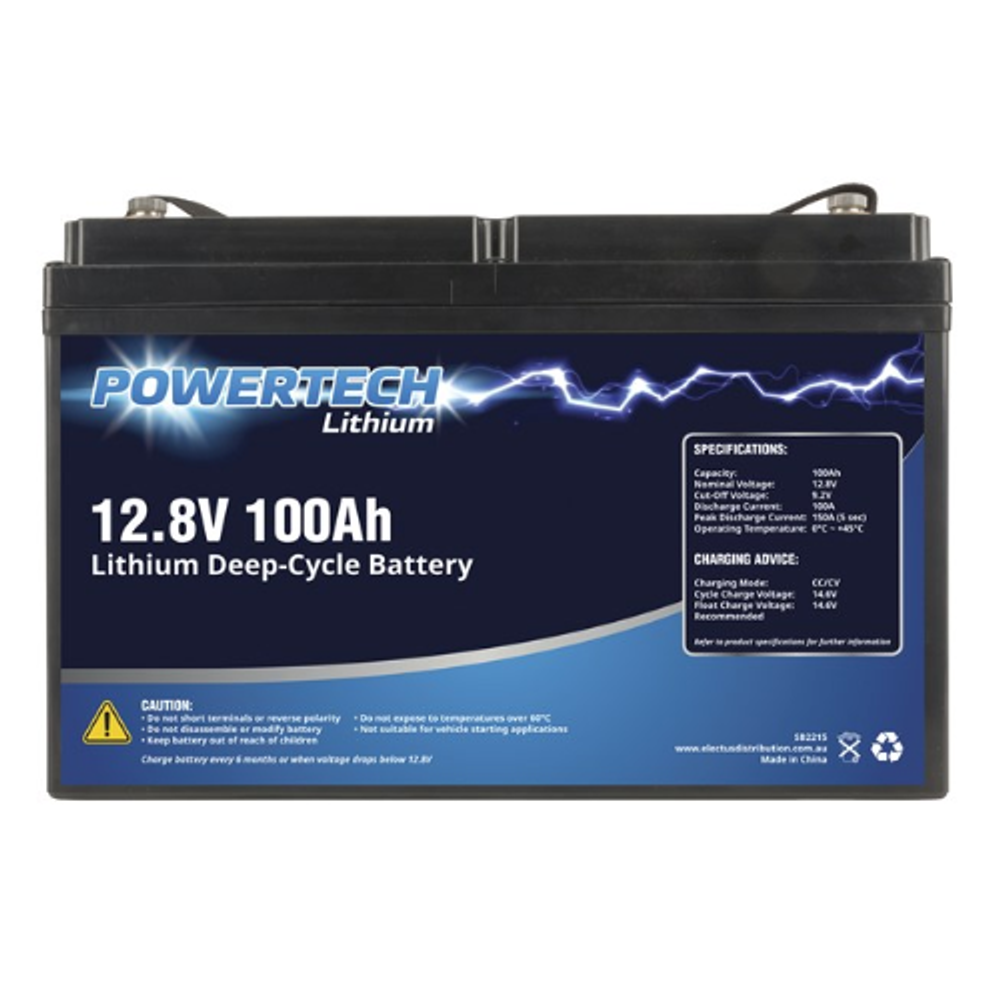

The next generation of power storage is here! These LiFePO4 batteries may look fairly similar to lead acid batteries, but internally they’re a totally different, next generation concept. They’re actually made up of regular pouch LiFePO4 cells, which are in mass production for many portable devices. An internal battery management system (BMS) ensures all cells are uniformly charged and discharged, as well as providing short circuit, over current, and reverse polarity protection. This provides you with a higher degree of protection than a traditional lead acid battery which is unprotected, and can discharge rapidly under short circuit conditions, causing fire and damage. The internal BMS will also limit discharge and manage cut-off voltage, to further protect the internal cells.
This 100Ah model can provide continuous current up to 100A, with peaks of up to 150A. It’s not suitable for a primary vehicle starting battery, however is absolutely perfect for house batteries, backup batteries, and virtually any other application where you would typically use a large lead acid / AGM battery.
Features:
- Much lighter than Lead Acid and AGM Batteries
- Robust LiFePO4 Cells
- 10+ years life span
- 100amp continuous output
Specifications:
Service Life: 10yrs+
Cycle Life: 1500+ cycles (> 80% capacity retention)
Specifications
| Packaged Volume : 19l |
| Packaged Weight : 11kg |
| Packaged Length : 38cm |
| Packaged Width : 20cm |
| Packaged Height : 25cm |
| DG UN Number : 3480 |
| DG Class : 9 |
| DG Pack Group : II - Medium Danger |
| DG Hazardous Chemical Code : 4W |
| DG Ship Name : 3480 - Lithium Ion Batteries |
| Battery Watt Hour Rating (Required for Lithium Batteries) : 1Wh |
| Width : 325mm |
| Height : 220mm |
| Depth : 170mm |
| Weight : 11kg |
| Operating Temperature : 0°C, 45°C |
| Operating Humidity : 0%, 85% |
| Storage Temperature : 0°C, 40°C |
| Storage Humidity : 0%, 50% |
| DC Voltage : 12.8V |
| Battery usage : Bulk Storage |
| Battery Chemical Composition : Lithium Ferrous Phosphate (LiFePO4) |
| Battery Peak Current : 150A |
| Amp Hour Rating : 100Ah |
| 20 Hour Capacity : 100Ah |
| Internal Resistance : 60mΩ |
| Connection Type : M8 Bolt/Nut |
| Type of battery : li-ion |
| Peak Discharge Duration : 5sec |
| Continuous Current : 100A |
| Nominal Voltage : 12.8V |
| Cut-Off Voltage : 9.2V |
| Recharging Voltage : 14.6V, 14.6V |
| Standard Recharge Current : 40A |
| Charging Method : Constant Current Constant Voltage |
| Availability : Stocked item |
