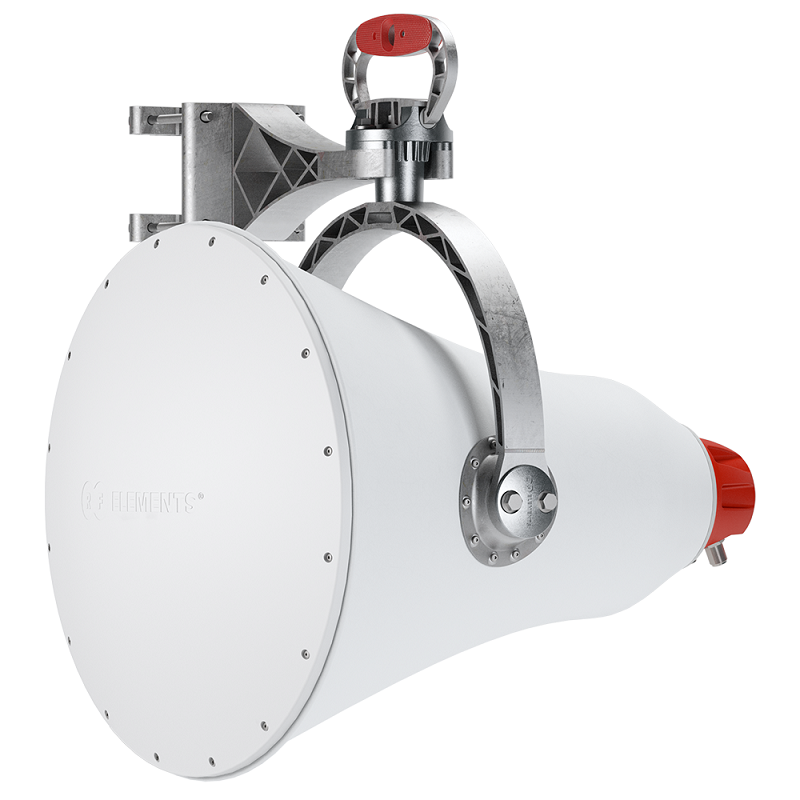

Name: RF Elements UltraHorn 5 - 6GHz 24dBi N-Female Connector Horn Antenna
Brand: RF Elements
SKU: UH-CC-5-24
Price: 684.25 NZD
Availability: InStock

RF Elements UltraHorn 5 - 6GHz 24dBi N-Female Connector Horn Antenna

UH-CC-5-24

$684.25

Tax included.

6 items available

Select quantity

Description

RF Elements UltraHorn CC 5GHz to 6GHz 24dBi N-Female Horn Antenna UH-CC-5-24

RF Elements UltraHorn 5180 - 6775 MHz 24dBi N-Female Connectorised Horn Antenna. RF Elements UltraHorn Carrier Class (CC) is a connectorised horn antenna with high gain and high directivity. The UltraHorn offers superb noise rejection due to symmetrical beam with no side lobes. These unique features make UltraHorn CC ideal for long distance links in high noise environments. UltraHorn delivers excellent performance as a narrow sector antenna for high noise environments. High performance antenna characteristics allow for precise network planning of dense co-location in very challenging RF conditions.

Due to the size of these items they are excluded from our free freight option. Freight will be added to all invoices once confirmed and amount will depend on your location.

Features

Ultimate Noise Rejecting Horn Antenna
Unique Beam Without Side Lobes
Ultimate Noise Rejection
N-Type Connectors
Zero Loss
Easy Installation - Innovative Mounting System

Details
Product Code	UH-CC-5-24
Frequency Range	5180 - 6775 MHz
Gain	24 dBi
Azimuth/Elevation Beam Width	-3 dB H 11° / V 11°
Azimuth/Elevation Beam Width	-6 dB H 16° / V 15°
Polarization	Double linear H+V
Front-to-Back Ratio	40 dB
VSWR Max 5180-5850 MHz	1.6
VSWR Max 5850-6775 MHz	1.8
Antenna Connection	2x N Female Bulkhead Connector
Antenna Type	Horn
Enviromental	IP55
Pole Mounting Diameter	30-80 mm
Temperature	-30°C to +55°C (-22°F to +131°F)
Wind Survival	160 km/hour
Wind Loading	136/113 N - Front/Side at 160 km/h (100 mi/h)

Details
Pole Mount	Yes - Bracket Included

Warranty

1 Year

Brand

RF Elements

Restock ETA (if applicable)

Product Details

Specifications

RF Elements
HeadingRF Elements UltraHorn 5 - 6GHz 24dBi N-Female Connector Horn Antenna

Description

RF Elements UltraHorn CC 5GHz to 6GHz 24dBi N-Female Horn Antenna UH-CC-5-24

Features

Ultimate Noise Rejecting Horn Antenna
Unique Beam Without Side Lobes
Ultimate Noise Rejection
N-Type Connectors
Zero Loss
Easy Installation - Innovative Mounting System

Details
Product Code	UH-CC-5-24
Frequency Range	5180 - 6775 MHz
Gain	24 dBi
Azimuth/Elevation Beam Width	-3 dB H 11° / V 11°
Azimuth/Elevation Beam Width	-6 dB H 16° / V 15°
Polarization	Double linear H+V
Front-to-Back Ratio	40 dB
VSWR Max 5180-5850 MHz	1.6
VSWR Max 5850-6775 MHz	1.8
Antenna Connection	2x N Female Bulkhead Connector
Antenna Type	Horn
Enviromental	IP55
Pole Mounting Diameter	30-80 mm
Temperature	-30°C to +55°C (-22°F to +131°F)
Wind Survival	160 km/hour
Wind Loading	136/113 N - Front/Side at 160 km/h (100 mi/h)
