Name: RF Elements StationBox ALU-Mini Compact Outdoor Enclosure
Brand: RF Elements
SKU: SBX-AM
Price: 109.25 NZD
Availability: InStock

RF Elements StationBox ALU-Mini Compact Outdoor Enclosure

SBX-AM

$109.25

Tax included.

In stock, ready to be shipped

Select quantity

Description

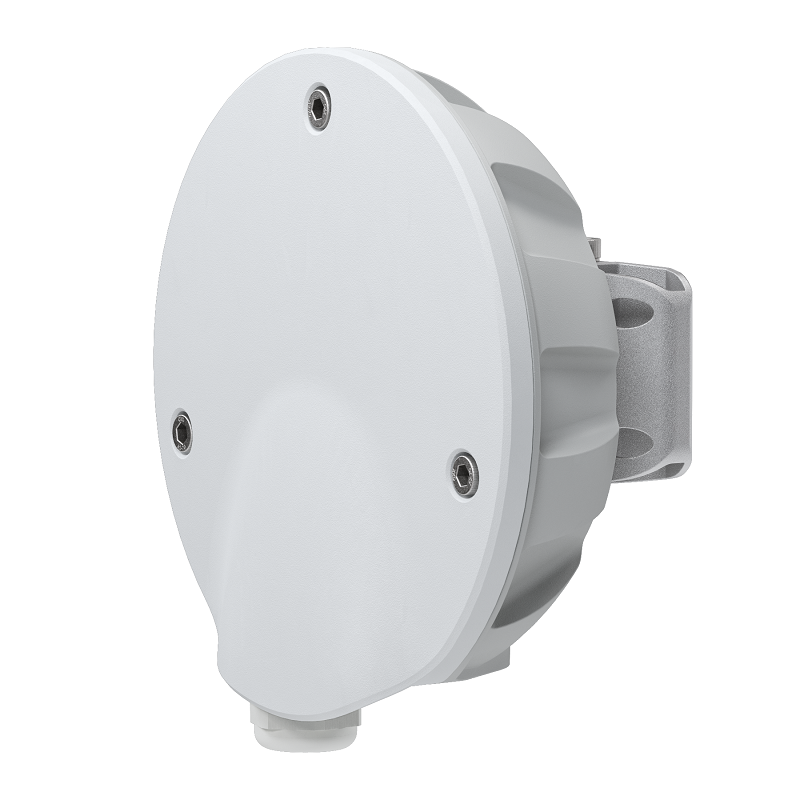

RF Elements StationBox ALU-Mini Compact outdoor aluminium enclosure for wireless platforms, access points, and all things IoT

RF Elements StationBox ALU-Mini. SBX-AM is compact premium outdoor enclosure for IoT devices and wireless platforms. SBX-AM is made of cast aluminium. The robust, full-metal construction is geared towards excellent environment resistance. The slick mounting mechanism allows installation of SBX-AM on a pole or wall.

SBX-AM is designed for solution builders. 3D data set allows for easy DIY mounting plate design, 3D printing or easy electronics PCB layout customization.

The all new mounting bracket on the StationBox® ALU-Mini enables easy and quick installation on a pole or a wall. The bracket is made of extruded aluminium to maximize the durability.

Features

Versatile Outdoor Enclosure
Customize the mounting plate
IP55 Aluminium Enclosure (IP66 can be achieved by sealing the drain holes)
Easy Installation Pole Mountable

Details
Manufacturer's Product Code	SBX-AM
Connectors	1 cable gland M20
Materials	Body - Aluminium Alloy, Bracket - Aluminium Alloy, Hardware - Stainless Steel
Temperature	-40degC to +60degC
Wind Survival	160 km/h
Environment Resistance	IP55 (IP66 can be achieved by sealing the drain holes)
Mounting Diameter	20-75 mm (we recommend as close to 75mm Pole as possible)
Weight	0.78 kg / 1.7 lbs – single unit
Dimensions	173mm x 185mm x 104mm

Details
Included	StationBox ALU-Mini, Mounting Bracket, Blind Plate, Hose Clamp, 2x Screw M3 x 10 mm, 4x Screw 3,5 x 45 mm with Wall Plug

Warranty

1 Year

Brand

RF Elements
