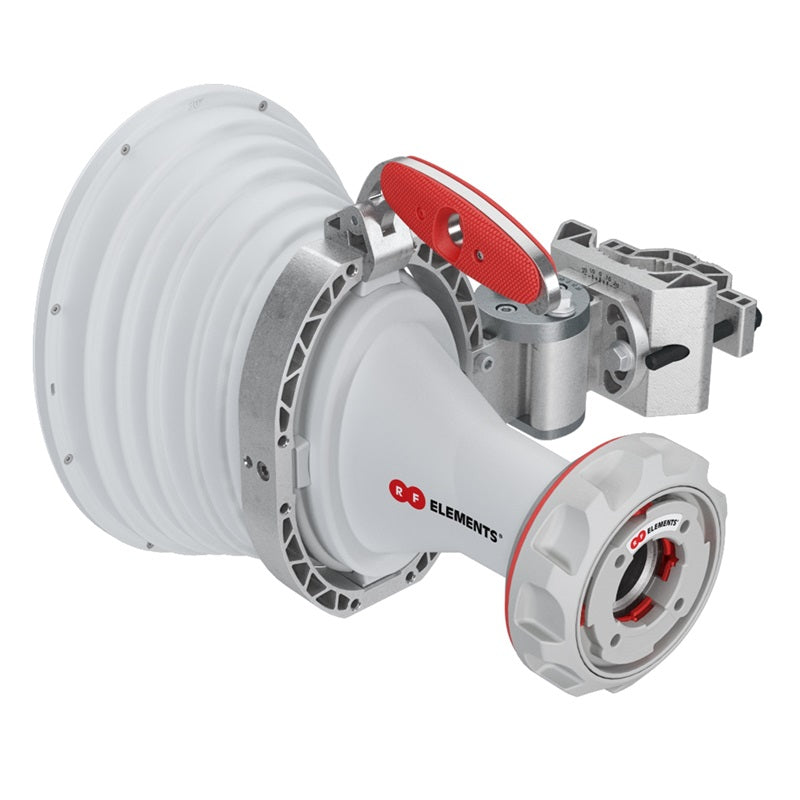

RF Elements Asymmetrical Frequency Range 5180 - 6000 MHz Horn TP Antenna 30 Degree AH2030-TP combines the best of both worlds - high gain of a traditional sector antenna and zero side lobes of a horn. Its radiation pattern is wide in azimuthal and narrow in elevation plane, greatly improving coverage planning options. 30° Asymmetrical Horn TP Antenna exceeds the traditional patch sector antenna thanks to high stability of gain and radiation pattern in the whole band of operation. Outstanding noise rejection and precision of radiation pattern favours 30° Asymmetrical Horn TP antenna for high-density AP clusters, in highly populated areas and dense co-location sites.

The BeamSwitch feature enables mounting of the antenna with 90° rotation by swapping the position of the handle and the bracket. AH2030-TP thus can provide 20° azimuth and 30° elevation beamwidth option. The extruded aluminium ring improves the structural strength of the antenna attachment and makes the BeamSwitch flip easy and fast.

Asymmetrical Horn TP Antennas provide asymmetrical beam shape and game-changing TwistPortT (TP) connector. Asymmetrical Horn TP Antennas provide excellent noise rejection, network scalability and throughput increase. Providing specific beam shape, increased antenna gain and excellent noise rejection, Asymmetrical Horn TP antennas complement the successful Symmetrical Horn Antennas.
