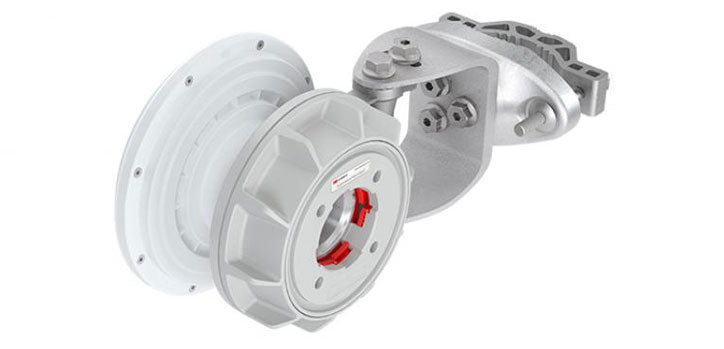

Name: RF Elements 5GHz Gen2 Symmetrical Horn 90 Degree Sector Antenna
Brand: RF Elements
SKU: HG3-TP-S90
Price: 285.20 NZD
Availability: InStock

RF Elements 5GHz Gen2 Symmetrical Horn 90 Degree Sector Antenna

HG3-TP-S90

$285.20

Tax included.

11 items available

Select quantity

Description

RF Elements 5GHz Gen2 Symmetrical Horn 90 Degree Sector Antenna HG3-TP-S90

RF Elements Gen2 Symmetrical Horn 90 Degree Sector Antenna. Symmetrical Horn Antennas have a symmetrical beam pattern with no sidelobes. They offer excellent noise rejection and supreme scalability options. They are perfect for high-density AP clusters and dense radio co-location.

Symmetrical Horn TP Antennas Gen2 feature our industry-changing TwistPort™ connector, a patent-pending quick-locking waveguide port. TwistPort™ is virtually lossless and revolutionary easy to use.

Symmetrical Horn TP Antennas Gen2 feature multiple improvements on RF performance and industrial design, incl. optically lighter antenna body and significantly improved antenna bracket. Radome is made of more resistant material and the whole range of Gen2 antennas only uses two different radome sizes.

Features

40/60/90 degree options available
Compatible with RF Elements TwistPort Adaptors for MikroTik, Cambium, Mimosa and Ubiquiti Radios

Details
Manufacturer's Product Code	HG3-TP-S90
Frequency Range	5180 - 6400 MHz
Gain	9.6 dBi
Azimuth Beam Width -3 dB	H 67° / V 67°
Elevation Beam Width -3 dB	H 67° / V 67°
Azimuth Beam Width -6 dB	H 90° / V 90°
Elevation Beam Width -6 dB	H 90° / V 90°
Front-to-Back Ratio	28 dB
Antenna Connection	TwistPort™ - Quick Locking Waveguide Port
Antenna	Type Horn
Materials	UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminium, Stainless Steel
Environmental	IP55
Flame Rating	UL 94 HB
Pole Mounting Diameter	30-80 mm
Temperature	-30°C to +55°C (-22°F to +131°F)
Wind Survival	160 km/hour
Wind Loading	22 N at 160 km/hour
Mechanical	Tilt ± 25°
Weight	1.4 Kg / 3.0 lbs – single unit

Details
Pole Mount	Inlcuded

Warranty

1 Year

Brand

RF Elements

Restock ETA (if applicable)
