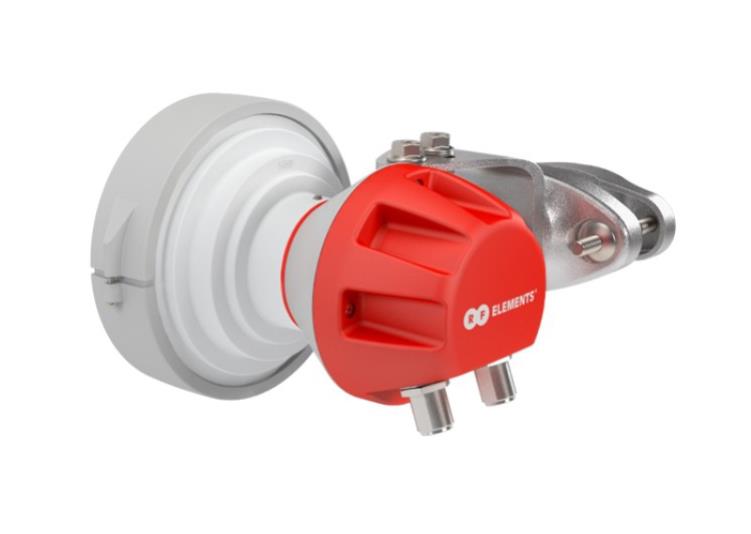

RF Elements 5GHz 50deg Symmetrical Horn Sector Antenna with N-Type Female connectors. Carrier Class Symmetrical Horn Antennas are scalar horn antennas with a symmetrical beam radiation pattern without side lobes. Carrier Class Symmetrical Horns are perfectly suitable for use as Sector Antennas. They offer a unique blend of features that solves major weak points of current mainstream sector antenna technology.

Symmetrical Horn Antennas have very unique beam shape and characteristics. The beam section is circular: azimuth and elevation radiation angles are identical. The beam pattern does not vary with frequency and the antenna gain is balanced over a wide frequency range. These features make them excellent sector antennas.

Carrier Class Symmetrical Horns have no side lobes - they only focus energy into one main signal beam. Such radiation characteristic saves the most important resource in wireless - the spectrum.

The unique radiation properties secure, that radio will collect and propagate significantly less noise in comparison with mainstream sector antennas. Majority of noise problem is directly connected with antenna side lobes, especially when operating in free bands. Side radiation lobes allow radios propagate to- and receive the signal (noise, interference) from unwanted directions with surprisingly high gain.

Carrier Class Symmetrical Horns are basically "deaf" off their main beam, so they deliver significantly better performance in crowded, noisy environment.
