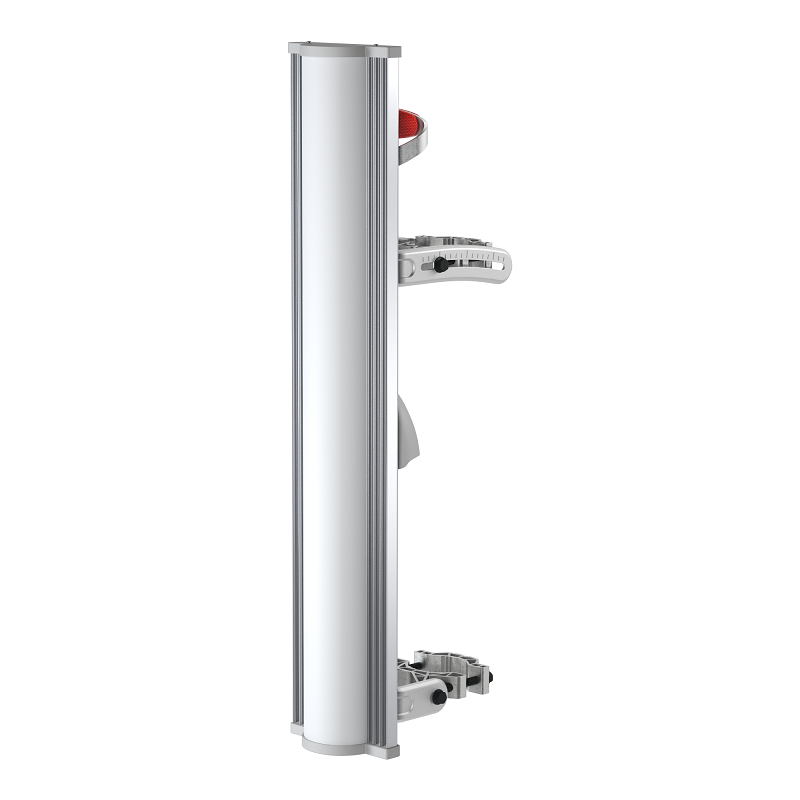

Name: RF Elements 5GHz 20 dBi Array Sector Antenna
Brand: RF Elements
SKU: AS-5-20
Price: 434.70 NZD
Availability: InStock

RF Elements 5GHz 20 dBi Array Sector Antenna

AS-5-20

$434.70

Tax included.

13 items available

Select quantity

Description

RF Elements 5GHz 20 dBi Premium sector antenna with integrated BackShield and extremely wide bandwidth

RF Elements 5GHz 20 dBi Array Sector Antenna. RF elements Array Sector Antennas have optimized gain performance in the whole useful bandwidth. Thanks to the constant gain, the antennas deliver excellent performance regardless which channel is used.

Array Sector Antennas operate in the frequency range 5150-5850MHz. The 700MHz wide working spectrum covers U-NII-1 to U-NII-3 bands.

Array Sector Antennas have integrated BackShield - patented frequency-selective surfaces attenuating azimuthal side lobes and back radiation significantly improving the co-location capability of Array Sector Antennas.

Array Sector Antennas are made of high grade aluminium that makes them compact, light, and extremely durable.

Features

Stable Gain Across The Band
Optimized For Co-Location
Patented frequency-selective surface that effectively attenuates back radiation and the side lobes in the azimuthal plane
Wide Platform Compatibility, works with Cambium, Mimosa, MikroTik, Ubiquiti
Designed for quick & easy assembly, installation and alignment
Solid extruded aluminium body enables Array Sector Antennas endure any weather conditions
Hardware with Anti-Seize Coating

Details
Manufacturer's Product Code	AS-5-20
Frequency Range	5150 - 5850 MHz
Gain	20 dBi
Antenna Connection	2x RP-SMA on integrated semi-flex pigtails
Antenna Type	Patch Array Sector
Enviromental	IP55
Temperature	-35°C to +55°C (-31°F to +131°F)
Wind Survival	160 km/hour
Pole Mounting Diameter	40-80mm (recommend as close to 80mm as possible)

Details
Pole Mount	Included

Warranty

1 Year

Brand

RF Elements

Restock ETA (if applicable)

Product Details

Specifications

RF Elements
HeadingRF Elements 5GHz 20 dBi Array Sector Antenna

Description

RF Elements 5GHz 20 dBi Premium sector antenna with integrated BackShield and extremely wide bandwidth

Features

Stable Gain Across The Band
Optimized For Co-Location
Patented frequency-selective surface that effectively attenuates back radiation and the side lobes in the azimuthal plane
Wide Platform Compatibility, works with Cambium, Mimosa, MikroTik, Ubiquiti
Designed for quick & easy assembly, installation and alignment
Solid extruded aluminium body enables Array Sector Antennas endure any weather conditions
Hardware with Anti-Seize Coating

Details
Manufacturer's Product Code	AS-5-20
Frequency Range	5150 - 5850 MHz
Gain	20 dBi
Antenna Connection	2x RP-SMA on integrated semi-flex pigtails
Antenna Type	Patch Array Sector
Enviromental	IP55
Temperature	-35°C to +55°C (-31°F to +131°F)
Wind Survival	160 km/hour
Pole Mounting Diameter	40-80mm (recommend as close to 80mm as possible)
