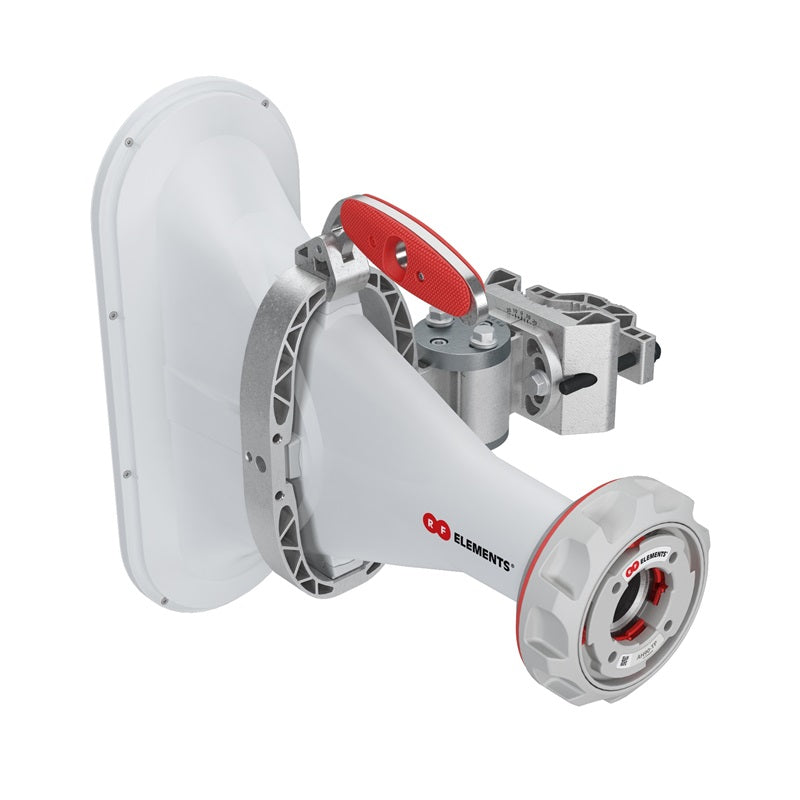

Name: RF Elements 16dBi 90 Degree Frequency Range 5180 - 6000 MHz Asymmetrical Horn TP Antenna AH90-TP
Brand: RF Elements
SKU: AH90-TP
Price: 631.35 NZD
Availability: InStock

RF Elements 16dBi 90 Degree Frequency Range 5180 - 6000 MHz Asymmetrical Horn TP Antenna AH90-TP

AH90-TP

$631.35

Tax included.

14 items available

Select quantity

Description

RF Elements 16dBi 90 Degree Frequency Range 5180 - 6000 MHz Asymmetrical Horn TP Antenna AH90-TP

The RF Elements AH90-TP 90° Frequency Range 5180 - 6000 MHz Asymmetrical Horn TP Antenna combines the best of both worlds - high gain of a traditional sector antenna and zero side lobes of a horn. Its radiation pattern is wide in azimuthal and narrow in elevation plane, greatly improving coverage planning options. 90° Asymmetrical Horn TP Antenna exceeds the traditional patch sector antenna thanks to high stability of gain and radiation pattern in the whole band of operation. Outstanding noise rejection and precision of radiation pattern favours 90° Asymmetrical Horn TP antenna for high-density AP clusters, in highly populated areas and dense co-location sites.

HG3-TP-A90 features our revolutionary TwistPort connector, a patent-pending twistand-lock waveguide port. TwistPort is virtually lossless and embodies a complete shift of paradigm in wireless network scalability and convenience of deployment. 90° Asymmetrical Horn TP Antenna supports a wide range of third-party mainstream radios with our TPA TwistPort Adaptor.

Features

30/60/90 degree options available
Compatible with RF Elements TwistPort Adaptors for Cambium, Mimosa, MikroTik and Ubiquiti Radios
No Side Lobes

Details
Manufacturer's Product Code	AH90-TP
Frequency Range	5180 - 6000 MHz
Gain	16 dBi
Azimuth Beam Width	-3 dB H 60° / V 60°
Elevation Beam Width	-3 dB H 16° / V 16°
Azimuth Beam Width	-6 dB H 90° / V 90°
Elevation Beam Width	-6 dB H 25° / V 25°
Front-to-Back Ratio	30 dB
Antenna Connection	TwistPort - Quick Locking Waveguide Port
Antenna Type	Horn
Materials	UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel
Environmental	IP55
Pole Mounting Diameter	40-80 mm
Temperature	-35°C to +55°C (-31°F to +131°F)
Wind Survival	160 km/hour
Wind Load	79/82 N - Front/Side at 160 km/h (100 mi/h)
Mechanical Adjustment	± 20° Elevation, ± 20° Azimuth
Weight	5.3 kg (11.6 lbs) – single unit, 7.2 kg (15.9 lbs) – single unit incl. package
Single Unit	Retail Box: 510 × 420 × 175 mm (20 x 16.5 x 6.8 inch)

Details
Pole Mount	Included

Warranty

1 Year

Brand

RF Elements

Restock ETA (if applicable)
