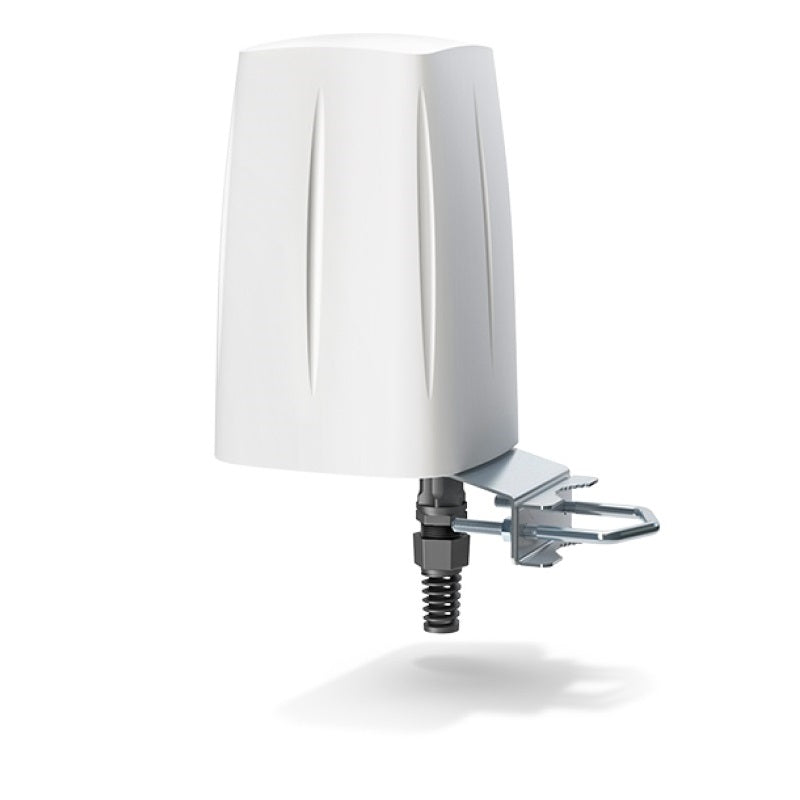

Name: QuSpot AX09S Multiband LTE/4G/GPS Enclosure Omnidirectional antenna for Teltonika RUTX09
Brand: QuWireless
SKU: AX09S
Price: 316.25 NZD
Availability: InStock

QuSpot AX09S Multiband LTE/4G/GPS Enclosure Omnidirectional antenna for Teltonika RUTX09

AX09S

$316.25

Tax included.

1 items available

Select quantity

Description

QuSpot for Teltonika RUTX09 Integrated outdoor multi band LTE omni antennas + GPS antenna + place to install Teltonika RUTX09 (All-in-one)

QuSpot Multiband LTE/4G/GPS Enclosure Omnidirectional antenna for Teltonika RUTX09

Integrated outdoor multi band LTE omni antennas + GPS antenna + place to install Teltonika RUTX09 (All-in-one)

QuSpot omni LTE antenna for Teltonika RUTX09 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded GPS antenna. If you use RUTX09 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Features

IP67 Outdoor antenna
Passive PoE support
Made to fit mount
Easy to Install
Easy Integration with Teltonika RUTX09

Details
Product Code	AX09S
supported LTE/5G bands	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95
Frequency Gain	694 - 960MHz : 2 dBi, 1.7 - 2.2 GHz : 2 dBi, 2.2 - 2.7 GHz : 4 dBi
Beamwidth	360°/35° ±5°
Polarization	Vertical
Impedance	50 Ohm
Materials	ABS, aluminum, PTFE
Connector Type	RJ45
Ingress Protection	IP67
Dimensions	160 x 160 x 240 mm
Weight	1.5Kg
Operating Temperature	From -40°C to 75°C

Technology

Details
Contents	IP67 Rated Enclosure Antenna, Ethernet Connector Gland, Pole mount Included

Warranty

1 Year

Brand

QuWireless

Restock ETA (if applicable)
