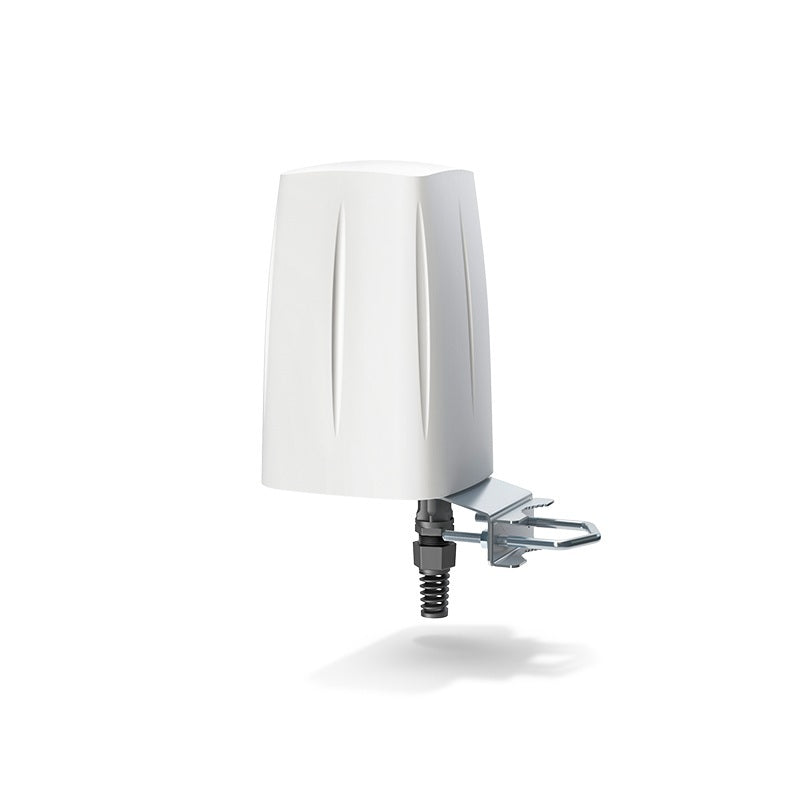

Name: QuSpot A500S 5G 4G LTE Outdoor Enclosure Omni Antenna with Passive PoE splitter for TRB500 Cellular Modem
Brand: QuWireless
SKU: A500S
Price: 496.80 NZD
Availability: InStock

QuSpot A500S 5G 4G LTE Outdoor Enclosure Omni Antenna with Passive PoE splitter for TRB500 Cellular Modem

A500S

$496.80

Tax included.

5 items available

Select quantity

Description

QuSpot A500S 4G/5G Outdoor Enclosure Omni Antenna with Passive PoE splitter for TRB500 Cellular Modem

The QuSpot A500S for TRB500 is an outdoor 617MHz to 6000MHz 4dBi antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G antennas with RUTX50 into a single IP67 enclosure. Such integration allows implementation of new outdoor TRB500 solutions.

QuSpot for TRB500 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.

The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection. NOTE: should only be used with a 24V (or lower voltage) Passive PoE power supply it is not compatible with an 802.3af/at power source!

Features

617MHz to 6000MHz 5G 4dBi Antenna
Omni Directional
IP68
supports Band 71 for 5G
Passive PoE support with Gigabit Splitter

Details
Product Code	A500S
Frequency	617 - 960 MHz, 1.7 - 2.7 GHz, 3.3 - 4.7 GHz, 5.2 - 6.0 GHz
supported LTE bands	1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106
supported 5G bands	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain	617 - 960 MHz : 2 dBi, 1.7 - 2.7 GHz : 4 dBi, 3.3 - 4.7 GHz : 4.5 dBi, 5.2 - 6.0 GHz : 2 dBi
VSWR	<2.00, max <2.50
Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ohm
Connectors	4 x SMA Male
Dimensions	160mm x 189mm x 240mm, 1.5 kg
Materials	ABS, aluminum, PTFE
Connector type	RJ45
POE TYPE	Passive PoE up to 24V, not compatible with an 802.3af/at power source!
POE IN Mode	Mode type: B
Ingress protection	IP68
Operating temperature	From -40°C to 75°C
Mast diameter	25-66 mm
Enclosure Recommended Tightening Torque	0.5 - 0.7 Nm

Technology

Details
Contents	IP67 Rated Enclosure antenna, Ethernet Connector Gland, Pole mount brackets, QuPoE PAS-FP splitter, 8mm wrench

Warranty

1 Year

Brand

QuWireless

Restock ETA (if applicable)
