Name: QuMax 4G/LTE, WiFi & GPS Outdoor Enclosure Panel Antenna for RUTX12
Brand: QuWireless
SKU: AX12M
Price: 397.90 NZD
Availability: InStock

QuMax 4G/LTE, WiFi & GPS Outdoor Enclosure Panel Antenna for RUTX12

AX12M

$397.90

Tax included.

15 items available

Select quantity

Description

QuMax 4G/LTE, WiFi & GPS Outdoor Enclosure Panel Antenna for RUTX12 - Perfect for a High Speed Hotspot

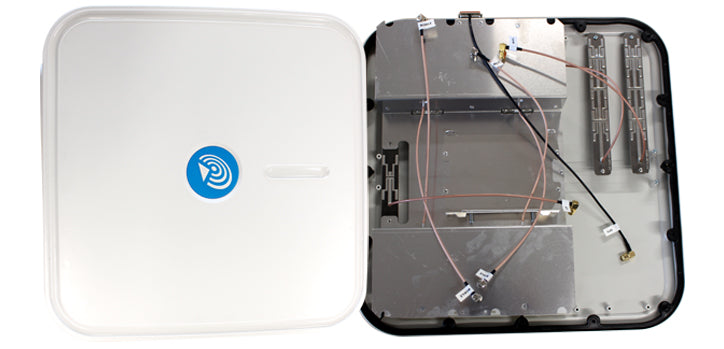

QuMax 4G/LTE, WiFi & GPS Outdoor Enclosure Panel Antenna for RUTX12 - An Integrated MIMO 4x4 multi-band LTE directional antenna + Wi-Fi omni antennas + GPS antenna + Bluetooth antenna + a place to install Teltonika RUTX12 (All-in-one)

The QuMax AX12M for the Teltonika RUTX12 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots etc. It also has embedded Wi-Fi dual band 2.4 & 5 GHz omni antennas, GPS antenna and Bluetooth antenna. It is designed to have Teltonika RUTX12 router installed inside an IP67 enclosure. If you use RUTX12 with QuMax antenna, you get an integrated complete solution with an embedded router with multi band antennas in one enclosure.

Features

IP67 Outdoor antenna
Passive PoE support
Made to fit mount
Easy to Install
Easy Integration with the Teltonika RUTX12

Details
Product Code	AX12M
supported LTE bands	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 2305-2360
Frequency Gain	0.694-0.96 GHz: 4dBi, 1.7 - 2.2 GHz: 5dBi, 2.2 - 2.7 GHz: 6dBi
Beamwidth	90°/90° +/- 30°
Polarization	Vertical
Impedance	50 ?
WiFi Frequencies	2.40-2.50 GHz (6dBi), 4.70 - 6.00 GHz (7dBi)
Materials	ABS, aluminum, PTFE, Fiberglass
Ingress Protection	IP67
Dimensions	272 x 276 x 96 mm
Weight	1.8 kg
Operating Temperature	From -40°C to 75°C

Technology

Details
Contents	IP67 Rated Enclosure, Ethernet Connector Gland, Pole mount Included

Warranty

1 Year

Brand

QuWireless

Restock ETA (if applicable)

Product Details

Specifications

QuWireless
HeadingQuMax 4G/LTE, WiFi & GPS Outdoor Enclosure Panel Antenna for RUTX12

Description

QuMax 4G/LTE, WiFi & GPS Outdoor Enclosure Panel Antenna for RUTX12 - Perfect for a High Speed Hotspot

Features

IP67 Outdoor antenna
Passive PoE support
Made to fit mount
Easy to Install
Easy Integration with the Teltonika RUTX12

Details
Product Code	AX12M
supported LTE bands	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 2305-2360
Frequency Gain	0.694-0.96 GHz: 4dBi, 1.7 - 2.2 GHz: 5dBi, 2.2 - 2.7 GHz: 6dBi
Beamwidth	90°/90° +/- 30°
Polarization	Vertical
Impedance	50 ?
WiFi Frequencies	2.40-2.50 GHz (6dBi), 4.70 - 6.00 GHz (7dBi)
Materials	ABS, aluminum, PTFE, Fiberglass
Ingress Protection	IP67
Dimensions	272 x 276 x 96 mm
Weight	1.8 kg
Operating Temperature	From -40°C to 75°C
