Name: PT4660 - Amphenol LTW Inline Screw-in Cable Joiner 3P 6.6-8.5MM IP68
Brand: Digitech
SKU: PT4660
Price: 20.9 NZD
Availability: OutOfStock

3P inline screw-in cable joiner, black with yellow seal, IP68 rating

3P inline screw-in cable joiner with attached cable, black and yellow, IP68

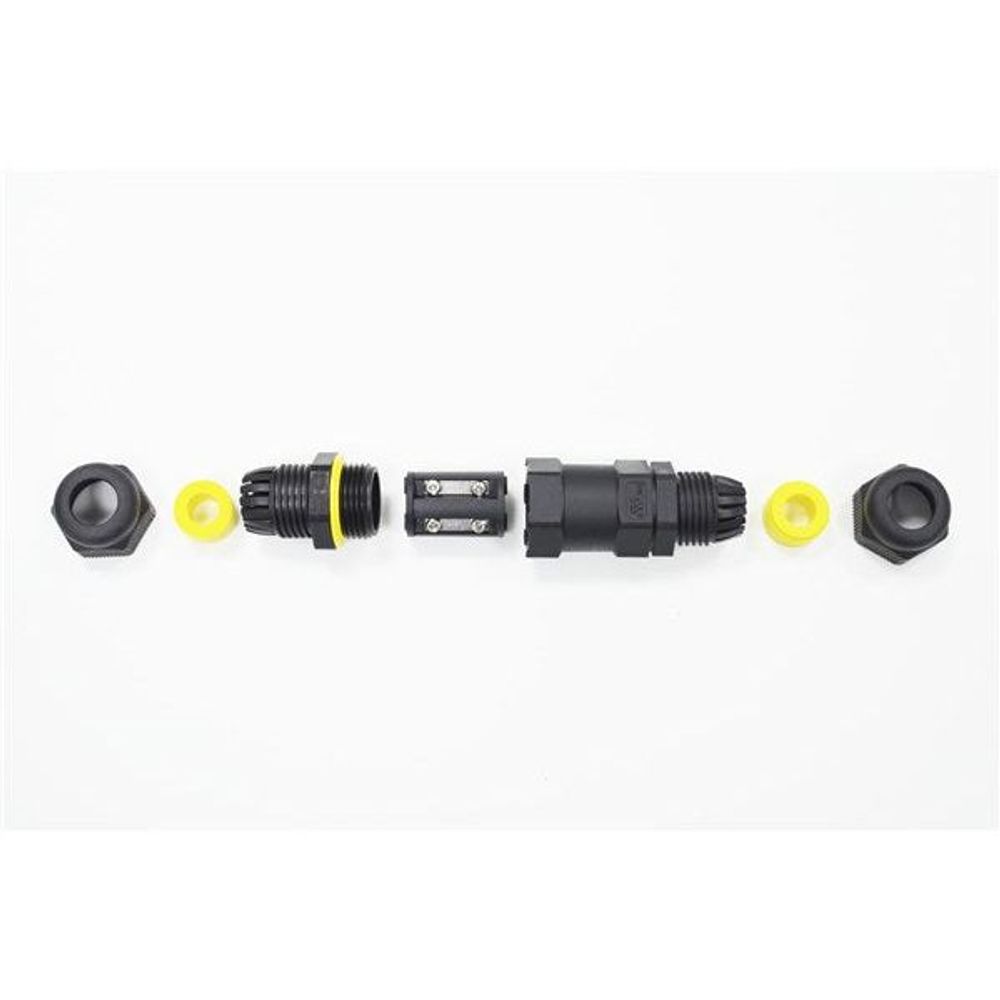

3P inline screw-in cable joiner parts kit: black body, yellow seals, nuts

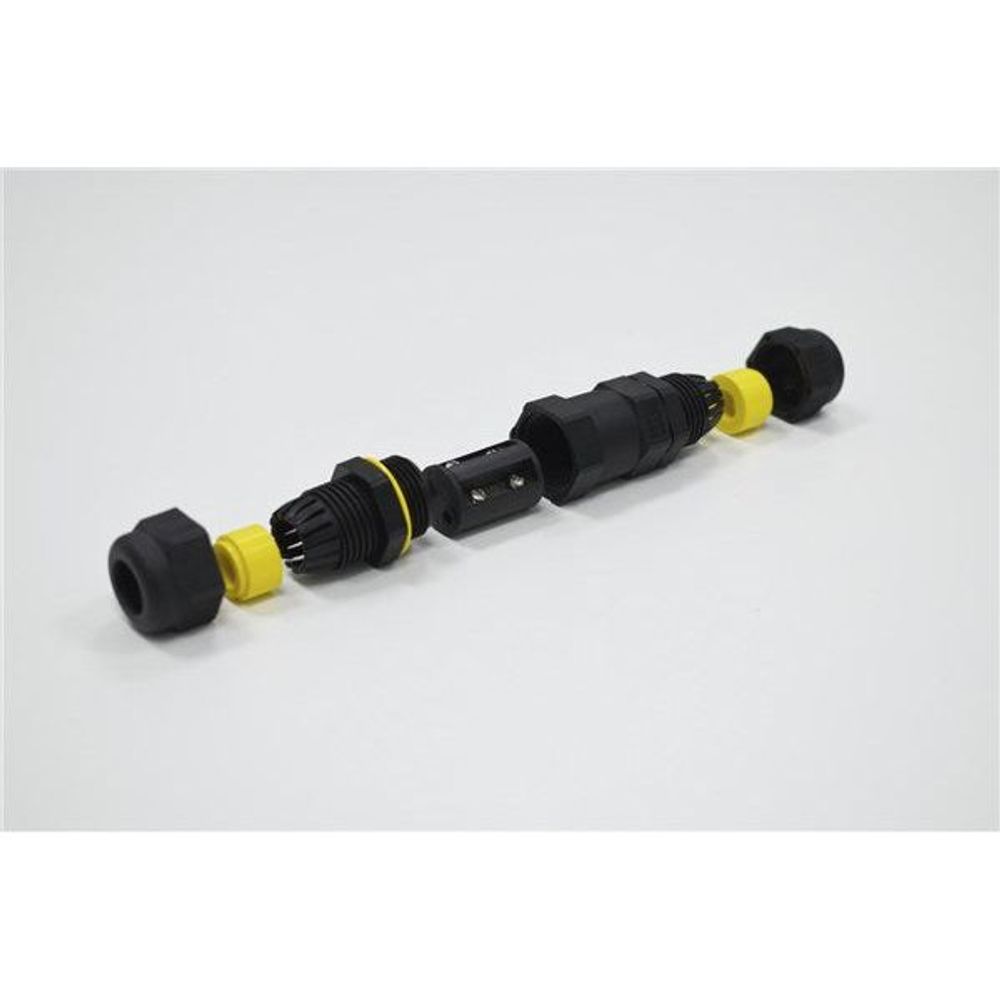

3P inline screw-in cable joiner with exposed contacts, black and yellow sealing

PT4660 - Amphenol LTW Inline Screw-in Cable Joiner 3P 6.6-8.5MM IP68

PT4660

$20.90

Tax included.

Out of stock

Select quantity

Description

PT4660

Newly developed Cable Joiner from Amphenol LTW, UL FICX series which is compliant with UL2238 standard. The UL FICX is designed with screw terminal termination, providing quick and practical field assembly. It is IP68 rated and equipped with UV resistant materials, that can meet the needs in LED lighting, CCTV security, Solar and Marine applications. Great for environments where reliable interconnections are required.

Specifications:

Easy grip design, quick and easy Installation

Number of poles: 3

Current rating: 20A

Voltage rating: 600VAC/DC

Wire section range: 18AWG to 12AWG (0.75mm² to 3.5mm²)

Cable Outer Diameter: 6.5 to 8.5mm

Operating temperature range from -40°C to 105°C

UL 2238, file number: E318730 / CSA C22.2 No. 182.3, file number: E318730

Specifications

Colour : Black

Alternates available : false

Sub-section colour : Yellow

AC Voltage rating : 600V

DC current rating : 20A

DC Voltage : 600V

Operating Temperature : -40°C, 105°C

Packaged Volume : 0.1l

Packaged Weight : 0.04kg

Packaged Length : 7cm

Packaged Width : 6cm

Packaged Height : 2.5cm

Device : Plug and Socket Set

Attachment Method : Screw Terminals

Availability : Stocked item
