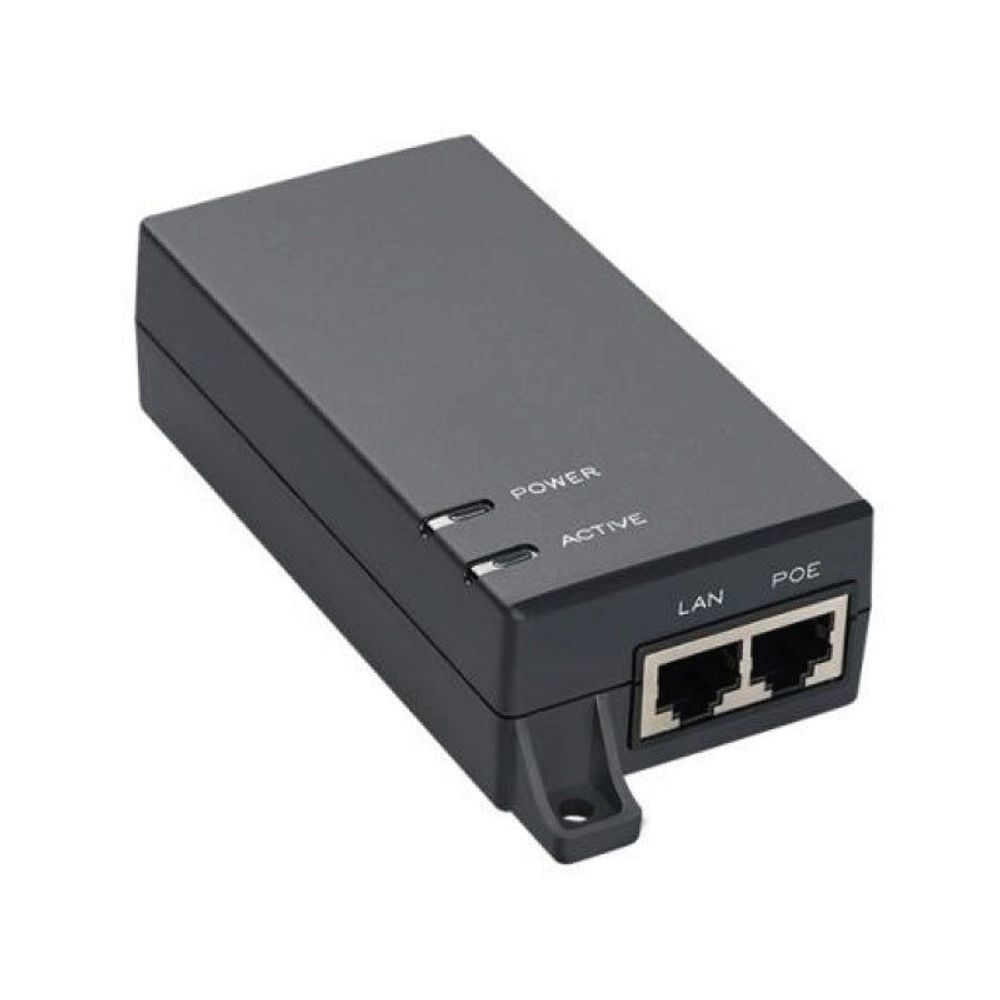

Name: PT-PSE100GF - 48V DC 15.4 Watt 802.3af Gigabit Power over Ethernet Power Supply
Brand: Tech Supply Shed
SKU: PT-PSE100GF
Price: 34.50 NZD
Availability: OutOfStock

PT-PSE100GF - 48V DC 15.4 Watt 802.3af Gigabit Power over Ethernet Power Supply

PT-PSE100GF

$34.50

Tax included.

Out of stock

Select quantity

Description

48V DC 15.4 Watt 802.3af Gigabit Power over Ethernet Power Supply. The PT-PSE100GF is a single port PoE Injector. It provides 48Vdc, 0.32A power for remote PDs over 2-pairs. It supports both 10/100 Base-T and Gigabit device. It works for 15.4W PoE PDs, such as wireless APs, Network cameras, IP Phones and other power Ethernet terminals. It complies to IEEE802.3af PoE standard. Suitable for Grandstream Access Points GWN Series

Features

Output: 48Vdc 320mA 15.4W 802.3af
Transmission Rate: 10/100/1000Mbps
Power Pin: 4/5(+),7/8(-)

Details
Manufacturer's Product Code	PT-PSE100GF
Standards	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, support IEEE802.3af PoE standard terminals, RoHS Compliance, WEEE Compliance
Input	100-240Vac 0.5A 50/60HZ
Output	48Vdc 320mA 802.3af
Power Pins	4/5(+), 7/8(-)
Date Speed	10/100/1000Mbps
Operating Temperature	0? to 40?
Operating Humidity	20% to 80%, non-condensation
Storage Temperature	-20? to 70?
Storage Humidity	10% to 90%, non-condensation
Operating Altitude	up to 2000meters
AC Surge Protection	1.0KV (5P/5N), L-N 1.2/50 (8/20) Tr/Th us, 2.0KV (5P/5N), L-PE 1.2/50 (8/20) Tr/Th us, N -PE
Case	Plastic
Color	Black
Mounting	Wall-mounted
IP Rated	IP40
Size	134mm X 56mm X 33mm
Weight	175g
Safety Approvals	CE, FCC
EMI	FCC CFR47 Part 15, EN55024, EN55032
EMS	IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air), IEC61000-4-3(RS) 10V/m(80MHz~2GHz), IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV, IEC61000-4-5(Surge) Power Port: ±1kV/DM, ±2kV/CM, IEC61000-4-6(CS) 10V(150kHz~80MHz)
Immunity	IEC60068-2-6(Vibration), IEC60068-2-27(Impact), IEC60068-2-32(Free Fall)
LED Indicator	Power Indicator: Green, PoE Load Indicator: Green

Details
Power Cord	3 Pin IEC Lead
Warranty	Standard 12 Month RTB
