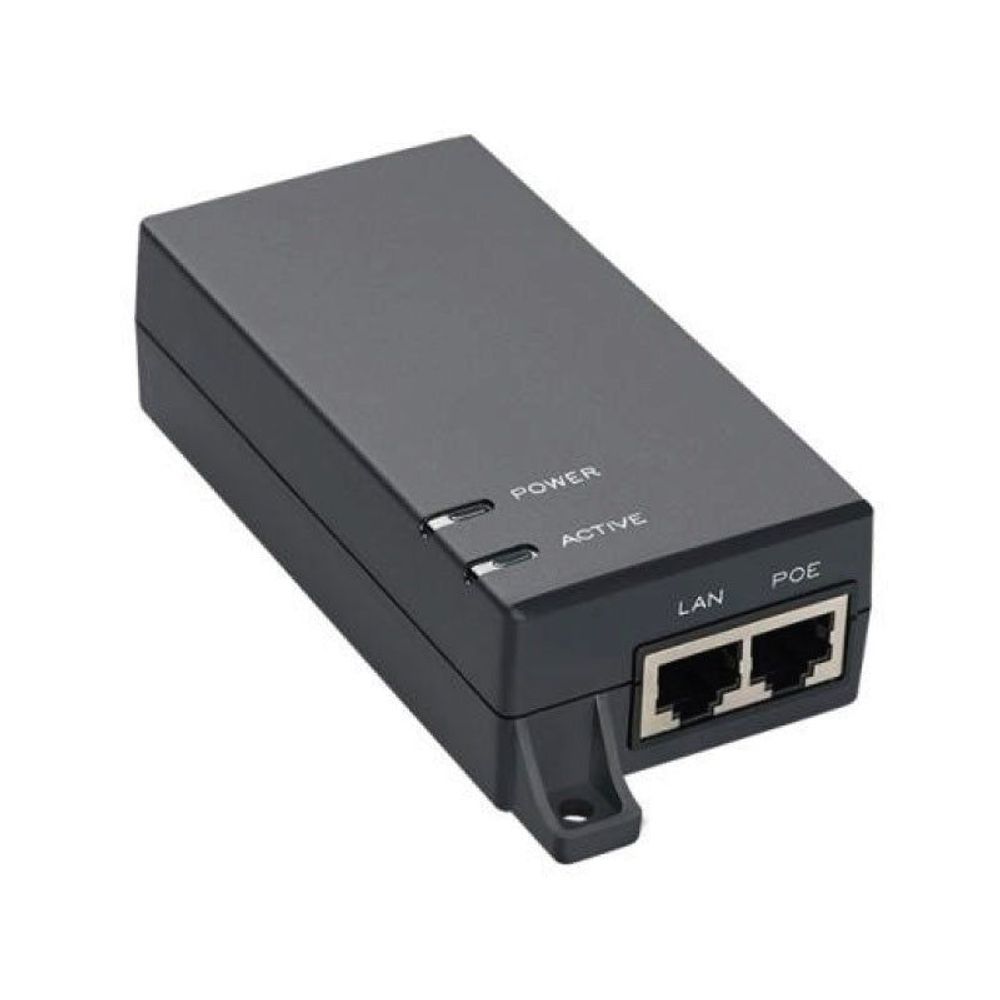

Name: PT-PSE100G - 48V DC 30 Watt Gigabit Passive Power over Ethernet Supply
Brand: Tech Supply Shed
SKU: PT-PSE100G
Price: 34.50 NZD
Availability: OutOfStock

PT-PSE100G - 48V DC 30 Watt Gigabit Passive Power over Ethernet Supply

PT-PSE100G

$34.50

Tax included.

Out of stock

Select quantity

Description

48V 30 Watt Gigabit Passive Power over Ethernet Supply. The PT-PSE100G PoE Injector is a single port PoE Injector that is compatible with IEEE 802.at standard. Recently upgraded to a smaller form factor but still comes with the industry leading PoE technology that enables 30W of PoE over standard Cat5 or better cables to easily upgrade IP surveillance devices, WLAN APs and other Ethernet devices.

Features

Output: 48Vdc 630mA 30W
Transmission Rate: 10/100/1000Mbps
Power Pin:4/5(+),7/8(-)

Details
Manufacturer's Product Code	PT-PSE100G
Standards	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, support terminal equipment with IEEE802.3af/at, RoHS Compliance, WEEE Compliance
Input	100-240Vac 1.0A 50/60Hz
Output	48Vdc 630mA
Power Pins	4/5(+), 7/8(-)
Data Speed	10/100/1000Mbps
Operating Temperature	0? to 40?
Operating Humidity	20% to 80%, non-condensation
Storage Temperature	-20? to 70?
Storage Humidity	10% to 90%, non-condensation
Operating Altitude	up to 2000meters
AC Surge Protection	1.0KV (5P/5N), L-N 1.2/50 (8/20) Tr/Th us, 2.0KV (5P/5N), L-PE 1.2/50 (8/20) Tr/Th us, N -PE
Case	Plastic
Colour	Black
Mounting:	Wall-mounted
IP Rated	IP40
Size	134mm X 56mm X 33mm
Weight	175g
Safety Approvals	CE, FCC
EMI	FCC CFR47 Part 15, EN55024, EN55032
EMS	IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air), IEC61000-4-3(RS) 10V/m(80MHz~2GHz), IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV, IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM, IEC61000-4-6(CS) 10V(150kHz~80MHz)
Immunity	IEC60068-2-6(Vibration), IEC60068-2-27(Impact), IEC60068-2-32(Free Fall)
LED Indicator	Power Indicator: Green, PoE Load Indicator: Green

Details
Power Cord	3 Pin IEC Lead
Warranty	Standard 12 Month RTB

Specifications

Details
Manufacturer's Product Code	PT-PSE100G
Standards	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, support terminal equipment with IEEE802.3af/at, RoHS Compliance, WEEE Compliance
Input	100-240Vac 1.0A 50/60Hz
Output	48Vdc 630mA
Power Pins	4/5(+), 7/8(-)
Data Speed	10/100/1000Mbps
Operating Temperature	0? to 40?
Operating Humidity	20% to 80%, non-condensation
Storage Temperature	-20? to 70?
Storage Humidity	10% to 90%, non-condensation
Operating Altitude	up to 2000meters
AC Surge Protection	1.0KV (5P/5N), L-N 1.2/50 (8/20) Tr/Th us, 2.0KV (5P/5N), L-PE 1.2/50 (8/20) Tr/Th us, N -PE
Case	Plastic
Colour	Black
Mounting:	Wall-mounted
IP Rated	IP40
Size	134mm X 56mm X 33mm
Weight	175g
Safety Approvals	CE, FCC
EMI	FCC CFR47 Part 15, EN55024, EN55032
EMS	IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air), IEC61000-4-3(RS) 10V/m(80MHz~2GHz), IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV, IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM, IEC61000-4-6(CS) 10V(150kHz~80MHz)
Immunity	IEC60068-2-6(Vibration), IEC60068-2-27(Impact), IEC60068-2-32(Free Fall)
LED Indicator	Power Indicator: Green, PoE Load Indicator: Green
